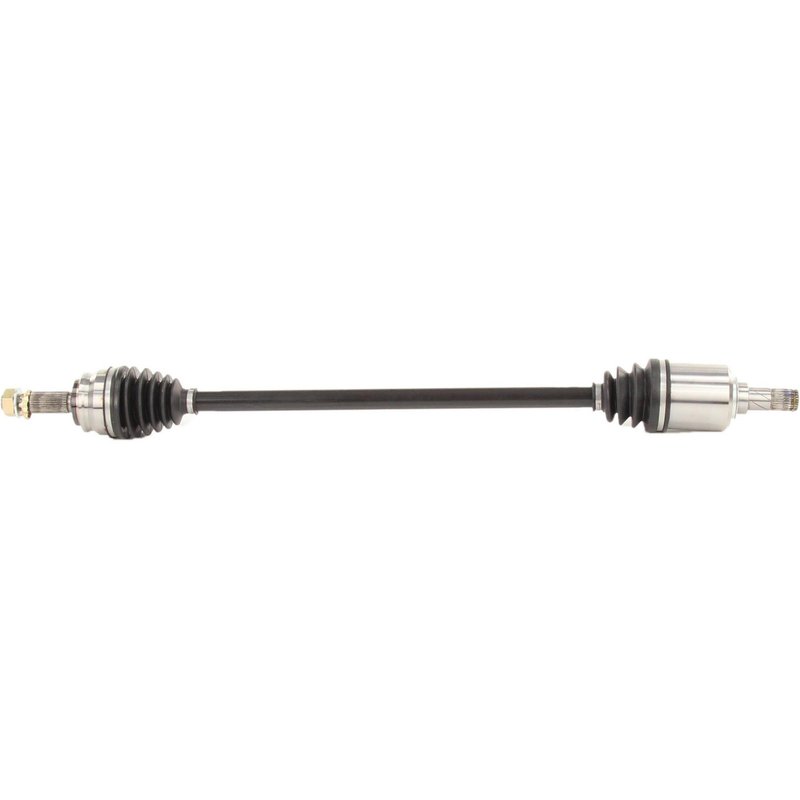

TrakMotive CH-8330 CV Axle Shaft - Front Right
OE Quality 60-Day Returns
TrakMotive
 AAR CV Axle Shaft

TrakMotive CH-8330 CV Axle Shaft - Front Right

Brand TrakMotive CH-8330
Position Front Right
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 0.59
Axle Nut Height (mm) 15
Axle Nut Hex Size (in) 1.26
Axle Nut Hex Size (mm) 32
Axle Nut Included Yes
Axle Nut Length (in) 1.45
Axle Nut Length (mm) 36.95
Axle Nut Locking Type Standard
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
New Or Remanufactured New
Number Of Inboard Splines 27
Number Of Outboard Splines 28
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 37.64
Overall Compressed Length (mm) 956
Product line AAR CV Axle Shaft
Fits Jeep and Dodge · 41 vehicles

New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.

Neoprene boot material. Helps resist wear while keeping the joint protected.

Includes axle nut. Conveniently supplied with the hardware needed for installation.

Cross-references TrakMotive CH-8330, 5105772AA and 5105772AB for the same application. See all 9.

$133.63Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $133.63
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

TrakMotive CH-8330 Front Right CV Axle Shaft

TrakMotive CH-8330 is a new front right CV axle shaft for select Jeep Compass, Jeep Patriot, and Dodge Caliber applications. It is built with a neoprene boot, spline-style shaft connections, and includes the axle nut for a direct replacement on supported vehicles.

Key Features

  • New CV axle shaft for the front right position
  • Neoprene boot material for drivetrain protection
  • Inboard joint type: male with 27 inboard splines
  • Outboard joint type: conventional with 28 outboard splines
  • Overall compressed length: 37.64 in. (956 mm)
  • Axle nut included; M22 x 1.5 thread, 32 mm hex size
  • No ABS tone ring included
  • TrakMotive AAR CV Axle Shaft line for OE-style replacement applications

Product Details

This TrakMotive CH-8330 CV axle shaft is engineered for front right driveline service on 2007-2017 Jeep Compass, 2007-2014 Jeep Patriot, and 2007-2012 Dodge Caliber applications listed below. It is a direct-fit replacement for vehicles using the specified one-piece axle design or OE AAR design notes, and it cross-references Monroe Shocks & Struts 172286 and 182286 for the same application. The TrakMotive AAR CV Axle Shaft product line focuses on application-specific fitment and OE-style geometry for common compact SUV and crossover driveline repairs.

What It Helps Repair

  • Clicking or popping during turns from a worn front CV joint
  • Vibration or shudder under acceleration from axle wear
  • Torn boot conditions that can lead to grease loss and joint contamination
  • Noise from a damaged or loose front right axle assembly
  • Driveline issues on Jeep Compass, Jeep Patriot, and Dodge Caliber front right applications

Installation Notes and Fitment

Fits 2017 Jeep Compass, front right, updated design; classic style, vertical rear door handle; with 1 piece axle design. Fits 2015-2016 Jeep Compass, front right, updated design; with 1 piece axle design. Fits 2012-2014 Jeep Compass, front right, OE AAR design. Fits 2007-2011 Jeep Compass, front right, updated design; with 1 piece axle design. Fits 2014-2017 Jeep Patriot, front right, updated design; with 1 piece axle design. Fits 2012-2013 Jeep Patriot, front right, OE AAR design. Fits 2007-2011 Jeep Patriot, front right, updated design; with 1 piece axle design. Fits 2008-2012 Dodge Caliber, front right. Fits 2007-2012 Dodge Caliber, front right, updated design; with 1 piece axle design.

Verify spline count, axle length, and axle nut specifications before installation. The axle nut is included and uses an M22 x 1.5 thread with a 32 mm hex size. No ABS tone ring is included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.

Quality Assurance

TrakMotive lists this CH-8330 axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.

Related reading

This part fits 41 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeTransmissionLitersCylindersPositionNotes
2017JeepCompass—FWDAutomatic2.0LL4Front RightUpdated Design; classic style, vertical rear door handle; W/ 1 piece axle design; AAR CV Axle Shaft
2017JeepCompass—FWDAutomatic CVT2.0LL4Front RightUpdated Design; classic style, vertical rear door handle; W/ 1 piece axle design; AAR CV Axle Shaft
2017JeepPatriotSportFWDAutomatic2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2017JeepPatriot—FWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2016JeepCompass—FWDAutomatic2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2016JeepCompass—FWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2016JeepPatriot—FWDAutomatic2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2016JeepPatriot—FWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2015JeepCompass—FWDAutomatic2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2015JeepCompass—FWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2015JeepPatriot—FWDAutomatic2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2015JeepPatriot—FWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2014JeepCompass—FWDAutomatic CVT2.0LL4Front RightOE AAR design; AAR CV Axle Shaft
2014JeepPatriot—FWDAutomatic2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2014JeepPatriot—FWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2013JeepCompass—FWDAutomatic CVT2.0LL4Front RightOE AAR design; AAR CV Axle Shaft
2013JeepPatriot—FWDAutomatic CVT2.0LL4Front RightOE AAR design; AAR CV Axle Shaft
2012DodgeCaliber—FWD—2.4LL4Front RightAAR CV Axle Shaft
2012DodgeCaliber——Automatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2012JeepCompass—FWDAutomatic CVT2.0LL4Front RightOE AAR design; AAR CV Axle Shaft
2012JeepPatriot—FWDAutomatic CVT2.0LL4Front RightOE AAR design; AAR CV Axle Shaft
2011DodgeCaliber—FWDAutomatic CVT2.4LL4Front RightAAR CV Axle Shaft
2011DodgeCaliber——Automatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2011JeepCompass—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2011JeepPatriotSportFWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2011JeepPatriotLatitudeFWDAutomatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2010DodgeCaliber—FWDAutomatic CVT2.4LL4Front RightAAR CV Axle Shaft
2010DodgeCaliber——Automatic CVT2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2010JeepCompass—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2010JeepPatriot—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2009DodgeCaliberSXTFWD—2.4LL4Front RightAAR CV Axle Shaft
2009DodgeCaliber———2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2009JeepCompass—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2009JeepPatriot—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2008DodgeCaliber—FWD—2.4LL4Front RightAAR CV Axle Shaft
2008DodgeCaliber———2.0LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2008JeepCompass—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2008JeepPatriot—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2007DodgeCaliberSXT——2.4LL4Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2007JeepCompass—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
2007JeepPatriot—FWDAutomatic CVT——Front RightUpdated Design; W/ 1 piece axle design; AAR CV Axle Shaft
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — CH-83305105772AA5105772AB5105772AC5105772AD5105772AE5105772AF5105772AGRL105772AG
