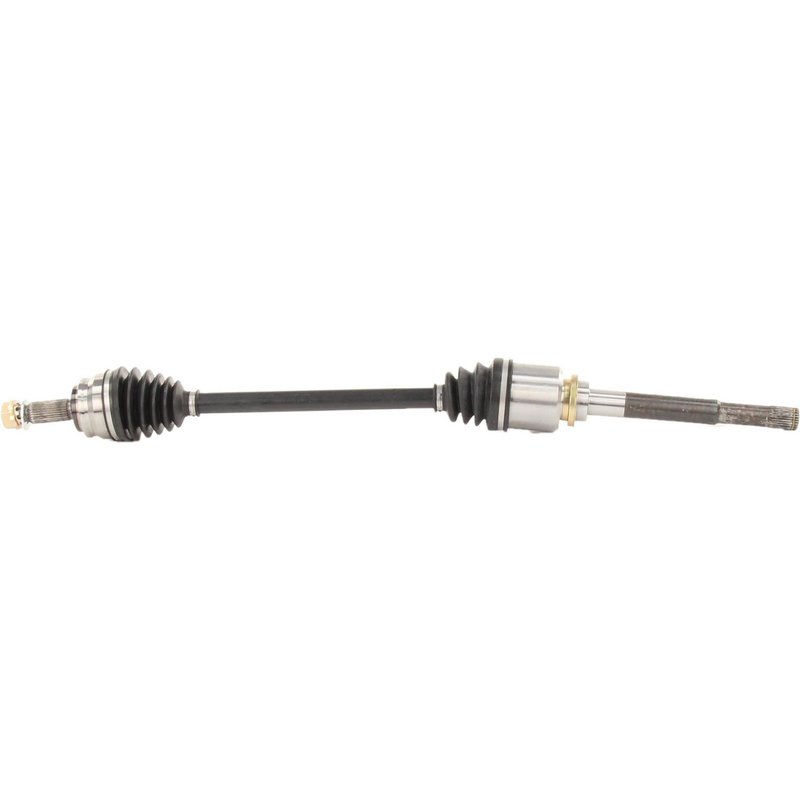

TrakMotive CH-8332 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8332 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.59 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.89 |
| Overall Compressed Length (mm) | 962.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep and Dodge · 30 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied for a more complete installation.
Cross-references TrakMotive CH-8332, 5273438AA and 5273438AB for the same application. See all 9.
TrakMotive CH-8332 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft, part number CH-8332, is a new front right driveline replacement for select Jeep Compass, Jeep Patriot, and Dodge Caliber applications. It is built with a neoprene boot, spline-style shaft connections, and the correct axle nut hardware specified for the application.
Key Features
- New CV axle shaft for front right installation
- Neoprene boot material for driveline protection
- Inboard joint type: male
- Inboard shaft connection: spline, 27 splines
- Outboard joint type: conventional
- Outboard shaft connection: spline, 28 splines
- Axle nut included; M22 x 1.5 thread, 32 mm hex size
- No ABS tone ring included
- Overall compressed length: 37.89 in. (962.5 mm)
Product Details
TrakMotive CH-8332 is part of the AAR CV Axle Shaft line, a replacement driveline offering for vehicles that need a direct-fit front right axle assembly. This axle is specified for 2007-2017 Jeep Patriot front right, 2007-2016 Jeep Compass front right, 2017 Jeep Compass front right with updated design and classic style vertical rear door handle, 2017 Jeep Patriot front right, and 2008 Dodge Caliber front right with VIN K (8th digit) and updated design. The axle nut is included, and the unit is configured for non-ABS applications unless otherwise noted by the vehicle listing.
This part cross-references OE numbers 5273438AA and 5273438AB for the same application. TrakMotive CH-8332 is also listed under interchange part number RL273438AG.
Common Repair Uses
- Restoring front right axle function after CV joint wear
- Replacing a damaged or torn CV boot assembly
- Correcting clicking, vibration, or driveline noise during turns
- Addressing axle shaft play or spline wear
- Replacing a bent or failed front axle on Jeep Compass, Jeep Patriot, or Dodge Caliber models
Installation Notes
Verify year, model, position, and vehicle configuration before installation. This axle is for front right applications only and uses a 32 mm axle nut with M22 x 1.5 thread. Confirm ABS requirements and note that no ABS tone ring is included. Check spline counts, compressed length, and hub engagement against the original part before assembly.
Quality Assurance
TrakMotive identifies this AAR CV Axle Shaft as a new replacement component and states ISO 9001:1007 and TS 16949:2009 certification. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2017 | Jeep | Compass | 4WD | Automatic CVT | — | — | Front Right | Updated Design; classic style, vertical rear door handle; AAR CV Axle Shaft |
| 2017 | Jeep | Patriot | 4WD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Jeep | Patriot | 4WD | Automatic CVT | — | — | Front Right | AAR CV Axle Shaft |
| 2016 | Jeep | Compass | 4WD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Compass | 4WD | Automatic CVT | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Patriot | 4WD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Patriot | 4WD | Automatic CVT | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Compass | 4WD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Compass | 4WD | Automatic CVT | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Patriot | 4WD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Patriot | 4WD | Automatic CVT | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Jeep | Compass | 4WD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Jeep | Compass | 4WD | Automatic CVT | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Jeep | Patriot | 4WD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Jeep | Patriot | 4WD | Automatic CVT | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Jeep | Compass | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Jeep | Patriot | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Jeep | Compass | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Jeep | Patriot | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Jeep | Compass | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Jeep | Patriot | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Jeep | Compass | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Jeep | Patriot | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Jeep | Compass | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Jeep | Patriot | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Dodge | Caliber | AWD | Automatic CVT | 2.4L | L4 | Front Right | VIN K (8th Digit); Updated Design; AAR CV Axle Shaft |
| 2008 | Jeep | Compass | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Jeep | Patriot | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Jeep | Compass | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Jeep | Patriot | 4WD | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
