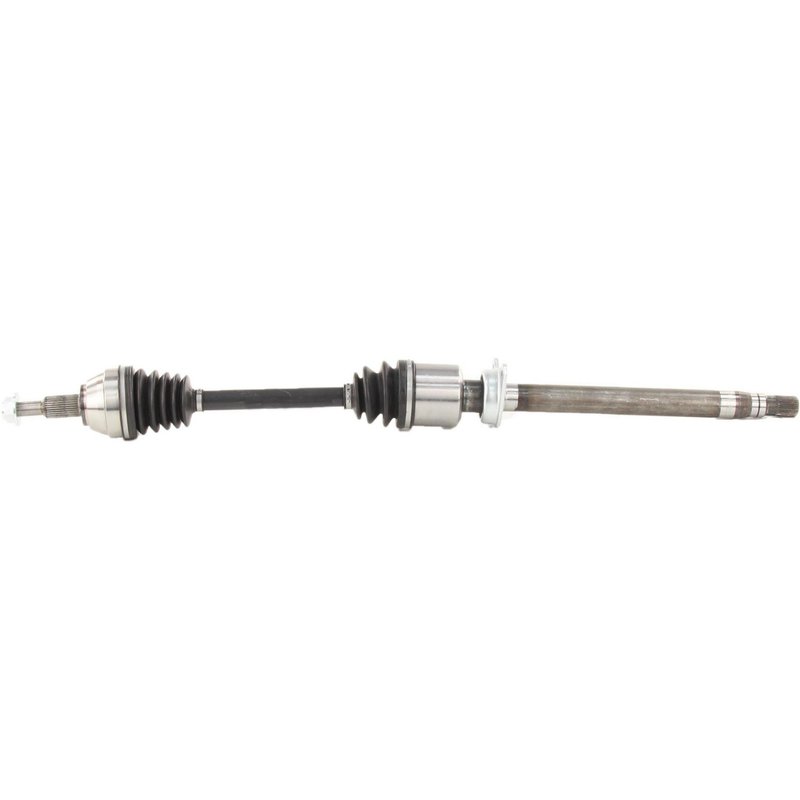

TrakMotive CH-8351 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8351 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.83 |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 42.95 |
| Overall Compressed Length (mm) | 1091 |
| Product line | AAR CV Axle Shaft |
| Fits | Chrysler · 9 vehicles |
New axle shaft. Built with neoprene boot material and spline connections for dependable driveline operation.
Includes axle nut. Comes with a self-locking hex nut for a complete installation.
ISO certified manufacturing. Produced by a company certified to ISO 9001 and TS 16949 standards.
Cross-references TrakMotive CH-8351, 5106254AA and 5106254AB for the same application. See all 7.
TrakMotive CH-8351 CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-8351 is a new front right driveline replacement for select Chrysler applications. It is built with a neoprene boot, spline-style shaft connections, and a self-lock axle nut to support OE-style service on the Chrysler Pacifica, Grand Caravan, and Voyager.
Key Features
- New CV axle shaft for the front right position
- AAR CV Axle Shaft design for OE-style fitment
- Neoprene boot material for drivetrain protection
- Male inboard joint with spline connection
- Conventional outboard joint with spline connection
- Includes axle nut with M22 x 1.5 thread size
- No ABS tone ring included
- Overall compressed length: 42.95 in. (1091 mm)
- Inboard splines: 30; outboard splines: 32
Detailed Description
TrakMotive CH-8351 is a direct replacement CV axle shaft for 2017-2022 Chrysler Pacifica front right, 2021 Chrysler Grand Caravan front right, and 2020-2021 Chrysler Voyager front right applications. The AAR CV axle shaft configuration follows the OE design used on these vehicles, making it a practical choice when replacing a worn or damaged front axle assembly. This part cross-references OE numbers such as 5106254AA and 68494386AA for the same application. The CH-8351 part number is also useful when verifying the correct axle for Chrysler Pacifica, Grand Caravan, and Voyager driveline service.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain under acceleration
- Torn or deteriorated axle boot conditions
- Grease leakage around the axle assembly
- Front right axle wear on Chrysler Pacifica, Grand Caravan, or Voyager models
Installation Notes and Tips
Confirm front right position, spline count, axle length, and axle nut thread size before installation. This axle uses a hex axle nut with self-lock design and includes the axle nut specified in the product data. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Verify the OE AAR design and match the vehicle year and model exactly before service.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new component and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this axle shaft.
| Year | Make | Model | Drive Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Chrysler | Pacifica | FWD | GAS | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Chrysler | Grand Caravan | — | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Chrysler | Pacifica | FWD | GAS | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Chrysler | Voyager | — | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Chrysler | Pacifica | FWD | GAS | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Chrysler | Voyager | — | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Chrysler | Pacifica | — | GAS | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Chrysler | Pacifica | — | GAS | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Chrysler | Pacifica | — | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
