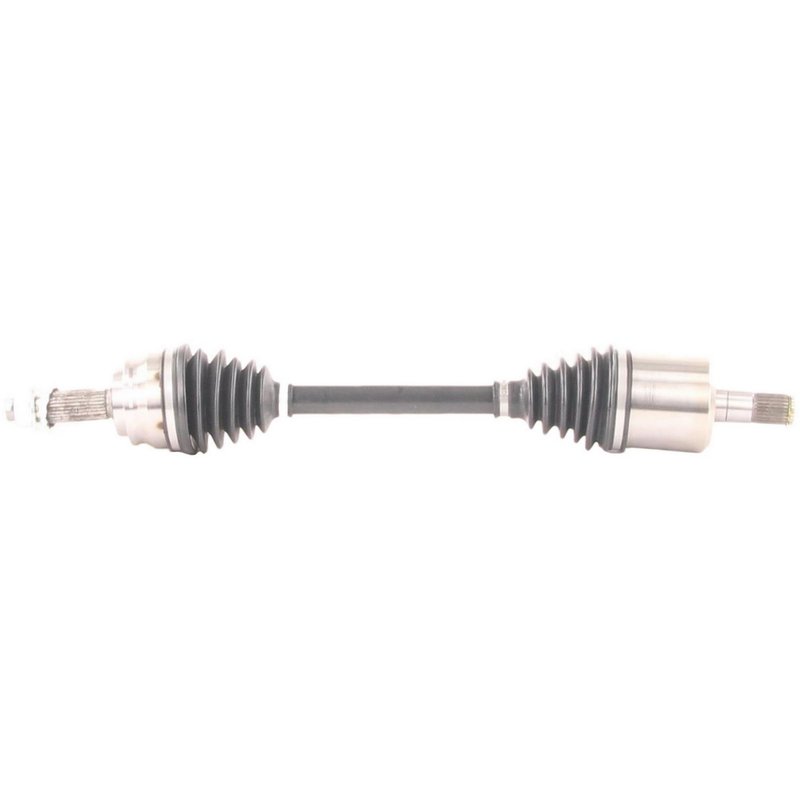

TrakMotive CH-8353 CV Axle Shaft - Front Left

TrakMotive CH-8353 CV Axle Shaft

The TrakMotive AAR CV Axle Shaft CH-8353 is a new front left driveline replacement for select Jeep Compass applications. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint to support smooth power transfer in the front axle assembly.

Compatible with 2014-2016 Jeep Compass, front left, and 2017 Jeep Compass, front left, classic style with vertical rear door handle. This TrakMotive CH-8353 axle shaft is a direct-fit option for vehicles that need a replacement CV axle on the driver side front position.

Key Features

• Brand: TrakMotive AAR CV Axle Shaft
• Part number: CH-8353
• New CV axle shaft for front left applications
• Neoprene boot material
• Inboard joint type: male
• Inboard shaft connection: spline
• Outboard joint type: conventional
• Outboard shaft connection: spline
• Axle nut included with standard locking type
• Axle nut thread size: M22 x 1.5
• Overall compressed length: 24.37 in. (619 mm)
• ISO 9001:1007 and TS 16949:2009 certified company

Product Details

The CH-8353 is part of TrakMotive’s AAR CV Axle Shaft line, a product line focused on replacement driveline components for passenger vehicles. This axle shaft is specified with 27 inboard splines and 28 outboard splines, along with a 32 mm axle nut hex size and a 15 mm axle nut height. It does not include an ABS tone ring, and ABS axles are stated to fit non-ABS applications unless otherwise noted.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Use CH-8353 when replacing a worn or damaged front left CV axle on a Jeep Compass with the listed fitment.

Common Problems This Part Can Address

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder from a damaged axle shaft
• Grease leakage from a torn or deteriorated boot
• Front-wheel drive torque transfer issues caused by axle wear
• Noise or looseness at the front left driveline connection

Installation Notes and Tips

Verify spline count, axle nut thread size, and compressed length before installation. Confirm whether the vehicle is the 2017 Jeep Compass classic style with vertical rear door handle, since that fitment is listed separately from 2014-2016 models. Inspect related hub, seal, and suspension components during replacement to help avoid repeat driveline noise.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also identifies its facility as ISO 9001:1007 and TS 16949:2009 certified, supporting controlled production and quality management practices.
