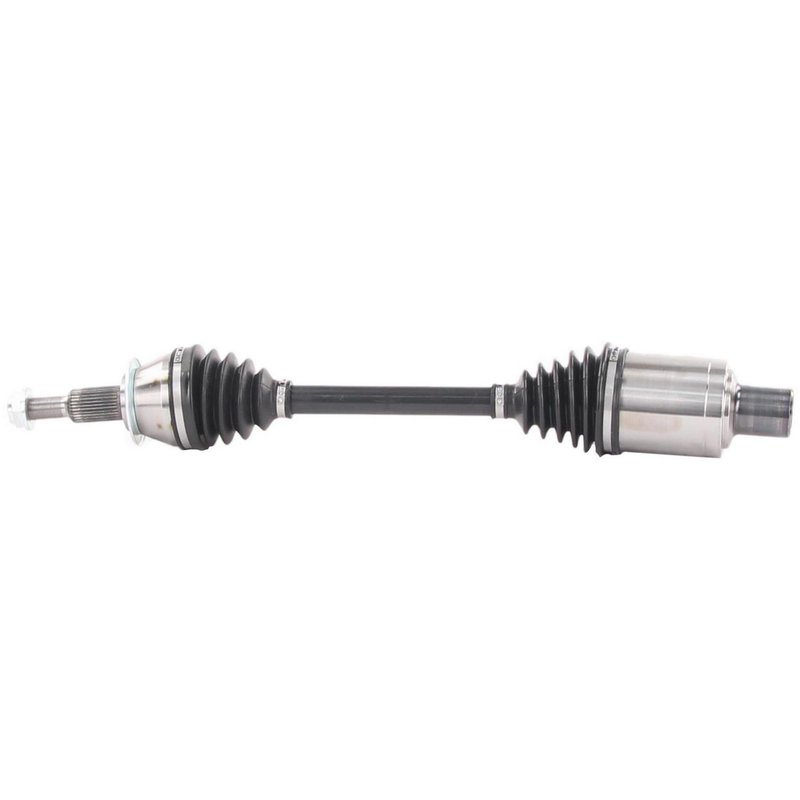

TrakMotive CH-8360 CV Axle Shaft - Rear Right
| Brand | TrakMotive CH-8360 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.74 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30-2 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.98 |
| Overall Compressed Length (mm) | 660 |
| Overall Extended Length (in) | 28.82 |
| Overall Extended Length (mm) | 732 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
OE-style replacement. New CV axle shaft with spline connections and a female inboard joint.
Neoprene boot. Flexible boot material helps protect the joint assembly from road exposure.
Certified manufacturing. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive CH-8360 and 68292314AB for the same application. See all 2.
CV axle shaft for Cherokee
This TrakMotive CV axle shaft is built for the rear right position on compatible Jeep Cherokee applications with a single speed transfer case. Part number CH-8360 is a new replacement axle with a neoprene boot, spline connections, and an included self-locking axle nut.
- Fits 2019-2020 Jeep Cherokee, rear right.
- New CV axle shaft with spline-style inboard and outboard connections.
- Neoprene boot material for the axle assembly.
- Includes axle nut with M22 x 1.5 thread size and hex head.
- No ABS tone ring included for non-ABS applications unless otherwise noted.
Detailed fitment and design
CH-8360 is a direct-fit driveline replacement for the rear right side of the Jeep Cherokee in 2019 and 2020 applications listed with a single speed transfer case. It uses a female inboard joint, a conventional outboard joint, and spline connections at both ends for proper engagement. The axle measures 25.98 inches compressed and 28.82 inches extended, and the included axle nut is specified with a 31.8 mm hex size.
TrakMotive identifies this CV axle shaft as a new part, not remanufactured, and notes that ABS axles fit non-ABS applications unless otherwise noted. The CH-8360 part number is also referenced as 68292314AB for the same application.
Common replacement uses
- Restores driveline connection when the original axle is worn or damaged.
- Addresses clicking, vibration, or binding related to CV joint wear.
- Replaces a leaking or torn axle boot assembly.
- Supports proper power transfer at the rear right axle location.
Installation notes and quality
Verify the vehicle’s transfer case configuration, axle position, and spline count before installation. Confirm axle nut thread size, hex size, and overall length against the removed part to ensure correct match-up. Professional installation is recommended for proper torque and fitment.
TrakMotive states a limited lifetime warranty and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. Part number CH-8360 is built as a new replacement axle for the listed Jeep Cherokee applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Jeep | Cherokee | Rear Right | single speed transfer case; CV Axle Shaft |
| 2019 | Jeep | Cherokee | Rear Right | single speed transfer case; CV Axle Shaft |
