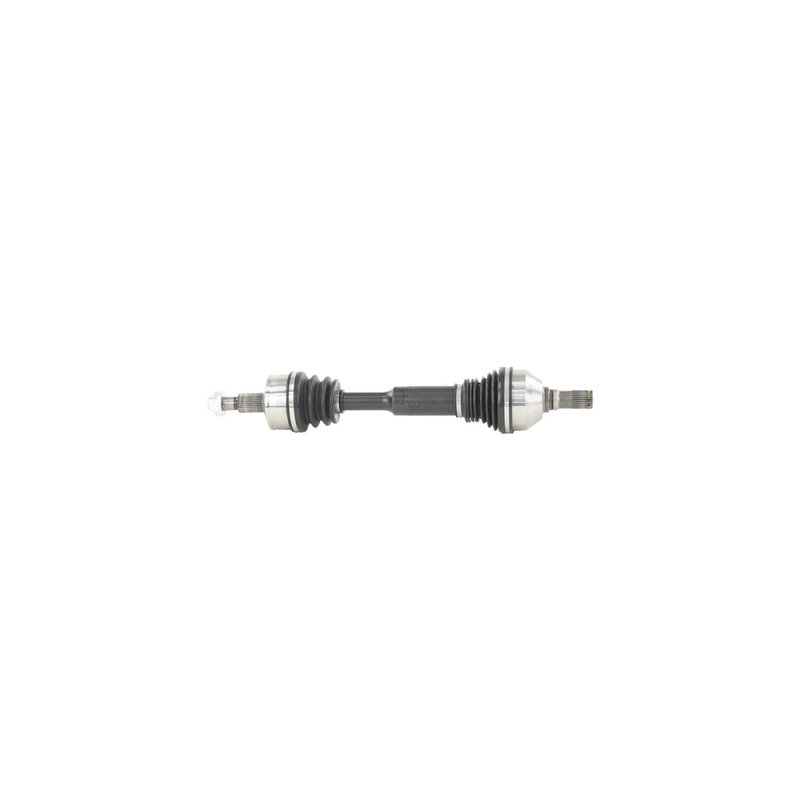

TrakMotive CH-8365 CV Axle Shaft - Front Left or Front Right
Reliable CV Axle Shaft for Jeep Cherokee
The TrakMotive CV Axle Shaft CH-8365 is engineered to provide dependable driveline performance for Jeep Cherokee vehicles. Designed with precision, this new axle shaft ensures smooth power transfer and durability under various driving conditions.
- Brand: TrakMotive
- Brand Line: CV Axle Shaft
- Part Number: CH-8365
- Compatible with Jeep Cherokee models
- Neoprene boot material for enhanced durability
- Hex head axle nut with stake locking type included
- Inboard joint type: Male with 30 splines
- Outboard joint type: Conventional with 32 splines
- Overall compressed length: 24.25 inches (616 mm)
- Overall extended length: 27.01 inches (686 mm)
About the TrakMotive CV Axle Shaft Product Line
The TrakMotive CV Axle Shaft line focuses on delivering quality replacement components for driveline and axle systems. This product line emphasizes precise fitment and reliable joint construction to maintain vehicle drivability and safety. The CH-8365 model exemplifies these standards with its robust neoprene boot and spline connection styles designed for Jeep Cherokee applications.
Detailed Product Description
The CH-8365 CV Axle Shaft from TrakMotive features a neoprene boot that resists wear and environmental damage, helping to protect the internal joint components. The inboard joint is a male type with 30 splines, while the outboard joint is conventional with 32 splines, both designed for secure spline engagement. The axle nut included is a hex head type measuring 35.6 mm across flats with a height of 23 mm and a length of 41.1 mm, featuring a stake locking mechanism to ensure secure fastening. The axle shaft’s overall length ranges from 24.25 inches compressed to 27.01 inches extended, accommodating suspension travel and vehicle articulation.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Jeep Cherokee models
- Eliminates clicking or popping noises during turns caused by joint wear
- Resolves vibration issues related to axle imbalance or joint failure
- Prevents grease leaks by maintaining boot integrity
- Restores driveline stability and power transfer efficiency
Installation Notes and Tips
Ensure the vehicle is securely lifted and supported before beginning installation. Verify the spline counts and joint types match the original axle shaft. Use the included hex head axle nut with the specified M24x1.5 thread size and stake locking method to secure the axle properly. Avoid damaging the neoprene boot during installation to maintain joint protection. It is recommended to inspect related suspension and driveline components during replacement.
Quality Assurance and Warranty
The TrakMotive CV Axle Shaft CH-8365 is a new, not remanufactured, component designed to meet OEM specifications for Jeep Cherokee vehicles. Manufactured with durable materials and precise engineering, this axle shaft supports reliable vehicle operation. Warranty details should be confirmed with the product provider or manufacturer.
| Brand | TrakMotive |
| Part Number | CH-8365 |
| Position | CV Axle Shaft, Front Right and Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.62 |
| Axle Nut Length (mm) | 41.1 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.25 |
| Overall Compressed Length (mm) | 616 |
| Overall Extended Length (in) | 27.01 |
| Overall Extended Length (mm) | 686 |
This part fits 30 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Jeep | Cherokee | AWD | Front Left | With Off Road Suspension (Opt SDJ); CV Axle Shaft |
| 2021 | Jeep | Cherokee | AWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Jeep | Cherokee | AWD | Front Left | W/ Offroad Suspension (Option SDJ); CV Axle Shaft |
| 2020 | Jeep | Cherokee | AWD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ Single Speed Transfer Case; CV Axle Shaft |
| 2020 | Jeep | Cherokee | AWD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ 2 Speed Transfer Case; CV Axle Shaft |
| 2020 | Jeep | Cherokee | 4WD | Front Left | W/ Offroad Suspension (Option SDJ); CV Axle Shaft |
| 2020 | Jeep | Cherokee | 4WD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ Single Speed Transfer Case; CV Axle Shaft |
| 2020 | Jeep | Cherokee | 4WD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ 2 Speed Transfer Case; CV Axle Shaft |
| 2019 | Jeep | Cherokee | AWD | Front Left | W/ Offroad Suspension (Option SDJ); CV Axle Shaft |
| 2019 | Jeep | Cherokee | AWD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ Single Speed Transfer Case; CV Axle Shaft |
| 2019 | Jeep | Cherokee | AWD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ 2 Speed Transfer Case; CV Axle Shaft |
| 2019 | Jeep | Cherokee | 4WD | Front Left | W/ Offroad Suspension (Option SDJ); CV Axle Shaft |
| 2019 | Jeep | Cherokee | 4WD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ Single Speed Transfer Case; CV Axle Shaft |
| 2019 | Jeep | Cherokee | 4WD | Front Left | W/ Standard Duty Suspension (Opt SDA); W/ 2 Speed Transfer Case; CV Axle Shaft |
| 2018 | Jeep | Cherokee | AWD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2018 | Jeep | Cherokee | AWD | Front Left | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2018 | Jeep | Cherokee | 4WD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2018 | Jeep | Cherokee | 4WD | Front Left | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2017 | Jeep | Cherokee | AWD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2017 | Jeep | Cherokee | AWD | Front Left | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2017 | Jeep | Cherokee | 4WD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2017 | Jeep | Cherokee | 4WD | Front Left | W/ Offroad Suspension (opt SDJ); CV Axle Shaft |
| 2016 | Jeep | Cherokee | AWD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2016 | Jeep | Cherokee | AWD | Front Left | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2015 | Jeep | Cherokee | AWD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2015 | Jeep | Cherokee | AWD | Front Left | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2014 | Jeep | Cherokee | AWD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2014 | Jeep | Cherokee | AWD | Front Left | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2014 | Jeep | Cherokee | 4WD | Front Right | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
| 2014 | Jeep | Cherokee | 4WD | Front Left | W/ Offroad Suspension (Opt SDJ); CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
