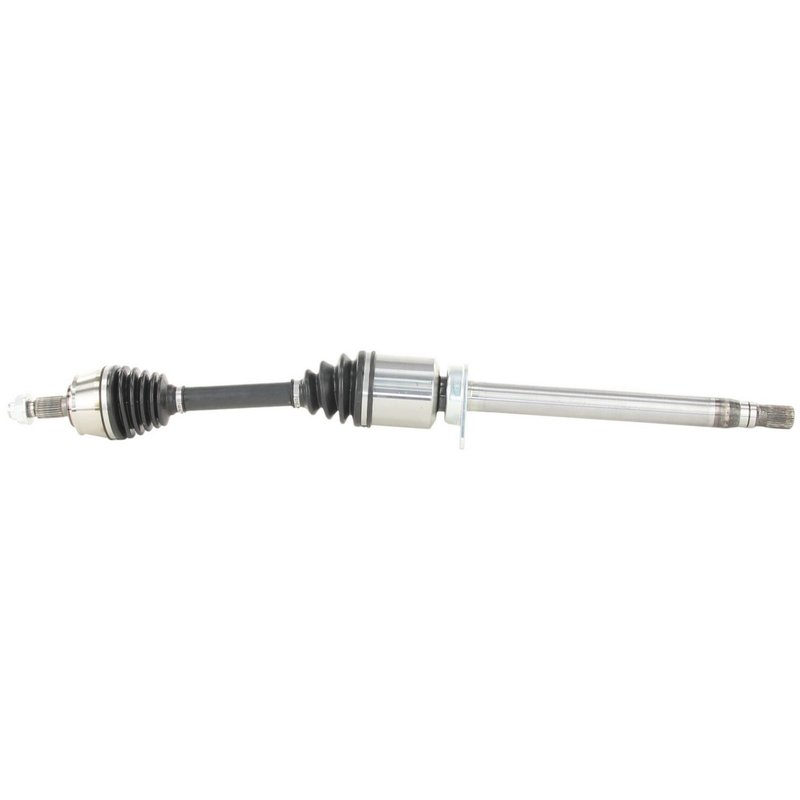

TrakMotive CH-8373 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8373 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.5 |
| Overall Compressed Length (mm) | 978 |
| Overall Extended Length (in) | 41.08 |
| Overall Extended Length (mm) | 1044 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 3 vehicles |
OE-style replacement. Built as a CV axle shaft for straightforward service.
Premium grade. Neoprene boots help protect the joints from wear.
Includes the axle nut for a complete installation.
Cross-references TrakMotive CH-8373, 68291656AA and 68291656AC for the same application. See all 5.
Front Right CV Axle Shaft for Cherokee
TrakMotive CH-8373 is an AAR CV axle shaft for the front right position on 2017-2019 Jeep Cherokee models. It is built as a premium driveline replacement with OE-style spline connections and a conventional outboard joint for direct service on the specified application.
Key Features
- Fits 2017-2019 Jeep Cherokee, front right
- TrakMotive AAR CV Axle Shaft, part number CH-8373
- Premium-grade replacement for driveline service
- 30 inboard splines and 27 outboard splines
- Neoprene boot material on both inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- ABS tone ring not included; ABS ring tooth count is 0
Product Details
This TrakMotive CH-8373 axle shaft is engineered for the front right side of the Jeep Cherokee and matches the OE AAR design noted for this application. The shaft uses a long-male inboard joint, a conventional outboard joint, and spline-style shaft connections to support proper driveline engagement. TrakMotive identifies this AAR CV Axle Shaft line as a premium replacement option, and the company states its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certification.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV axle
- Vibration or shudder from a damaged axle shaft
- Grease leakage from torn or deteriorated CV boots
- Axle play caused by worn spline or joint interfaces
- Front right driveline wear on 2017-2019 Jeep Cherokee models
Installation Notes
Verify front right fitment against the vehicle’s OE AAR configuration before installation. The included axle nut uses a 36 mm socket size and M24x1.5 thread, with a stake-style locking design. ABS tone ring is not included, so confirm the vehicle’s ABS setup matches the listed application before service.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this CV axle shaft. The brand also states that its manufacturing is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Jeep | Cherokee | FWD | 3.2L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Jeep | Cherokee | FWD | 3.2L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Jeep | Cherokee | FWD | 3.2L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
