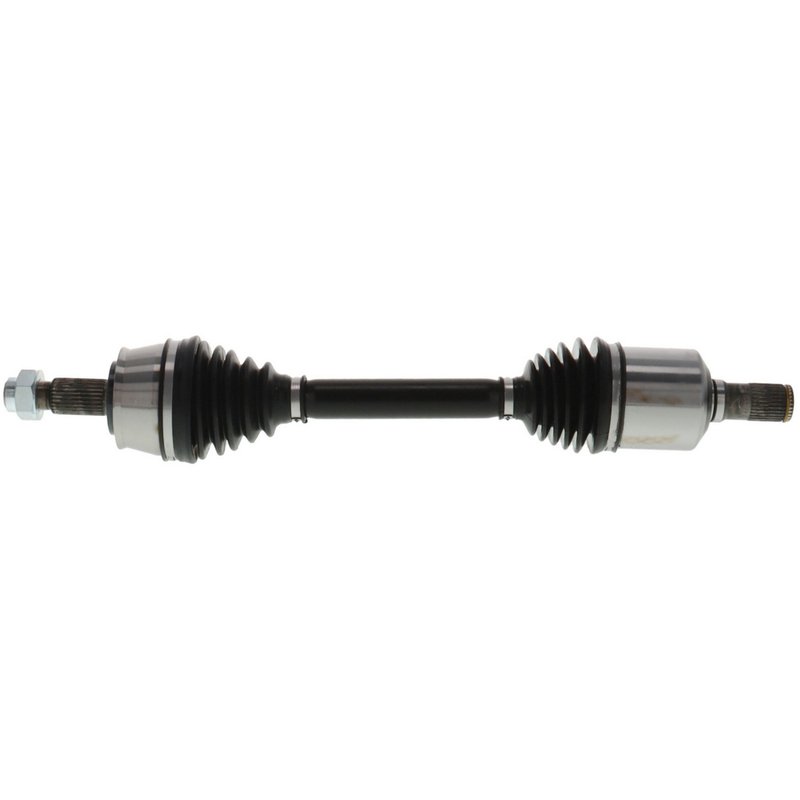

TrakMotive CH-8380 CV Axle Shaft - Front
| Brand | TrakMotive CH-8380 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.61 |
| Overall Compressed Length (mm) | 599 |
| Overall Extended Length (in) | 25.61 |
| Overall Extended Length (mm) | 651 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 4 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Neoprene boots. Help protect the joints from dirt and moisture.
Includes axle nut. Stake-lock design with a 36 mm hex size.
Cross-references TrakMotive CH-8380 for the same application. See all 1.
Front CV Axle Shaft for Jeep Renegade
The TrakMotive AAR CV Axle Shaft CH-8380 is a front axle assembly for select 2015-2018 Jeep Renegade applications. It is built as a premium-grade replacement with OE AAR design details, making it a direct-fit driveline service part for front axle repair on the Jeep Renegade.
Key Features
- Front CV axle shaft for 2015-2018 Jeep Renegade
- TrakMotive AAR CV Axle Shaft, part number CH-8380
- Premium grade construction
- Inboard joint type: male spline connection
- 30 inboard splines and 27 outboard splines
- Neoprene boot material on both inboard and outboard joints
- ABS tone ring not included; ABS ring tooth count: 0
- Axle nut included with M24x1.5 thread, 36 mm hex/socket size, stake locking type
- Overall compressed length: 599 mm; overall extended length: 651 mm
Product Details
TrakMotive CH-8380 is an AAR CV axle shaft engineered for front-wheel service on the Jeep Renegade. The shaft uses a conventional outboard joint, a male inboard joint, and spline-style shaft connections to match the listed OE AAR design. This part is built for 2015, 2016, 2017, and 2018 Jeep Renegade front applications and is a direct replacement for the specified driveline configuration.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Replacing a worn or noisy front CV axle on a Jeep Renegade
- Restoring driveline operation after torn CV boots or joint wear
- Correcting vibration, clicking, or binding from the front axle assembly
- Servicing a front axle with damaged splines or axle nut hardware
- Repairing OE AAR-style front axle fitment on 2015-2018 Jeep Renegade models
Installation Notes
Verify front application, spline count, and axle nut thread size before installation. This axle includes an axle nut and uses a stake-style locking design with a 36 mm hex/socket size. ABS tone ring is not included, and the axle is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a premium-grade part and states that the product line is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certified company standards.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2018 | Jeep | Renegade | Trailhawk | AWD | 2.4L | L4 | Front | OE AAR design; AAR CV Axle Shaft |
| 2017 | Jeep | Renegade | Trailhawk | AWD | 2.4L | L4 | Front | OE AAR design; AAR CV Axle Shaft |
| 2016 | Jeep | Renegade | Trailhawk | AWD | 2.4L | L4 | Front | OE AAR design; AAR CV Axle Shaft |
| 2015 | Jeep | Renegade | Trailhawk | AWD | 2.4L | L4 | Front | OE AAR design; AAR CV Axle Shaft |
