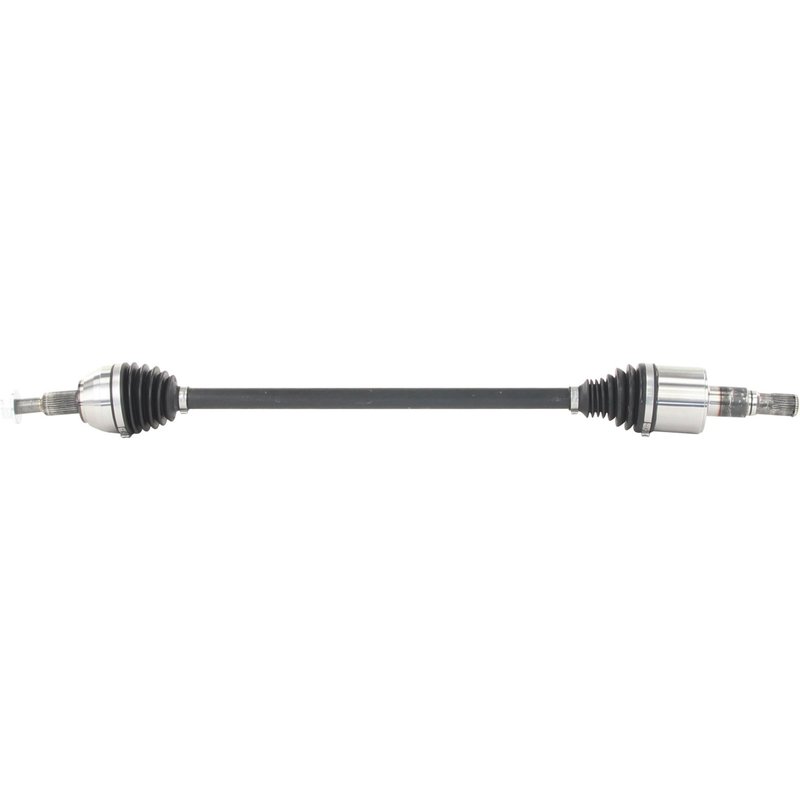

TrakMotive CH-86001 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86001 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40.83 |
| Overall Compressed Length (mm) | 1037 |
| Overall Extended Length (in) | 42.93 |
| Overall Extended Length (mm) | 1091 |
| Product line | AAR CV Axle Shaft |
| Fits | Chrysler · 6 vehicles |
OE-style replacement. Built as a CV axle shaft for straightforward service.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Included axle nut. Comes with a self-locking hex nut for installation.
Cross-references TrakMotive CH-86001, 68356588AB and NCV12145 for the same application. See all 3.
TrakMotive CH-86001 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-86001 is a premium replacement axle for the front right side of select Chrysler Pacifica models. It is built for OE AAR design applications and includes the axle nut for a more complete service replacement.
Key Features
- Fits 2017-2022 Chrysler Pacifica, front right
- OE AAR design for the listed application
- Premium-grade CV axle shaft construction
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- Inboard splines: 30; outboard splines: 32
- Thermoplastic boot material on inboard and outboard joints
- Axle nut included: M22x1.5, 32 mm hex, self-locking
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive CH-86001 CV axle shaft is engineered for the front right position on 2017-2022 Chrysler Pacifica vehicles. The axle uses a male inboard joint, a conventional outboard joint, and spline connections at both ends for direct driveline service on the listed application. TrakMotive identifies this part as part of its AAR CV Axle Shaft line, and the design is intended for non-ABS applications unless otherwise noted.
This part cross-references 68356588AB and NCV12145 for the same application.
Common Repair Applications
- Front right axle noise or vibration on a Chrysler Pacifica
- Worn CV joints causing clicking during turns
- Damaged axle shaft splines or boot failure
- Driveline shudder under acceleration
- Replacement after axle nut or joint wear
Installation Notes
Verify the vehicle is a 2017-2022 Chrysler Pacifica, front right application before installation. Confirm axle nut thread size, hex size, and overall axle length against the removed part to ensure proper match. Inspect mating components, seals, and hub condition during service, and follow factory torque specifications for the axle nut and related fasteners.
Quality Assurance
TrakMotive lists this AAR CV axle shaft as a premium-grade part from an ISO 9001:2008 and TS 16949:2009 certified company. The CH-86001 also carries a limited lifetime warranty.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Chrysler | Pacifica | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Chrysler | Pacifica | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Chrysler | Pacifica | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Chrysler | Pacifica | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Chrysler | Pacifica | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Chrysler | Pacifica | PLUG-IN HYBRID EV-GAS (PHEV) | Front Right | OE AAR design; AAR CV Axle Shaft |
