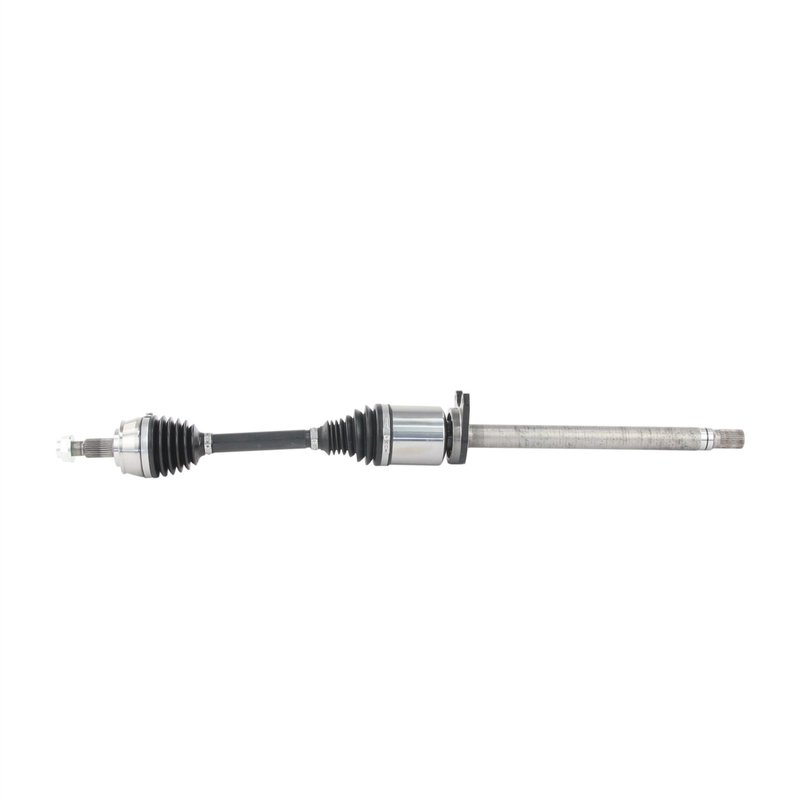

TrakMotive CH-86003 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86003 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.39 |
| Overall Compressed Length (mm) | 975 |
| Overall Extended Length (in) | 40.94 |
| Overall Extended Length (mm) | 1040 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 3 vehicles |
AAR CV axle shaft. Built as a direct driveline replacement for dependable power transfer.
Premium grade. Thermoplastic boots help protect the joints from wear and contamination.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86003, 52123761AH and NCV82079 for the same application. See all 3.
Front Right CV Axle Shaft for Jeep Cherokee
The TrakMotive AAR CV Axle Shaft, part number CH-86003, is a direct-fit driveline replacement for the front right position on 2014-2016 Jeep Cherokee models. It is built as a premium-grade axle assembly with OE AAR design details for accurate fitment and dependable drivetrain operation.
Key Features
- Fits 2014-2016 Jeep Cherokee, front right
- OE AAR design for the listed application
- Premium-grade CV axle shaft construction
- Inboard joint type: Long-Male with spline connection
- Outboard joint type: Conventional with spline connection
- Thermoplastic boots on both inboard and outboard joints
- Includes axle nut with M24x1.5 thread, 36 mm hex size, and stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive CH-86003 is engineered for the front right side of the Jeep Cherokee and follows the OE AAR design used on the listed vehicles. This CV axle shaft features 30 inboard splines and 27 outboard splines, along with a long-male inboard joint and conventional outboard joint for proper drivetrain engagement. The axle measures 38.39 inches compressed and 40.94 inches extended, helping match the original suspension and axle geometry on 2014, 2015, and 2016 Jeep Cherokee applications. This part cross-references 52123761AH and NCV82079 for the same application.
Common Repair Uses
- Restores power transfer to the front right wheel
- Addresses clicking or popping during turns caused by worn CV joints
- Helps correct vibration from a damaged or worn axle shaft
- Replaces a leaking or torn CV boot assembly
- Supports repair of drivetrain noise from spline or joint wear
Installation Notes
Verify front right fitment before installation on 2014-2016 Jeep Cherokee models. Confirm axle nut thread size, hex size, and locking style against the original part before assembly. Inspect related suspension and hub components for wear, and follow factory service procedures for torque and axle nut staking during installation.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a premium replacement component and states that the product is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification for its quality management system.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Jeep | Cherokee | FWD | 2.4L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Jeep | Cherokee | FWD | 2.4L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Jeep | Cherokee | FWD | 2.4L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
