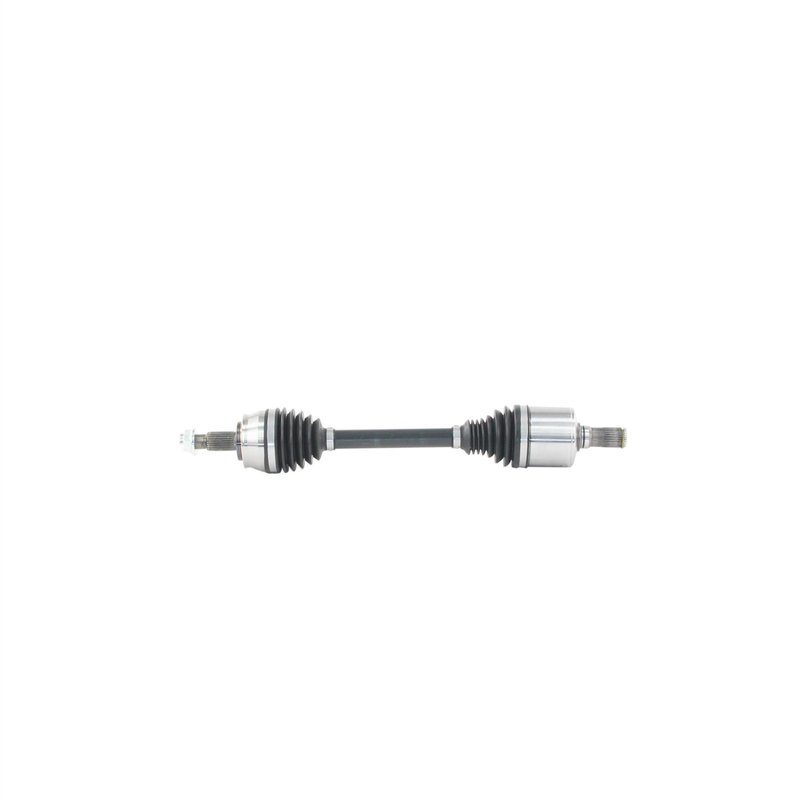

TrakMotive CH-86004 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86004 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.63 |
| Overall Compressed Length (mm) | 626 |
| Overall Extended Length (in) | 26.73 |
| Overall Extended Length (mm) | 679 |
| Product line | AAR CV Axle Shaft |
| Fits | Chrysler · 3 vehicles |
Premium grade. Built with thermoplastic boots and a conventional outboard joint.
ABS-ready design. Configured for non-ABS applications with no tone ring included.
Complete axle nut. Includes a hex nut with stake locking for secure installation.
Cross-references TrakMotive CH-86004 and 52123729AB for the same application. See all 2.
Front Right CV Axle Shaft for Chrysler 200
TrakMotive CH-86004 is a premium CV axle shaft for the front right position on select 2015-2017 Chrysler 200 models. It follows the OE AAR design for direct replacement service and includes an axle nut for installation. This Chrysler 200 front right CV axle shaft is built for driveline repair where spline engagement, joint articulation, and proper axle length matter.
Key Features
- Fits 2015-2017 Chrysler 200, front right
- OE AAR design for the listed application
- Premium grade CV axle shaft from TrakMotive
- Inboard joint type: male with 30 inboard splines
- Outboard joint type: conventional with 27 outboard splines
- Thermoplastic boot material on both inboard and outboard joints
- Axle nut included; M24x1.5 thread, 36 mm hex/socket size
- No ABS tone ring included; ABS ring tooth count: 0
- Overall compressed length: 626 mm (24.63 in); extended length: 679 mm (26.73 in)
Product Details
TrakMotive AAR CV Axle Shaft CH-86004 is engineered for the front right side of the Chrysler 200 in 2015, 2016, and 2017. The axle uses a spline-style inboard shaft connection and a spline-style outboard shaft connection, with thermoplastic boots at both joints for consistent protection in driveline service. This part cross-references Chrysler OE number 52123729AB for the same application.
Common Repair Uses
- Restoring drive power to the front right wheel
- Replacing a worn or noisy CV joint assembly
- Addressing clicking during turns or acceleration
- Correcting vibration caused by axle wear or imbalance
- Replacing a damaged axle shaft on a Chrysler 200
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. This axle includes a stake-style axle nut with M24x1.5 threads and a 36 mm hex/socket size. Confirm that the vehicle uses the listed front right configuration and that no ABS tone ring is required for the application.
Quality Assurance
TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The brand states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Chrysler | 200 | AWD | 3.6L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Chrysler | 200 | AWD | 3.6L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Chrysler | 200 | AWD | 3.6L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
