TrakMotivePart #: CH-86005

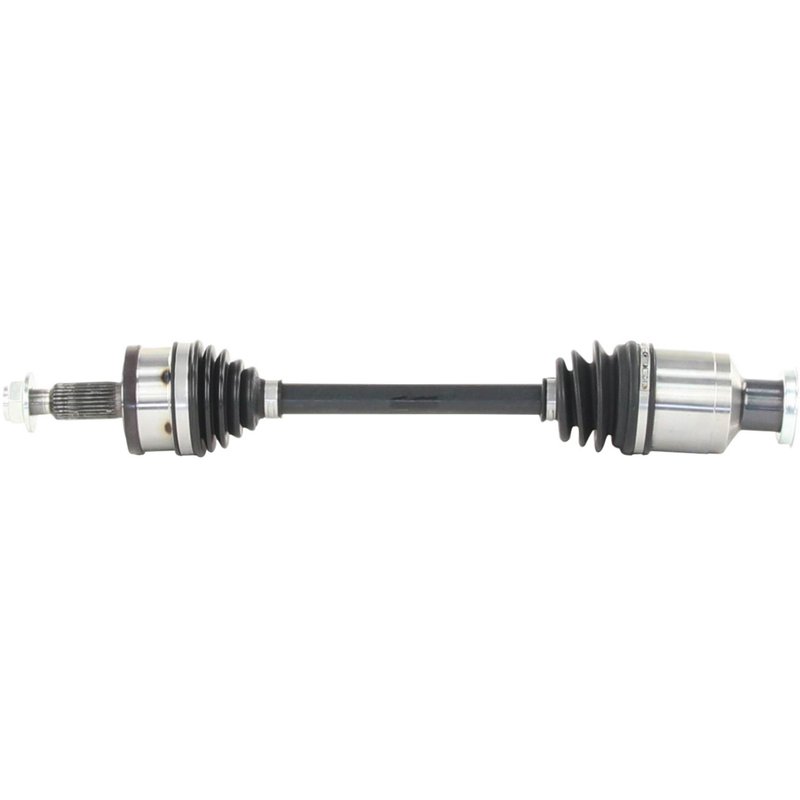

TrakMotive CH-86005 CV Axle Shaft - Front Left
⚙️ 32 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$148.94Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦AAR CV Axle Shaft, Front Left
🚗Fitment: Chrysler and Dodge, 300, Challenger, Charger, and Magnum
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options
TrakMotive CH-86005 CV Axle Shaft - Front Left
| Brand | TrakMotive |
| Part Number | CH-86005 |
| Position | AAR CV Axle Shaft, Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.83 |
| Overall Compressed Length (mm) | 580 |
| Overall Extended Length (in) | 24.8 |
| Overall Extended Length (mm) | 630 |
This part fits 32 vehicles. Search below:
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Chrysler | 300 | AWD | 3.6L | V6 | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft |
| 2018 | Dodge | Challenger | AWD | 3.6L | V6 | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft |
| 2018 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2017 | Chrysler | 300 | AWD | 3.6L | V6 | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft |
| 2017 | Dodge | Challenger | AWD | 3.6L | V6 | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft |
| 2017 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2016 | Chrysler | 300 | AWD | 3.6L | V6 | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft |
| 2016 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2015 | Chrysler | 300 | AWD | 3.6L | V6 | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft |
| 2015 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2014 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2014 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2013 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2013 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2012 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2012 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2011 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2011 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2010 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2010 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2009 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2009 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2008 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2008 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2008 | Dodge | Magnum | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2007 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2007 | Dodge | Charger | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2007 | Dodge | Magnum | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2006 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2006 | Dodge | Magnum | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2005 | Chrysler | 300 | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft | ||
| 2005 | Dodge | Magnum | AWD | Front Left | Compare spline counts and diameter to original; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
CH-86005
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
