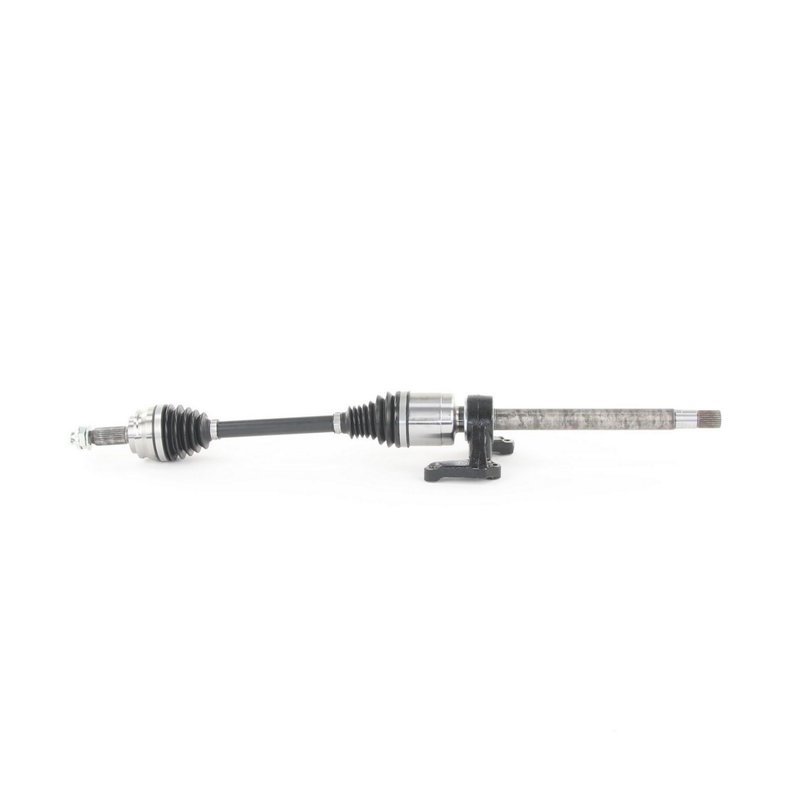

TrakMotive CH-86007 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86007 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 37.56 |
| Overall Compressed Length (mm) | 954 |
| Overall Extended Length (in) | 39.625 |
| Overall Extended Length (mm) | 1006 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 8 vehicles |
OE direct replacement. Premium CV axle shaft for straightforward replacement.
Thermoplastic boots. Durable boot material helps protect the joints.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86007 for the same application. See all 1.
TrakMotive CH-86007 CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-86007 is a premium driveline replacement for the front right side of select Jeep Compass and Jeep Patriot models. It is built for 2014-2017 applications and includes the intermediate shaft and bracket for the listed fitments.
Key Features
- Front right CV axle shaft for select Jeep applications
- Fits 2014-2017 Jeep Compass, front right
- Fits 2014-2017 Jeep Patriot, front right
- Premium grade construction
- Thermoplastic boot material on the inboard and outboard joints
- Male inboard joint with conventional outboard joint design
- 27 inboard splines and 28 outboard splines
- Overall compressed length: 37.56 in (954 mm)
- Overall extended length: 39.625 in (1006 mm)
- 32 mm axle nut hex size and 15 mm axle nut height
Product Details
TrakMotive CH-86007 is part of the AAR CV Axle Shaft line, a premium driveline offering for direct-fit axle replacement needs. This axle is engineered for the front right position on 2014-2017 Jeep Compass and 2014-2017 Jeep Patriot models, with the intermediate shaft and bracket included for the listed applications. The design uses a male inboard joint, a conventional outboard joint, and thermoplastic boots to support consistent joint protection in everyday driving conditions. TrakMotive CH-86007 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.
This part cross-references TrakMotive CH-86007 for the same application.
Common Replacement Reasons
- Clicking or popping noises during turns
- Vibration from the front right driveline area
- Worn or damaged CV axle joints
- Torn axle boots with grease loss
- Axle shaft wear affecting smooth power transfer
Installation Notes
Verify front right fitment by year, model, and position before installation. Confirm axle nut size, spline count, and compressed length against the original part to ensure proper match. The axle nut is not included, so reuse or replace it as required by the vehicle service procedure. ABS tone ring is not included, and this axle is listed with 0 ABS ring tooth count.
Quality Assurance
TrakMotive backs this AAR CV Axle Shaft with a limited lifetime warranty. The part is produced by an ISO 9001:2008 and TS 16949:2009 certified company for controlled manufacturing and consistent product standards.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Jeep | Compass | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
| 2017 | Jeep | Patriot | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
| 2016 | Jeep | Compass | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
| 2016 | Jeep | Patriot | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
| 2015 | Jeep | Compass | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
| 2015 | Jeep | Patriot | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
| 2014 | Jeep | Compass | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
| 2014 | Jeep | Patriot | FWD | Automatic | Front Right | Intermediate Shaft and Bracket Included; AAR CV Axle Shaft |
