TrakMotivePart #: CH-86010XTT

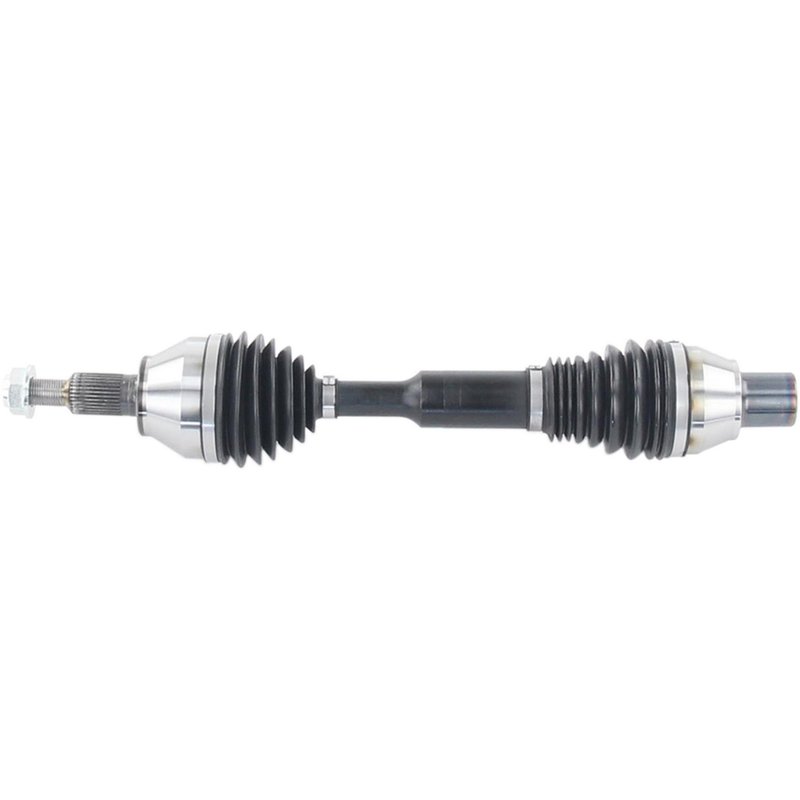

TrakMotive CH-86010XTT CV Axle Shaft - Front
⚙️ 3 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$308.30Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Extended Travel CV Axle Shaft, Front
🚗Fitment: Ram, 1500
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options
TrakMotive CH-86010XTT CV Axle Shaft - Front
| Brand | TrakMotive |
| Part Number | CH-86010XTT |
| Position | Extended Travel CV Axle Shaft, Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.31 |
| Overall Compressed Length (mm) | 618 |
| Overall Extended Length (in) | 26.67 |
| Overall Extended Length (mm) | 678 |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Ram | 1500 | 5.7L | V8 | Front | Thru 3/14/21; Extended Travel CV Axle Shaft |
| 2020 | Ram | 1500 | Front | Always Replace in Pairs; Extended Travel CV Axle Shaft | ||
| 2019 | Ram | 1500 | Front | Always Replace in Pairs; Extended Travel CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
CH-86010XTTNCV10040XDP
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
