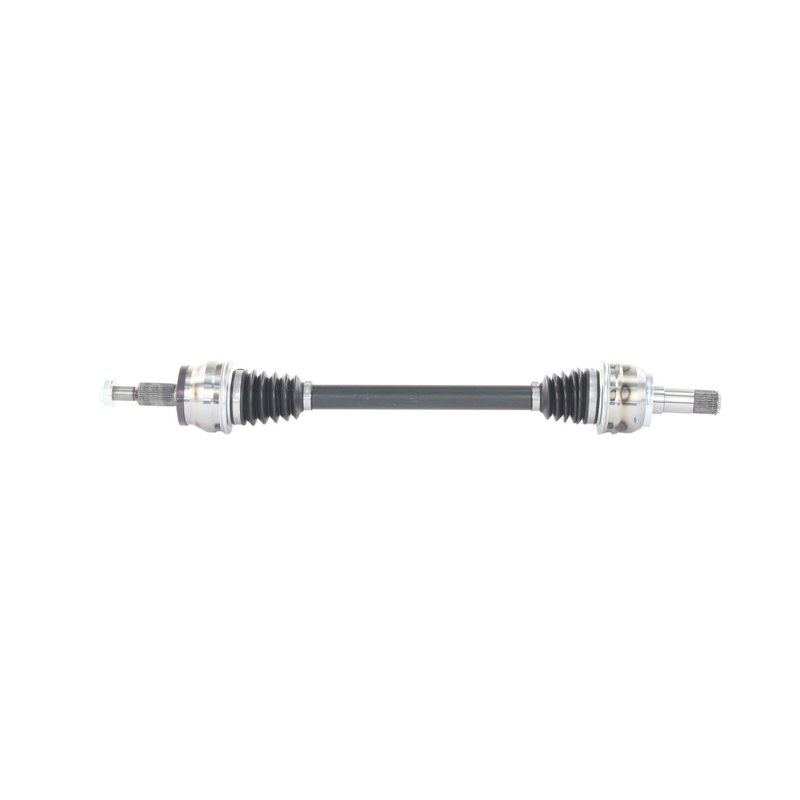

TrakMotive CH-86011 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86011 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 31.69 |
| Overall Compressed Length (mm) | 806 |
| Overall Extended Length (in) | 34.875 |
| Overall Extended Length (mm) | 886 |
| Product line | CV Axle Shaft |
| Fits | Dodge · 4 vehicles |
Premium grade. Built as a CV axle shaft with thermoplastic boots for durable joint protection.
Magnetic ABS ring. Helps provide reliable wheel-speed signal performance in ABS applications.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009 standards.
Cross-references TrakMotive CH-86011 for the same application. See all 1.
Rear Left CV Axle Shaft for Challenger
TrakMotive CH-86011 is a premium CV axle shaft for the rear left position on select 2011-2014 Dodge Challenger models. It is built for standard duty replacement needs and supports ABS-equipped applications with a magnetic 48-tooth tone ring configuration.
Key Features
- Fits 2011-2014 Dodge Challenger, rear left
- Premium-grade CV axle shaft for driveline service
- 31-spline inboard and 32-spline outboard configuration
- Magnetic ABS ring with 48 teeth
- Thermoplastic boot materials on inboard and outboard joints
- Overall compressed length: 31.69 in. (806 mm)
- Overall extended length: 34.875 in. (886 mm)
- TrakMotive part number CH-86011
Product Details
This TrakMotive CV axle shaft is engineered for the rear left side of the Dodge Challenger and matches the listed spline counts, length, and ABS ring setup for the application. The inboard joint uses a male design, while the outboard joint uses a conventional design, helping maintain proper driveline geometry and wheel-speed signal compatibility where equipped. TrakMotive CH-86011 is a direct-fit replacement for 2011, 2012, 2013, and 2014 Dodge Challenger rear left applications.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built under ISO 9001:2008 and TS 16949:2009 certified quality systems. This part cross-references TrakMotive CH-86011 for the same application.
Common Replacement Reasons
- Clicking or popping during acceleration or turning
- Vibration from a worn or damaged axle shaft
- Boot wear that leads to grease loss and joint contamination
- ABS warning concerns related to axle-mounted tone ring wear
- Driveline noise from excessive CV joint play
Installation Notes
Verify rear left fitment before installation on 2011-2014 Dodge Challenger models. Confirm axle nut socket size is 32 mm and axle nut height is 19 mm, and note that the axle nut is not included. Check spline counts, ABS ring type, and overall axle length against the original part before assembly. Proper torque procedures and suspension positioning during installation help ensure correct fit and operation.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty. The brand also states that ABS axles fit non-ABS applications unless otherwise noted, and that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Dodge | Challenger | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Dodge | Challenger | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2012 | Dodge | Challenger | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2011 | Dodge | Challenger | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
