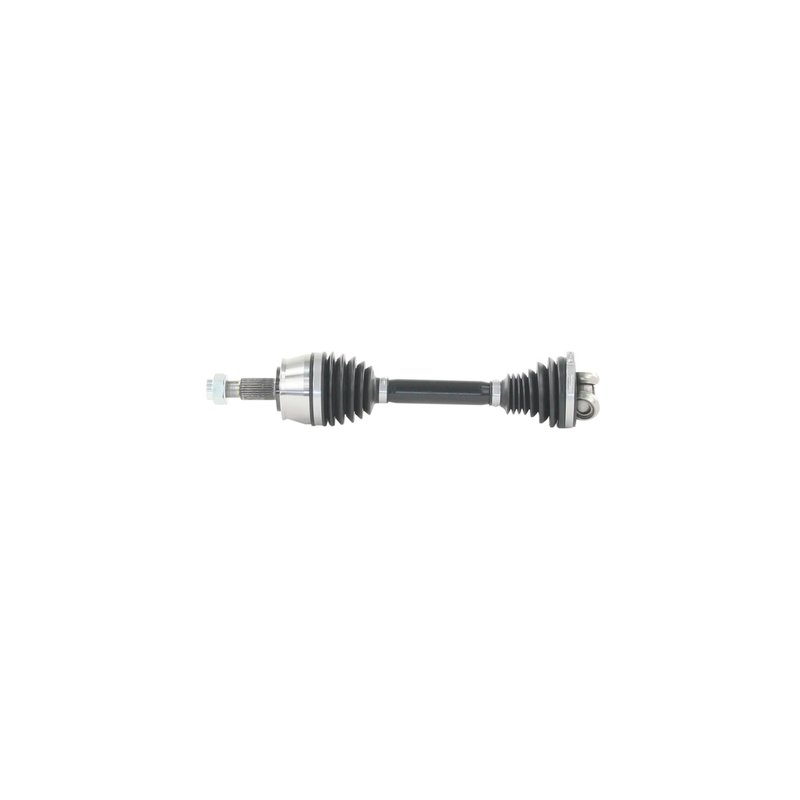

TrakMotive CH-86012 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86012 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 19.31 |
| Overall Compressed Length (mm) | 491 |
| Product line | AAR CV Axle Shaft |
| Fits | Ram · 6 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline service.
Conventional joint type. Provides a straightforward design for smooth power transfer.
ISO 9001:2008 and TS 16949:2009 certified manufacturing.
Cross-references TrakMotive CH-86012 and NCV12147 for the same application. See all 2.
TrakMotive CH-86012 CV Axle Shaft for Ram ProMaster City
TrakMotive CH-86012 is a premium CV axle shaft for the front right position on the 2015-2020 Ram ProMaster City. This AAR CV axle shaft is built for non-ABS applications unless otherwise noted and is backed by TrakMotive’s limited lifetime warranty.
Key Features
- Fits 2015-2020 Ram ProMaster City, front right
- Premium-grade CV axle shaft for driveline service
- Outer joint type: conventional
- Overall compressed length: 491 mm (19.31 in.)
- Outboard spline count: 27
- Axle nut thread size: M24x1.5
- Axle nut hex size: 36 mm
- ABS tone ring not included
- ABS ring tooth count: 0
Detailed Description
TrakMotive CH-86012 is an AAR CV axle shaft engineered for the front right side of the Ram ProMaster City from 2015 through 2020. It is specified with a conventional outboard joint, 27 outboard splines, and a 491 mm compressed length, helping ensure the correct fit for the listed application. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application. TrakMotive CH-86012 is a direct-fit driveline replacement for Ram ProMaster City front right axle service where the listed dimensions and spline count match the vehicle.
What This Part Helps Address
- Clicking or popping during turns caused by worn CV joints
- Vibration from a damaged or worn axle shaft
- Grease leakage from a failing CV axle boot or joint assembly
- Driveline noise from excessive axle wear
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify front right fitment, axle length, spline count, and axle nut specifications before installation. This axle uses a 36 mm axle nut socket size and M24x1.5 thread size; the axle nut is not included. ABS axles fit non-ABS applications unless otherwise noted, and this unit does not include an ABS tone ring. Confirm the vehicle’s original configuration against the listed specifications before service.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a premium replacement part and states ISO 9001:2008 and TS 16949:2009 certification. The CH-86012 is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Ram | ProMaster City | Front Right | Outer Joint Only; AAR CV Axle Shaft |
| 2019 | Ram | ProMaster City | Front Right | Outer Joint Only; AAR CV Axle Shaft |
| 2018 | Ram | ProMaster City | Front Right | Outer Joint Only; AAR CV Axle Shaft |
| 2017 | Ram | ProMaster City | Front Right | Outer Joint Only; AAR CV Axle Shaft |
| 2016 | Ram | ProMaster City | Front Right | Outer Joint Only; AAR CV Axle Shaft |
| 2015 | Ram | ProMaster City | Front Right | Outer Joint Only; AAR CV Axle Shaft |
