TrakMotivePart #: CH-86024

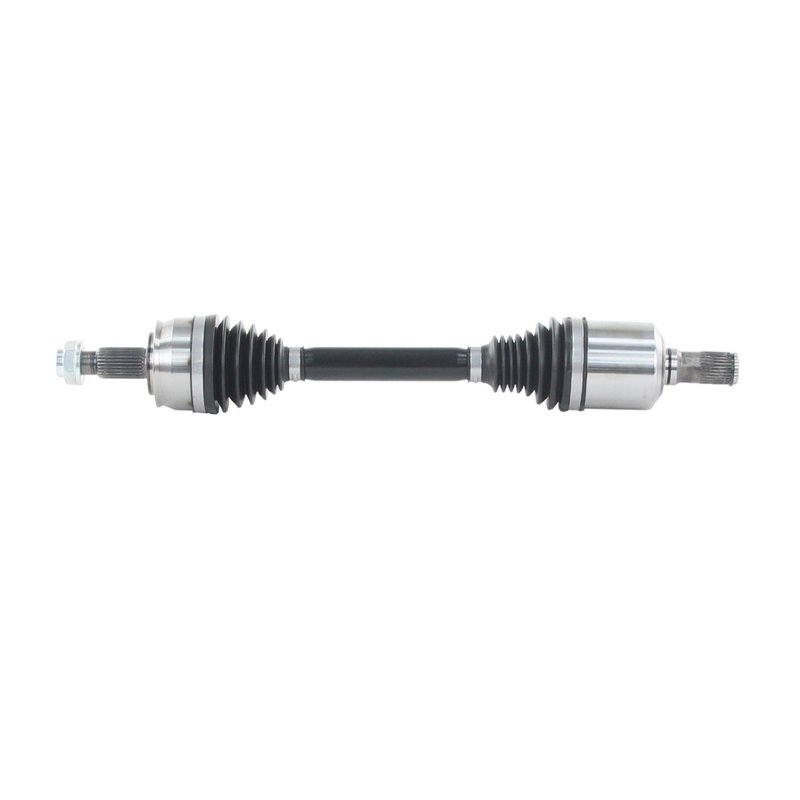

TrakMotive CH-86024 CV Axle Shaft - Front
6 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$333.33Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front
Fitment: Jeep, Compass
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive CH-86024 CV Axle Shaft - Front
| Brand | TrakMotive |
|---|---|
| Part Number | CH-86024 |
| Position | AAR CV Axle Shaft, Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.56 |
| Overall Compressed Length (mm) | 599 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Jeep | Compass | AWD | Automatic | Front | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
| 2021 | Jeep | Compass | AWD | Automatic | Front | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
| 2020 | Jeep | Compass | AWD | Automatic | Front | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
| 2019 | Jeep | Compass | AWD | Automatic | Front | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
| 2018 | Jeep | Compass | AWD | Automatic | Front | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
| 2017 | Jeep | Compass | AWD | Automatic | Front | OEM Style Axle to Retain Original Ride Quality; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
CH-86024NCV82058
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
