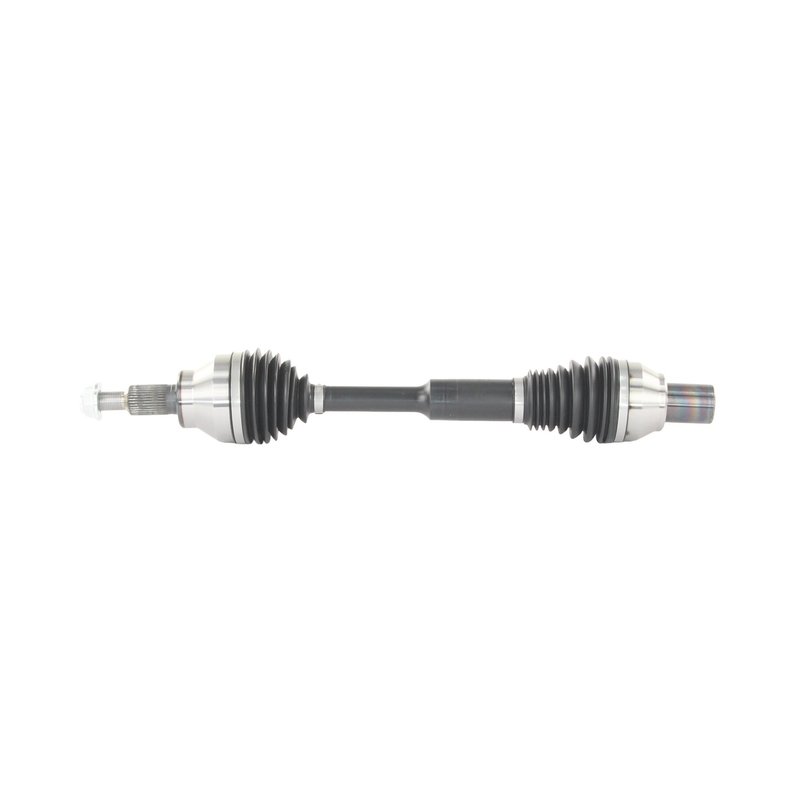

TrakMotive CH-86025 CV Axle Shaft - Front
| Brand | TrakMotive CH-86025 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*2 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.88 |
| Overall Compressed Length (mm) | 683 |
| Overall Extended Length (in) | 29.63 |
| Overall Extended Length (mm) | 753 |
| Product line | CV Axle Shaft |
| Fits | Ram · 2 vehicles |
OE-style replacement. Premium CV axle shaft built for a direct-fit driveline repair.
ABS-ready design. No tone ring included for non-ABS applications unless noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86025 for the same application. See all 1.
Front CV Axle Shaft for Ram 1500
TrakMotive CH-86025 is a premium front CV axle shaft for the 2021-2022 Ram 1500 New Style with 6-lug wheel applications. It is built for direct replacement service on front driveline repairs where OE-style fitment and spline counts matter.
Key Features
- Fits 2021-2022 Ram 1500, front, New Style (6 Lug Wheel)
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: female
- Outboard joint type: conventional
- Inboard splines: 29-2T; outboard splines: 33
- Overall compressed length: 26.88 in. (683 mm)
- Overall extended length: 29.63 in. (753 mm)
- Axle nut thread size: M24x2; socket size: 36 mm
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive CH-86025 is a front CV axle shaft engineered for Ram 1500 driveline service on the 2021-2022 New Style 6-lug wheel platform. The shaft uses a female inboard joint and a conventional outboard joint, with 29-2T inboard splines and 33 outboard splines for application-specific fitment. TrakMotive identifies this part as a premium CV axle shaft and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. This part cross-references TrakMotive CH-86025 for the same application.
Common Repair Uses
- Front axle replacement for worn or noisy CV joints
- Repair for vibration during acceleration or turning
- Correction for clicking, popping, or binding from the front driveline
- Replacement after boot damage or grease loss
- Service part for front-end driveline wear on Ram 1500 trucks
Installation Notes
Verify axle nut thread size, spline count, and overall length before installation. This axle uses a 36 mm socket size and M24x2 axle nut thread specification, and the axle nut is not included. Confirm front position and New Style 6-lug wheel fitment on the vehicle before ordering. ABS axles fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Ram | 1500 | 6.2L | V8 | Front | New Style (6 Lug Wheel); CV Axle Shaft |
| 2021 | Ram | 1500 | 6.2L | V8 | Front | New Style (6 Lug Wheel); CV Axle Shaft |
