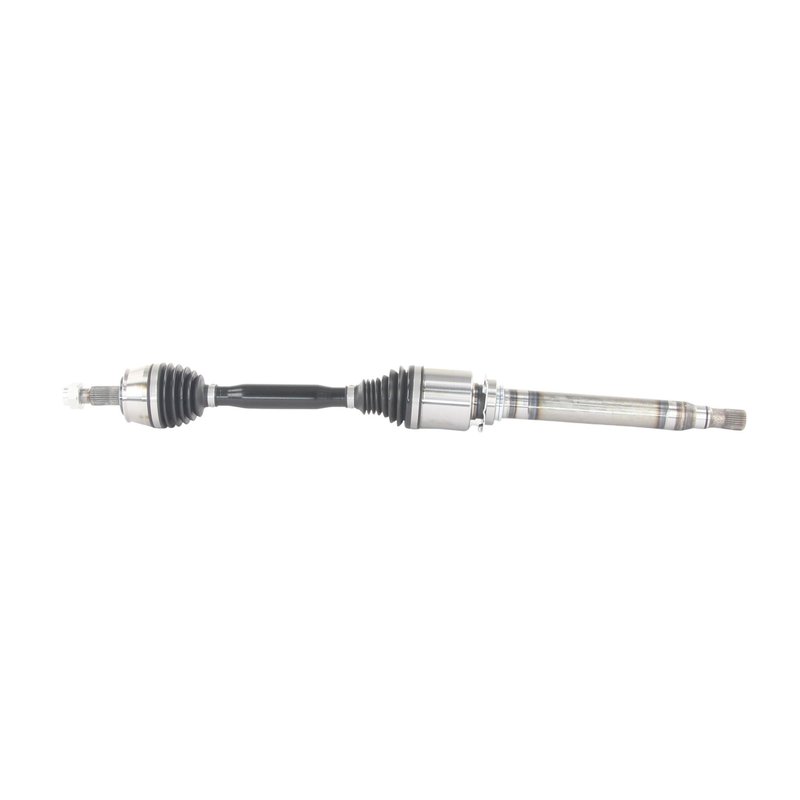

TrakMotive CH-86026 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86026 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long + male |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.13 |
| Overall Compressed Length (mm) | 969 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
ABS-ready design. Configured for non-ABS applications unless otherwise noted.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86026 for the same application. See all 1.
Front Right CV Axle Shaft for Jeep Renegade
TrakMotive CH-86026 is a premium CV axle shaft for the front right position on select Jeep Renegade models. It is built for 2019-2020 Jeep Renegade applications and follows an OE AAR design for the specified fitment.
Key Features
- Fits 2019-2020 Jeep Renegade, front right
- TrakMotive AAR CV Axle Shaft line
- Premium grade replacement axle shaft
- Long-male inboard joint configuration
- Conventional outboard joint type
- 30 inboard splines and 27 outboard splines
- 36 mm axle nut socket size with M24x1.5 thread
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 969 mm (38.13 in)
Detailed Description
TrakMotive CH-86026 is a front right CV axle shaft for the Jeep Renegade, engineered for 2019-2020 vehicles with the OE AAR design noted in the fitment data. This axle shaft uses a long-male inboard joint and a conventional outboard joint, with 30 inboard splines and 27 outboard splines for the listed application. The TrakMotive AAR CV Axle Shaft line focuses on OE-style replacement coverage for driveline service, and CH-86026 is identified for the front right side on the Jeep Renegade.
This part cross-references TrakMotive CH-86026 for the same application.
What It Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain under acceleration
- Grease leakage from a damaged axle boot or joint area
- Axle shaft wear that can affect front-wheel driveline operation
- Noise or looseness from a failing front right axle assembly
Installation Notes and Tips
Verify the axle nut thread size, hex size, spline counts, and compressed length against the removed part before installation. This axle uses a 36 mm axle nut socket size and M24x1.5 thread specification, and the listing notes no axle nut is included. Confirm the vehicle is the front right application for 2019-2020 Jeep Renegade and compare the OE AAR design details before assembly.
Quality Assurance
TrakMotive lists this axle shaft as a premium-grade part from an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Jeep | Renegade | 1.3L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Jeep | Renegade | 1.3L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
