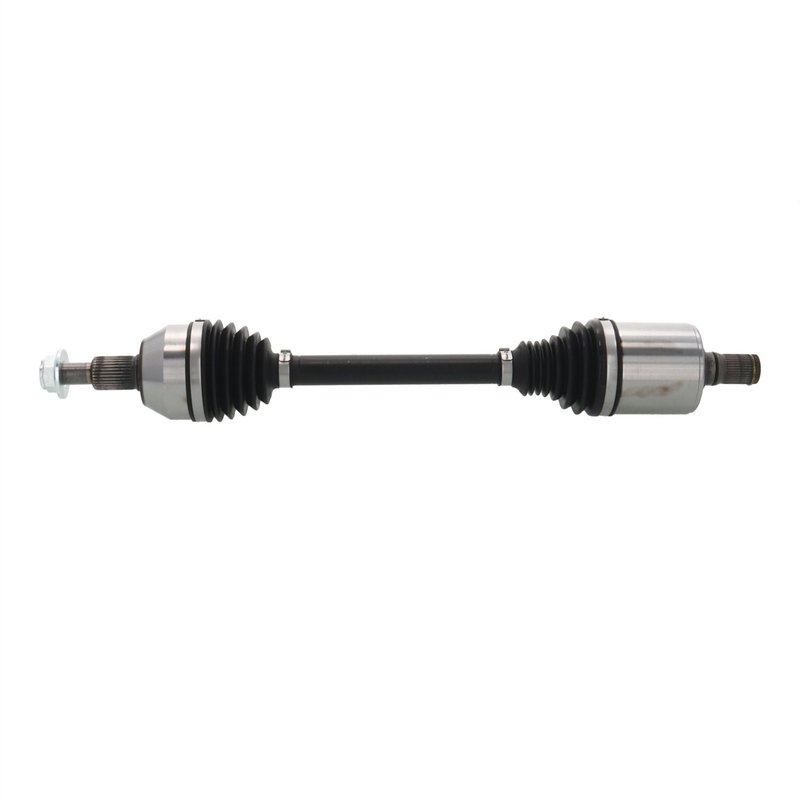

TrakMotive CH-86027 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Jeep Grand Cherokee

TrakMotive CH-86027 is a premium CV axle shaft for the front left position on select 2021-2022 Jeep Grand Cherokee and Jeep Grand Cherokee L models with a single speed transfer case. It is built as an AAR CV axle shaft for driveline service where smooth power transfer and proper fitment are required.

Key Features

• Fits 2021-2022 Jeep Grand Cherokee, front left, single speed transfer case
• Fits 2021-2022 Jeep Grand Cherokee L, front left, single speed transfer case
• Premium-grade CV axle shaft for driveline repair
• Male inboard joint with conventional outboard joint design
• 37 inboard splines and 32 outboard splines
• No ABS tone ring included; ABS ring tooth count is 0
• Axle nut thread size: M22x1.5; socket size: 32 mm
• Overall compressed length: 646.5-647 mm; overall extended length: 712 mm

Product Details

TrakMotive CH-86027 is part of the AAR CV Axle Shaft line, a product line focused on application-specific driveline replacement parts. This axle is engineered for the front left side and matches the listed spline counts, joint styles, and dimensions for the confirmed Jeep applications. The part number CH-86027 is also the reference used for ordering and catalog lookup.

This part cross-references TrakMotive (e.g., CH-86027) for the same application.

Common Repair Uses

• Restores driveline operation after a worn or noisy CV axle
• Addresses clicking or popping during turns caused by joint wear
• Replaces a shaft with damaged splines or compromised joint movement
• Corrects vibration or binding related to axle wear
• Supports front axle service on Jeep Grand Cherokee and Grand Cherokee L models

Installation Notes and Tips

Verify the vehicle uses the listed single speed transfer case before installation. Confirm axle nut thread size, socket size, spline counts, and compressed length against the removed part to ensure proper fit. Because no axle nut is included, reuse or replace the nut separately as needed. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

Quality Assurance

TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management practices.
