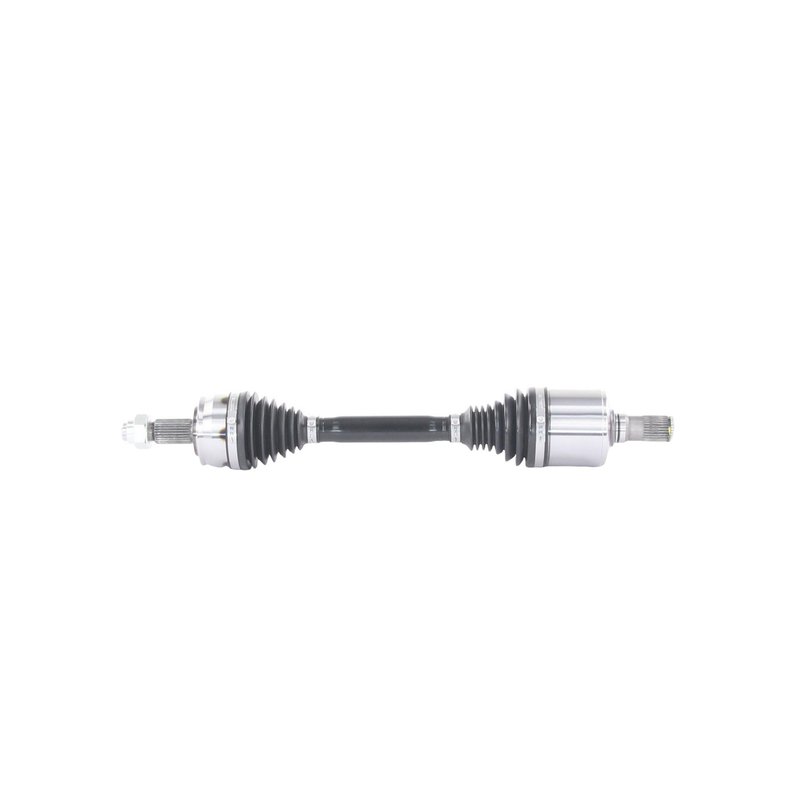

TrakMotive CH-86028 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-86028 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.69 |
| Overall Compressed Length (mm) | 601.5 |
| Overall Compressed Length (mm) | 602 |
| Product line | AAR CV Axle Shaft |
| Fits | Fiat and Jeep · 8 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified company. Made by an ISO 9001:2008 and TS 16949:2009 certified manufacturer.
Cross-references TrakMotive CH-86028 for the same application. See all 1.
Front Left CV Axle Shaft for Jeep Renegade and Fiat 500X
TrakMotive CH-86028 is a front left CV axle shaft built for OE AAR design applications. It is listed for 2015-2020 Jeep Renegade and 2016-2017 Fiat 500X front left positions, with fitment details that match the original driveline layout.
Key Features
- Part number: CH-86028
- Brand line: AAR CV Axle Shaft
- Front left application
- OE AAR design
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 30
- Outboard splines: 27
- Overall compressed length: 23.69 in. (601.5-602 mm)
- Axle nut thread size: M24x1.5
- Axle nut hex/socket size: 36 mm
- ABS tone ring included: No
Product Details
The TrakMotive AAR CV Axle Shaft line is built for direct replacement use where OE AAR geometry is required. CH-86028 is configured with a male inboard joint, a conventional outboard joint, 30 inboard splines, and 27 outboard splines. The axle measures 23.69 inches compressed length and uses an M24x1.5 axle nut thread with a 36 mm hex/socket size. This part cross-references TrakMotive CH-86028 for the same application.
Compatible with 2015-2020 Jeep Renegade, front left, and 2016-2017 Fiat 500X, front left. Use CH-86028 when replacing a worn front left axle on these vehicles and matching OE AAR design specifications.
Common Repair Uses
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Grease leakage from a failed axle boot or joint
- Noise from excessive driveline play
- Restoring front left driveline function after axle wear
Installation Notes
Verify spline count, axle nut thread size, and compressed length before installation. This axle uses a 36 mm axle nut size and does not include an axle nut. ABS tone ring is not included, and the axle is listed with no ABS ring tooth count. Confirm the vehicle’s front left OE AAR design requirements before installation on a Jeep Renegade or Fiat 500X.
Quality Assurance
TrakMotive lists this AAR CV axle shaft as a premium-grade component from an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer support includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Jeep | Renegade | FWD | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Jeep | Renegade | FWD | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2018 | Jeep | Renegade | FWD | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Fiat | 500X | — | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Jeep | Renegade | FWD | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Fiat | 500X | — | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Jeep | Renegade | FWD | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2015 | Jeep | Renegade | FWD | 2.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
