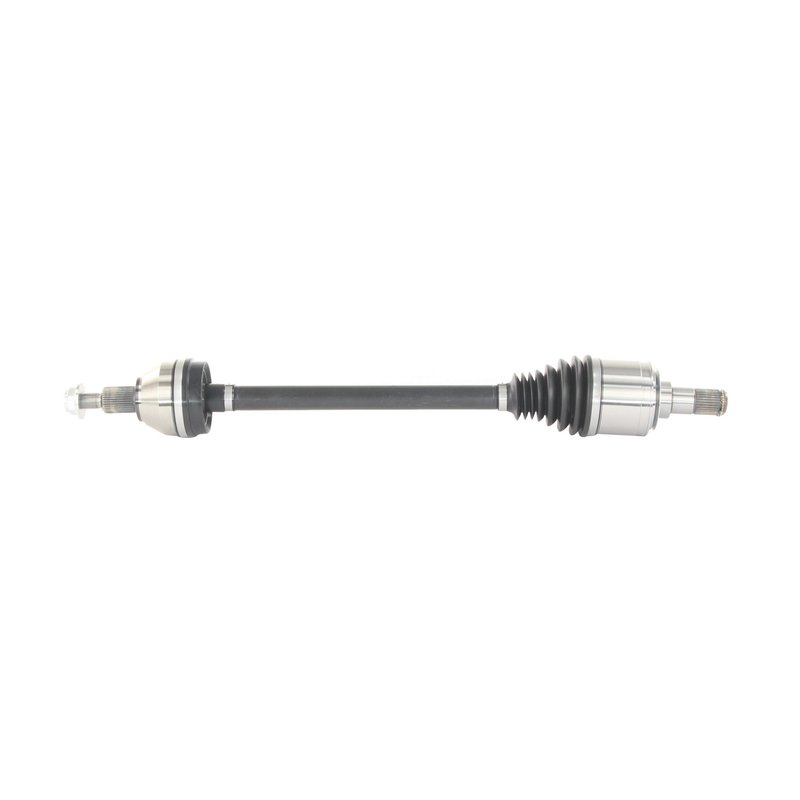

TrakMotive CH-86029 CV Axle Shaft - Rear Right

TrakMotive CH-86029 CV Axle Shaft

TrakMotive CH-86029 is a premium CV axle shaft for the rear right position on select 2021-2022 Jeep Grand Cherokee and Jeep Grand Cherokee L models with an electronic locking differential (limited slip). It is built for direct driveline service where a replacement rear right CV axle shaft is needed.

Key Features

• Rear right CV axle shaft for select Jeep applications
• Premium grade construction
• Inboard joint type: male
• Outboard joint type: conventional
• 32 inboard splines and 35 outboard splines
• Axle nut thread size: M22x1.5
• Axle nut socket size: 32 mm
• ABS tone ring not included; ABS ring tooth count: 0
• Overall compressed length: 32.81 in (833.5-834 mm)
• Overall extended length: 34.63 in (879.5-880 mm)

Product Details

TrakMotive CV Axle Shaft CH-86029 is engineered for rear right driveline replacement on the 2021-2022 Jeep Grand Cherokee and 2021-2022 Jeep Grand Cherokee L with electronic locking differential (limited slip). The axle uses a male inboard joint and a conventional outboard joint, with spline counts and dimensions that support proper fitment in the specified applications. TrakMotive positions this CV axle shaft as a premium replacement part for driveline service where OE-style geometry and axle interface details matter.

TrakMotive’s CV Axle Shaft line focuses on application-specific replacement parts for driveline and axle repair. CH-86029 follows that approach with defined spline counts, axle nut specifications, and measured compressed and extended lengths to match the listed Jeep rear right applications. This part number is CH-86029.

This part cross-references TrakMotive CH-86029 for the same application.

Common Problems This Part Can Address

• Rear axle shaft noise during acceleration or turning
• Vibration from a worn CV axle assembly
• Clicking or binding from driveline wear
• Loss of smooth power transfer to the rear wheel
• Service replacement after axle damage or spline wear

Installation Notes and Tips

Verify rear right fitment against the vehicle’s differential configuration before installation. Confirm axle nut thread size M22x1.5 and 32 mm socket size during service, and compare the axle length and spline counts to the removed part. Because ABS tone ring is not included and ABS ring tooth count is 0, this axle is listed for non-ABS applications unless otherwise noted by the vehicle fitment.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this driveline component.
