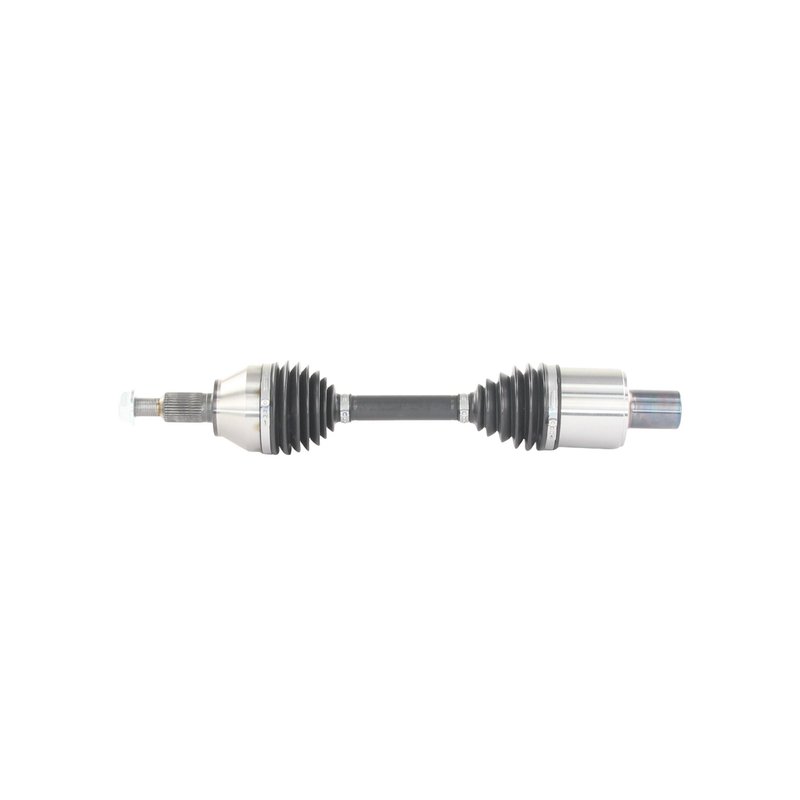

TrakMotive CH-86030 CV Axle Shaft - Front
| Brand | TrakMotive CH-86030 |
|---|---|
| Position | Front |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*2 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 24.31 |
| Overall Compressed Length (mm) | 618 |
| Overall Extended Length (in) | 26.63 |
| Overall Extended Length (mm) | 675.5 |
| Overall Extended Length (mm) | 676 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep and Ram · 6 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
Conventional outboard joint. Provides a straightforward axle design for smooth power transfer.
ISO certified. Manufactured by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive CH-86030 for the same application. See all 1.
Front CV Axle Shaft for Ram and Jeep
TrakMotive CH-86030 is a premium front CV axle shaft built for specific Ram 1500 and Jeep Grand Wagoneer applications. It is engineered for vehicles with the listed spline and length specifications, making it a direct replacement option for front driveline service.
Key Features
- Part number CH-86030 from TrakMotive AAR CV Axle Shaft line
- Front CV axle shaft with conventional outboard joint and female inboard joint
- 29-2T inboard splines and 33 outboard splines
- Overall compressed length: 24.31 in. (618 mm)
- Overall extended length: 26.63 in. (675.5 mm)
- Axle nut thread size: M24x2 with 36 mm socket size
- Premium grade construction
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
The TrakMotive AAR CV Axle Shaft line is positioned for direct-fit driveline replacement where OE-style dimensions and spline counts matter. CH-86030 is specified for front applications on 2024 Ram 1500, 2022-2023 Ram 1500 New Style 6 Lug Wheel, 2021 Ram 1500 from 3/15/21, and 2022-2023 Jeep Grand Wagoneer. For Jeep Grand Wagoneer service, the intermediate shaft should be inspected for damage and replaced if needed during CV axle replacement. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder from a damaged front axle shaft
- Grease leakage from a failed CV boot or joint
- Noise under acceleration from excessive driveline wear
- Restoring front axle function after impact or suspension damage
Installation Notes
Verify axle nut thread size, spline count, and compressed length before installation. The axle nut is not included, so reuse or replace it according to service requirements. On 2022-2023 Jeep Grand Wagoneer models, inspect the intermediate shaft for wear or damage before completing the repair. Confirm front application and vehicle configuration before ordering CH-86030.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certified company standards.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Ram | 1500 | 5.7L | V8 | Front | Outer Assembly; AAR CV Axle Shaft |
| 2023 | Jeep | Grand Wagoneer | — | — | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2023 | Ram | 1500 | 5.7L | V8 | Front | New Style (6 Lug Wheel); AAR CV Axle Shaft |
| 2022 | Jeep | Grand Wagoneer | — | — | Front | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Ram | 1500 | 5.7L | V8 | Front | New Style (6 Lug Wheel); AAR CV Axle Shaft |
| 2021 | Ram | 1500 | 5.7L | V8 | Front | From 3/15/21; AAR CV Axle Shaft |
