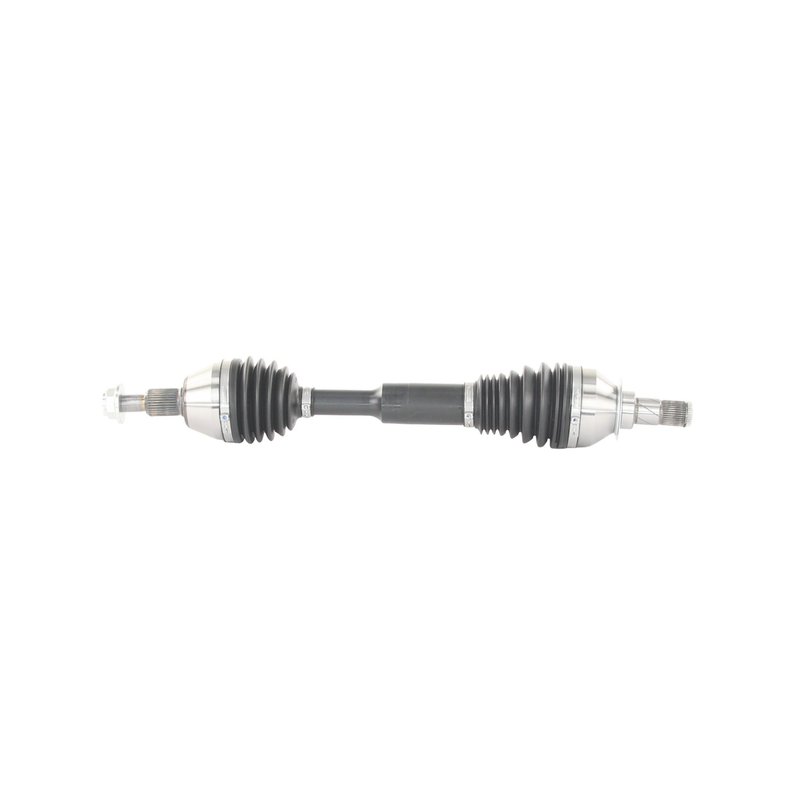

TrakMotive CH-86031 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Jeep Grand Cherokee

TrakMotive CH-86031 is a premium CV axle shaft for the front right position on select 2021-2022 Jeep Grand Cherokee and Jeep Grand Cherokee L models with air suspension. It is built for direct driveline replacement where a worn axle can cause vibration, clicking, or loss of smooth power transfer.

Key Features

• Front right CV axle shaft for select Jeep Grand Cherokee and Grand Cherokee L applications
• Premium-grade driveline component from TrakMotive CV Axle Shaft line
• Inboard joint type: male
• Outboard joint type: conventional
• Inboard splines: 37; outboard splines: 32
• Overall compressed length: 24.94 in. (634 mm)
• Overall extended length: 27.69 in. (704 mm)
• No ABS tone ring included; ABS ring tooth count: 0
• Axle nut thread size: M22x1.5; socket size: 32 mm

Detailed Description

TrakMotive CH-86031 is engineered as a replacement CV axle shaft for the front right side of 2021-2022 Jeep Grand Cherokee and 2021-2022 Jeep Grand Cherokee L models equipped with air suspension. The shaft uses a male inboard joint and a conventional outboard joint, with 37 inboard splines and 32 outboard splines for the specified application. This part number, CH-86031, is also referenced under interchange number NCV82085.

As part of the TrakMotive CV Axle Shaft line, CH-86031 is built for driveline service where the original axle has developed wear, noise, or driveline imbalance. TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.

What This Part Helps Address

• Clicking or popping noises during turns
• Vibration felt through the drivetrain or floor
• Worn or damaged axle shaft splines
• Loss of smooth torque transfer to the front right wheel
• Axle replacement needs on Jeep Grand Cherokee and Jeep Grand Cherokee L air suspension models

Installation Notes and Tips

Verify front right fitment by year, model, and air suspension configuration before installation. Confirm axle nut thread size M22x1.5 and 32 mm socket size during service, and compare spline counts and overall length to the original axle. Use proper driveline service procedures and inspect related seals, hubs, and suspension components while the axle is removed.

Quality Assurance

TrakMotive backs this CV axle shaft with a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and quality processes for driveline replacement parts.
