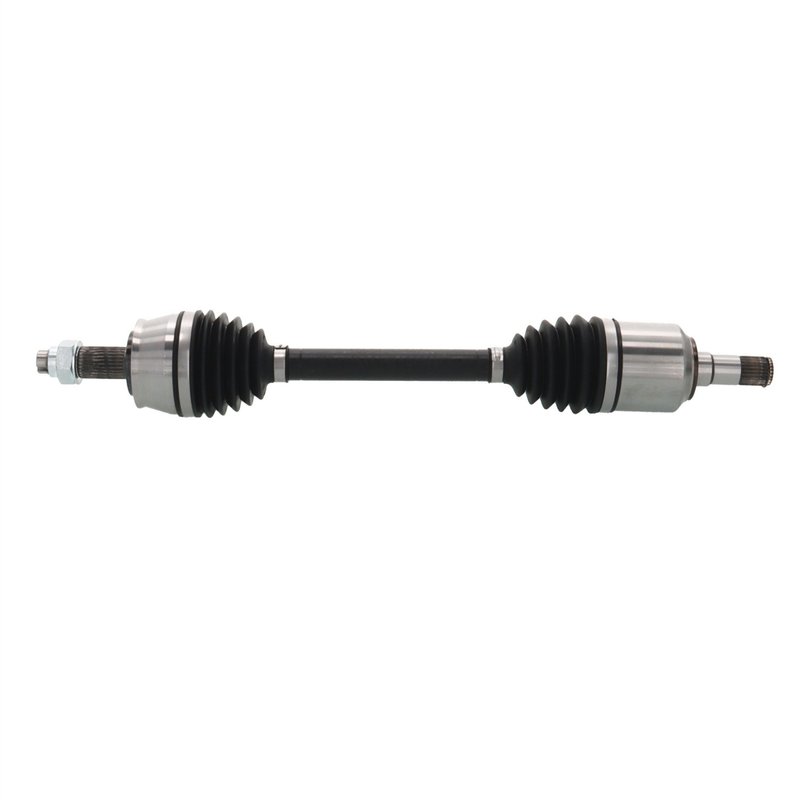

TrakMotive CH-86032 CV Axle Shaft - Front Left

Front Left CV Axle Shaft for Jeep Renegade and Fiat 500X

TrakMotive CH-86032 is a premium AAR CV axle shaft for front left applications on select Jeep Renegade and Fiat 500X models. It is built for OE AAR design coverage and uses a conventional outboard joint with a male inboard joint for the listed fitments.

Key Features

• Brand: TrakMotive AAR CV Axle Shaft line
• Part number: CH-86032
• Front left position
• 25 in. compressed length; 27.06 in. extended length
• 25 inboard splines and 27 outboard splines
• 36 mm axle nut socket size with M24x1.5 thread
• No ABS tone ring included; 0 ABS ring tooth count
• Premium grade construction

Product Details

This CV axle shaft is engineered for 2015-2018 Jeep Renegade, front left, and 2016-2017 Fiat 500X, front left. The TrakMotive CH-86032 follows OE AAR design requirements for these applications and is built to match the listed spline counts, joint types, and axle nut specifications. TrakMotive’s AAR CV Axle Shaft line focuses on direct-fit driveline replacement parts for vehicles that need accurate geometry and dependable joint engagement.

This part cross-references no additional part numbers beyond TrakMotive CH-86032 for the same application.

What It Helps Fix

• Clicking or popping from a worn front left CV joint
• Vibration during acceleration from a damaged axle shaft
• Grease leakage from a failed CV boot or joint assembly
• Clunking caused by excessive driveline play
• Loss of smooth power transfer to the front wheel

Installation Notes and Tips

Verify front left fitment by year, make, model, and OE AAR design before installation. Confirm axle nut thread size, hex size, spline counts, and overall length against the original shaft. The axle nut is not included, so reuse or replace it according to service requirements. This axle is listed for non-ABS applications unless otherwise noted, and it does not include an ABS tone ring.

Quality Assurance

TrakMotive manufactures this axle shaft as an ISO 9001:2008 and TS 16949:2009 certified company. The CH-86032 is backed by a limited lifetime warranty.
