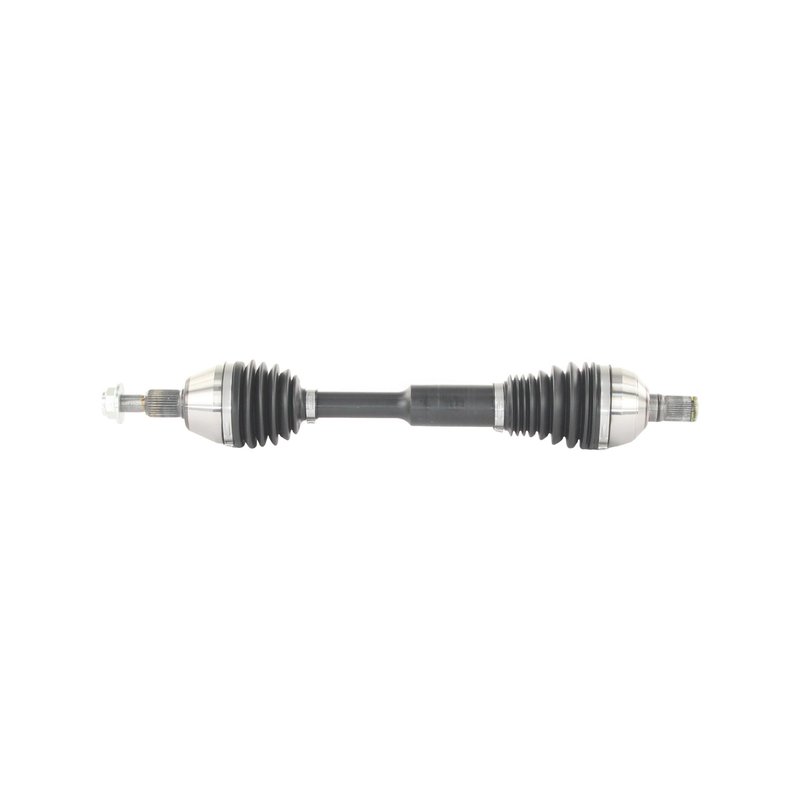

TrakMotive CH-86033 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-86033 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 24.94 |
| Overall Compressed Length (mm) | 634 |
| Overall Extended Length (in) | 27.69 |
| Overall Extended Length (mm) | 704 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 4 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Configured for non-ABS applications unless otherwise noted.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive CH-86033 for the same application. See all 1.
Front Left CV Axle Shaft for Jeep Grand Cherokee
TrakMotive CH-86033 is a premium CV axle shaft for the front left position on select 2021-2022 Jeep Grand Cherokee and Jeep Grand Cherokee L models with air suspension. It is built for direct driveline service where a conventional outboard joint and male inboard joint are required.
Key Features
- Fits 2021-2022 Jeep Grand Cherokee, front left, air suspension
- Fits 2021-2022 Jeep Grand Cherokee L, front left, air suspension
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male
- Outboard joint type: conventional
- 37 inboard splines and 32 outboard splines
- Overall compressed length: 24.94 in (634 mm)
- Overall extended length: 27.69 in (704 mm)
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive CH-86033 is a CV axle shaft from the TrakMotive CV Axle Shaft line, engineered for front left driveline replacement on the Jeep Grand Cherokee and Jeep Grand Cherokee L. The axle uses a 32 mm axle nut socket size, M22x1.5 thread size, and a 21.2/22 mm axle nut height specification. It is a direct-fit driveline component for vehicles that match the listed spline counts, joint style, and length dimensions.
This part cross-references TrakMotive CH-86033 for the same application.
Common Repair Applications
- Restores a worn or noisy front axle assembly
- Addresses vibration during acceleration or turning
- Replaces a damaged CV joint or axle shaft
- Corrects clicking or popping from the front left driveline
- Supports repair after boot failure or grease loss
Installation Notes
Verify front left fitment by matching the vehicle year, model, air suspension configuration, spline counts, and axle nut specifications before installation. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Confirm axle nut thread and socket size during service to ensure proper assembly.
Quality Assurance
TrakMotive lists this axle as a premium-grade component and states that the company is ISO 9001:2008 and TS 16949:2009 certified. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Jeep | Grand Cherokee | Front Left | Air Suspension; CV Axle Shaft |
| 2022 | Jeep | Grand Cherokee L | Front Left | Air Suspension; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Front Left | Air Suspension; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee L | Front Left | Air Suspension; CV Axle Shaft |
