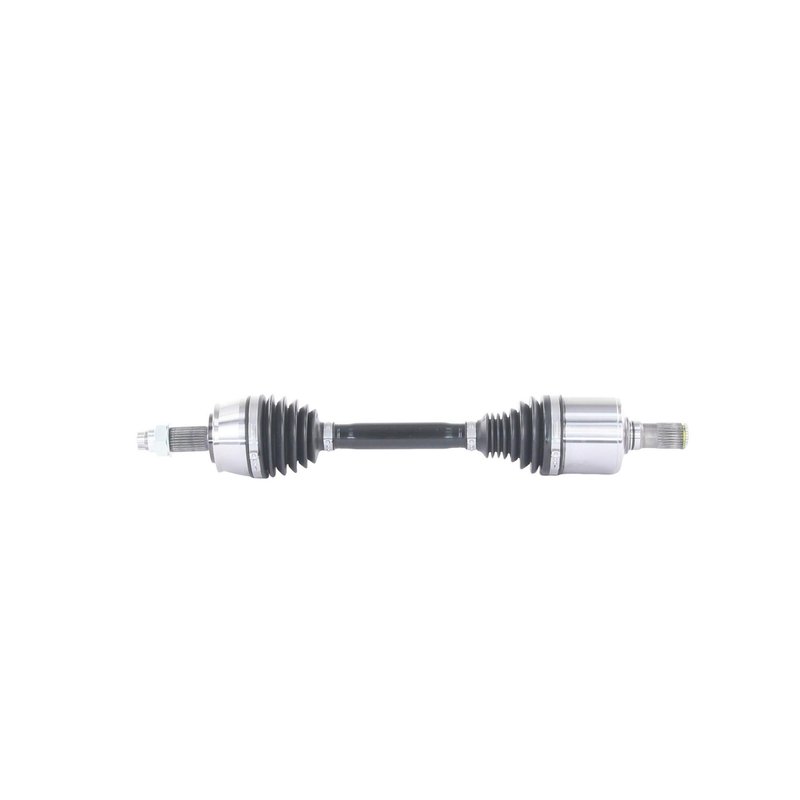

TrakMotive CH-86034 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-86034 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.63 |
| Overall Compressed Length (mm) | 600.5 |
| Overall Compressed Length (mm) | 601 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
Premium grade. A replacement CV axle shaft built for dependable driveline service.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86034 for the same application. See all 1.
Front Left CV Axle Shaft for Jeep Renegade
The TrakMotive AAR CV Axle Shaft, part number CH-86034, is built for the front left position on 2019-2020 Jeep Renegade models with OE AAR design. It is a premium driveline replacement for restoring smooth power transfer in a front-wheel-drive axle application.
Key Features
- Fits 2019-2020 Jeep Renegade, front left
- TrakMotive AAR CV Axle Shaft, part number CH-86034
- Premium-grade replacement axle shaft
- Male inboard joint with conventional outboard joint
- 30 inboard splines and 27 outboard splines
- Overall compressed length: 600.5-601 mm (23.63 in)
- 36 mm axle nut socket size with M24x1.5 thread size
- ABS tone ring not included; 0 ABS ring tooth count
Product Details
This TrakMotive CH-86034 CV axle shaft is engineered for the front left side of the 2019-2020 Jeep Renegade and follows an OE AAR design. The axle uses a male inboard joint, a conventional outboard joint, and the specified spline counts to match the original driveline layout. TrakMotive identifies this AAR CV Axle Shaft line as a premium replacement option, and the part is backed by the company’s limited lifetime warranty. TrakMotive also states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn front left CV axle on a Jeep Renegade
- Vibration during acceleration caused by axle wear or imbalance
- Grease leakage from a damaged CV joint boot or shaft assembly
- Loss of smooth torque transfer to the front wheel
- Noise from a fatigued driveline component in the front axle assembly
Installation Notes and Tips
Confirm front left fitment before ordering, especially on 2019-2020 Jeep Renegade vehicles with OE AAR design. Verify axle nut thread size, socket size, spline counts, and overall compressed length against the original part. ABS tone ring is not included, and the axle nut is not included, so reuse or source the correct hardware as needed for the vehicle.
Quality Assurance
TrakMotive supports this AAR CV Axle Shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes for consistent production control.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Jeep | Renegade | 1.3L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2019 | Jeep | Renegade | 1.3L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
