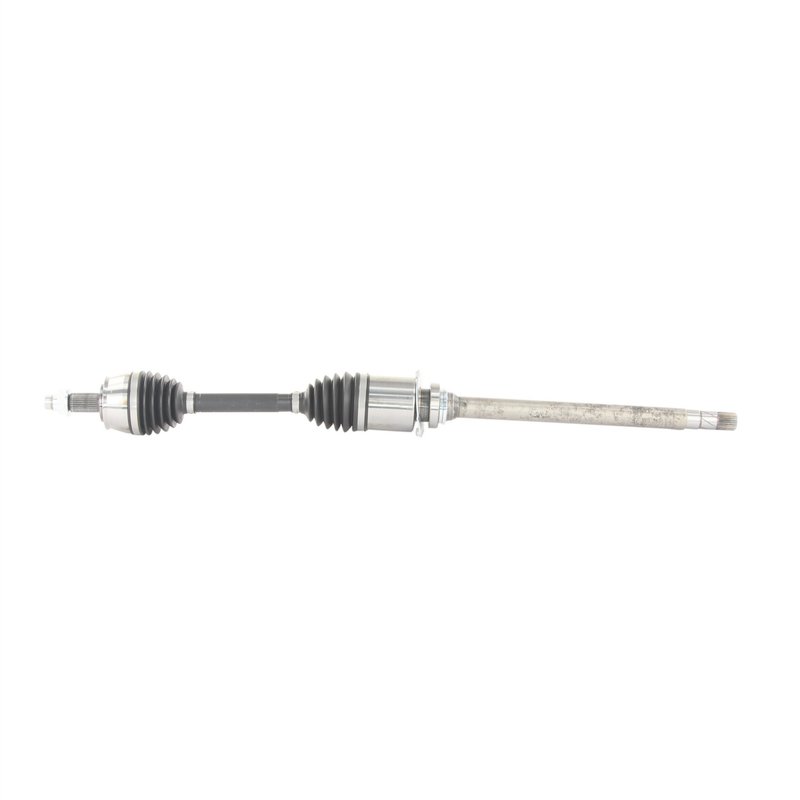

TrakMotive CH-86035 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86035 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long+male |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 39.38 |
| Overall Compressed Length (mm) | 1000 |
| Overall Extended Length (in) | 41.56 |
| Overall Extended Length (mm) | 1055.5 |
| Overall Extended Length (mm) | 1056 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 4 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86035 for the same application. See all 1.
TrakMotive CH-86035 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-86035 is a premium driveline replacement for the front right side of select Jeep Compass models. It is built for 2017-2020 Jeep Compass applications, including OE AAR design coverage for 2018-2020 models and the 2017 new style Compass with the horizontal rear door handle.
Key Features
- Front right CV axle shaft for select Jeep Compass applications
- Premium grade construction for driveline service replacement
- Long-male inboard joint design
- Conventional outboard joint type
- 25 inboard splines and 27 outboard splines
- No ABS tone ring included; ABS ring tooth count is 0
- Axle nut thread size: M24x1.5
- Overall compressed length: 39.38 in (1000 mm)
- Overall extended length: 41.56 in (1055.5-1056 mm)
Product Details
TrakMotive CH-86035 is part of the AAR CV Axle Shaft line, a fitment-specific driveline solution for vehicles that require the OE AAR design. This axle shaft is engineered for the front right position on the Jeep Compass and matches the listed spline counts, joint style, and length specifications for proper replacement selection. TrakMotive identifies this part as a premium-grade component and notes ISO 9001:2008 and TS 16949:2009 certified company standards.
This part cross-references TrakMotive CH-86035 for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a failing CV boot or joint assembly
- Driveline noise caused by spline or joint wear
- Front right axle replacement needs on Jeep Compass models
Installation Notes
Compatible With 2018-2020 Jeep Compass, front right, OE AAR design; AAR CV Axle Shaft. Compatible With 2017 Jeep Compass, front right, new style (horizontal rear door handle); AAR CV Axle Shaft. Verify axle nut thread size, spline count, and overall length before installation. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certification, supporting consistent manufacturing and quality control for driveline replacement parts.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Jeep | Compass | FWD | Manual | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Jeep | Compass | FWD | Manual | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Jeep | Compass | FWD | Manual | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Jeep | Compass | FWD | Manual | Front Right | new style (horizontal rear door handle); AAR CV Axle Shaft |
