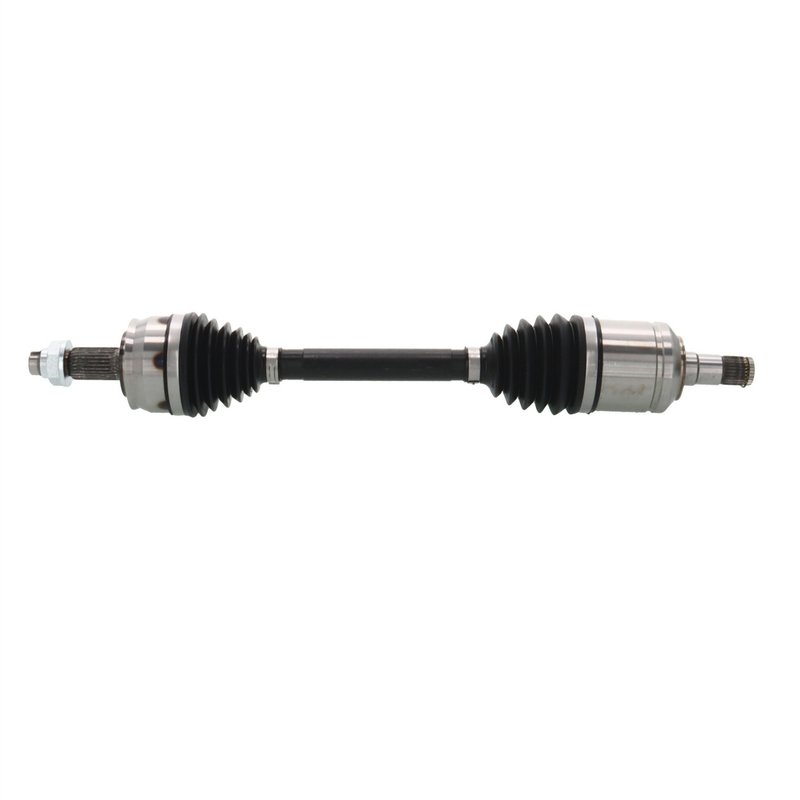

TrakMotive CH-86036 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-86036 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 24.25 |
| Overall Compressed Length (mm) | 676 |
| Overall Extended Length (in) | 26.44 |
| Overall Extended Length (mm) | 671.5 |
| Overall Extended Length (mm) | 672 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
AAR CV axle shaft. Premium driveline replacement for smooth power transfer.
ABS tone ring omitted. For non-ABS applications unless otherwise noted.
ISO certified manufacturing. Built under ISO 9001:2008 and TS 16949:2009 standards.
Cross-references TrakMotive CH-86036 for the same application. See all 1.
Front Left CV Axle Shaft for Jeep Compass
The TrakMotive AAR CV Axle Shaft CH-86036 is a premium replacement axle for the front left side of select Jeep Compass models. It is built for 2017-2022 Jeep Compass applications, including the 2017 new style model with the horizontal rear door handle and 2018-2022 standard duty replacement applications.
Key Features
- TrakMotive AAR CV Axle Shaft, part number CH-86036
- Front left position for select Jeep Compass applications
- Male inboard joint with conventional outboard joint design
- 26 inboard splines and 27 outboard splines
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 24.25 in (676 mm)
- Overall extended length: 26.44 in (671.5-672 mm)
- Axle nut thread size: M24x1.5; socket size: 36 mm
Product Details
This TrakMotive CV axle shaft is engineered for direct replacement service on the front left side of the Jeep Compass. The AAR CV Axle Shaft line focuses on application-specific driveline fitment, and CH-86036 follows the listed spline counts, joint style, and length specifications needed for the correct installation on covered vehicles. It is a premium-grade driveline component from an ISO 9001:2008 and TS 16949:2009 certified company.
This part cross-references TrakMotive CH-86036 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a failing driveline joint boot assembly
- Excessive play or noise in the front left axle assembly
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify axle nut thread size, spline counts, and overall length before installation. This axle uses a 36 mm axle nut socket size and M24x1.5 thread specification, and the axle nut is not included. Confirm whether the vehicle is the 2017 new style Jeep Compass or a 2018-2022 standard duty replacement application before ordering.
Quality Assurance
TrakMotive backs this AAR CV Axle Shaft with a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and the company is certified to ISO 9001:2008 and TS 16949:2009 standards.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Jeep | Compass | FWD | — | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2021 | Jeep | Compass | FWD | — | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2020 | Jeep | Compass | FWD | Automatic | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2019 | Jeep | Compass | FWD | Automatic | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2018 | Jeep | Compass | FWD | Automatic | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2017 | Jeep | Compass | FWD | Automatic | Front Left | New Style (Horizontal Rear Door Handle); AAR CV Axle Shaft |
