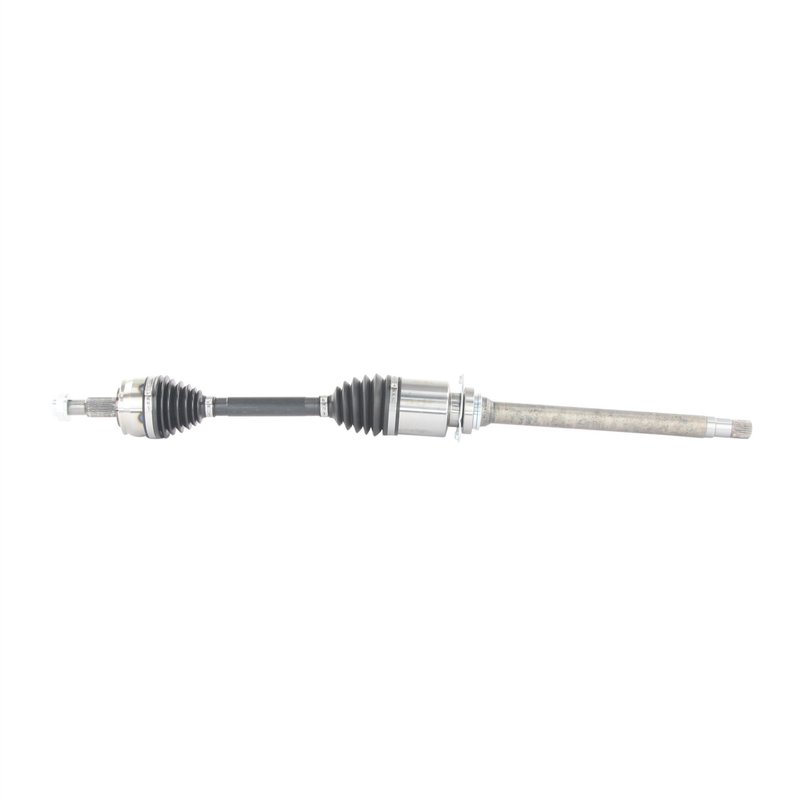

TrakMotive CH-86037 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86037 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24*1.5 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long+male |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 37.88 |
| Overall Compressed Length (mm) | 961.5 |
| Overall Compressed Length (mm) | 962 |
| Overall Extended Length (in) | 40.06 |
| Overall Extended Length (mm) | 1017 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86037 for the same application. See all 1.
Front Right CV Axle Shaft for Jeep Compass
The TrakMotive AAR CV Axle Shaft CH-86037 is a premium replacement axle for the front right position on select Jeep Compass models. It is built for OE AAR design applications and is specified for 2017-2022 Jeep Compass fitment, including the 2017 new style model with the horizontal rear door handle.
Key Features
- Front right CV axle shaft for select Jeep Compass applications
- OE AAR design replacement for the listed fitments
- Premium grade construction
- Inboard joint type: long-male
- Outboard joint type: conventional
- 26 inboard splines and 27 outboard splines
- Axle nut thread size: M24x1.5
- Overall compressed length: 961.5 mm (37.88 in)
- Overall extended length: 1017 mm (40.06 in)
Product Details
TrakMotive CH-86037 is part of the AAR CV Axle Shaft line, a product line focused on OE-style driveline replacement for specific vehicle applications. This axle is engineered for the front right side of the Jeep Compass and matches the listed spline counts, joint style, and length specifications needed for proper driveline fitment. It is a direct replacement choice for 2018-2022 Jeep Compass front right applications and the 2017 Jeep Compass front right new style configuration.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn or failing front right axle assembly
- Driveline issues caused by spline or length mismatch
Installation Notes
Verify front right fitment, axle nut thread size, spline count, and overall length before installation. This axle uses a 36 mm axle nut socket size and does not include an axle nut. ABS tone ring is not included, and the axle is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive states that this AAR CV Axle Shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certified company standards.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Jeep | Compass | FWD | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Jeep | Compass | FWD | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Jeep | Compass | FWD | Automatic | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Jeep | Compass | FWD | Automatic | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Jeep | Compass | FWD | Automatic | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Jeep | Compass | FWD | Automatic | Front Right | new style (horizontal rear door handle); AAR CV Axle Shaft |
