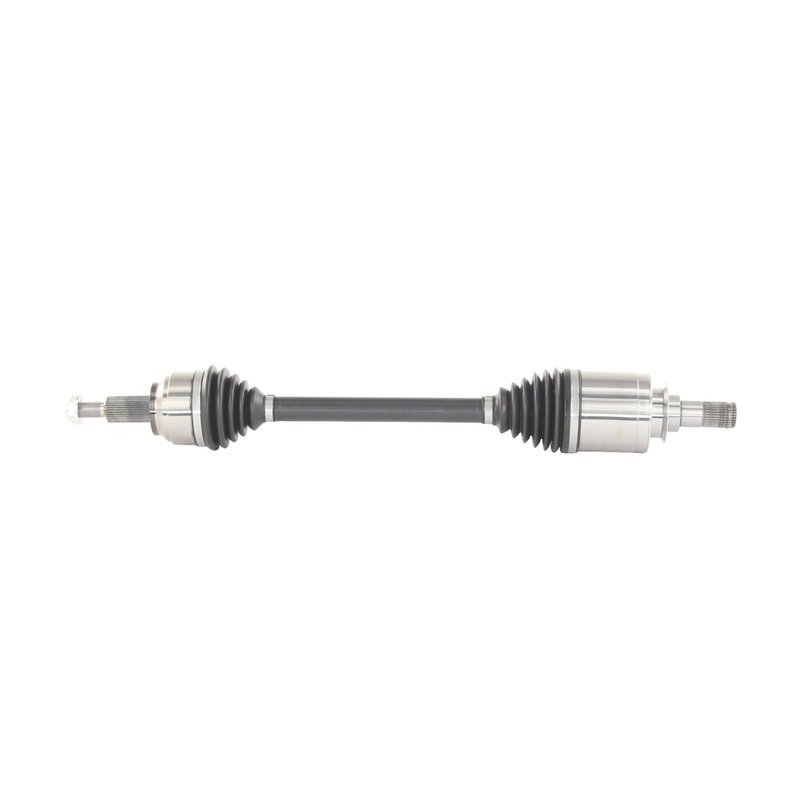

TrakMotive CH-86038 CV Axle Shaft - Rear Right
| Brand | TrakMotive CH-86038 |
|---|---|
| Position | Rear Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32 3/4 |
| Overall Compressed Length (mm) | 832.5 |
| Overall Extended Length (in) | 35 5/16 |
| Overall Extended Length (in) | 35.31 |
| Overall Extended Length (mm) | 897 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
OE-style replacement. CV axle shaft with spline connections for straightforward installation.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86038 for the same application. See all 1.
TrakMotive CV Axle Shaft CH-86038
TrakMotive CH-86038 is a premium CV axle shaft for the rear right position on select Jeep Grand Cherokee applications. It is built for 2018-2019 Jeep Grand Cherokee models with an electronic locking differential and limited slip setup, providing the correct spline counts, joint design, and axle nut specifications for the listed application.
Key Features
- Fits 2018-2019 Jeep Grand Cherokee, rear right
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- 32 inboard splines and 35 outboard splines
- Thermoplastic inboard and outboard joint boots
- Axle nut included with self-lock design, M22 x 1.5 thread
- No ABS tone ring included
- Overall compressed length: 32 3/4 in. Overall extended length: 35 5/16 in.
Detailed Description
This TrakMotive CV axle shaft, part number CH-86038, is engineered for the rear right side of the Jeep Grand Cherokee in the confirmed 2018-2019 fitment range. The axle uses a male inboard joint, a conventional outboard joint, and spline-style shaft connections to match the listed driveline configuration. It also includes the axle nut and uses a hex head nut design with a 32 mm socket size, helping simplify replacement on the specified vehicle.
TrakMotive positions this CV axle shaft as a premium driveline component and backs its manufacturing with ISO 9001:2008 and TS 16949:2009 certified quality systems. For buyers searching for a rear right CV axle shaft for 2018-2019 Jeep Grand Cherokee models with electronic locking differential and limited slip notes, CH-86038 is the direct application match.
What It Helps Address
- Clicking or popping noises from a worn CV axle assembly
- Vibration during acceleration from driveline wear
- Axle shaft play caused by damaged splines or joints
- Boot deterioration that can lead to grease loss and joint contamination
- Rear driveline service needs on the specified Jeep Grand Cherokee application
Installation Notes and Tips
Verify rear right position, spline count, axle nut thread size, and overall length before installation. Confirm the vehicle is a 2018-2019 Jeep Grand Cherokee with the listed electronic locking differential and limited slip notes, since axle configuration must match the original application. Inspect hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or premature wear.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. The part is covered by a limited lifetime warranty. This part cross-references TrakMotive CH-86038 for the same application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Jeep | Grand Cherokee | AWD | 6.2L | V8 | Rear Right | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
| 2018 | Jeep | Grand Cherokee | AWD | 6.2L | V8 | Rear Right | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
