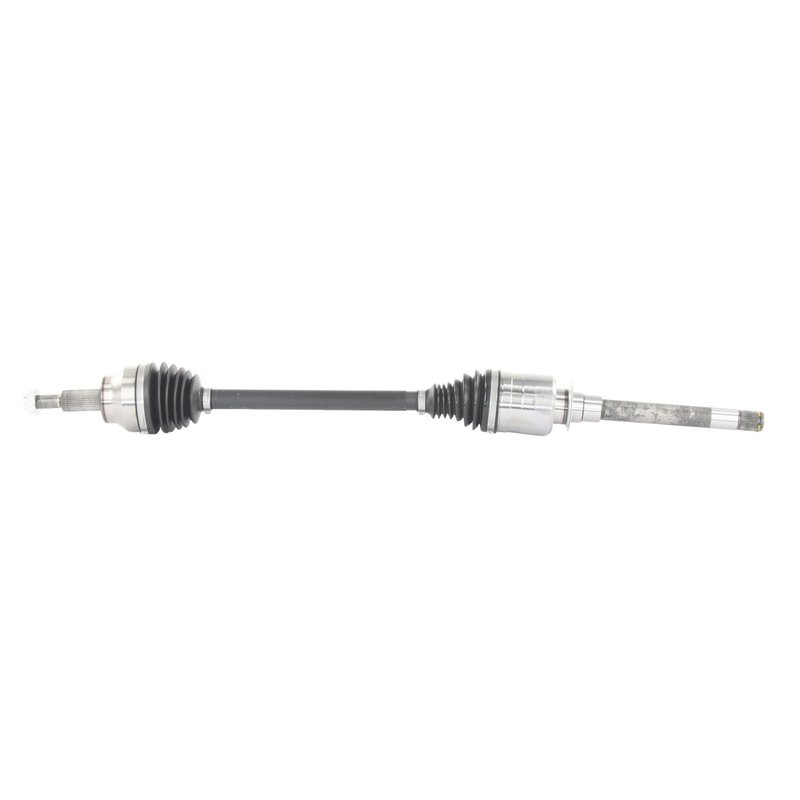

TrakMotive CH-86039 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86039 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long+male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40 3/4 |
| Overall Compressed Length (mm) | 1035 |
| Overall Extended Length (in) | 43 1/8 |
| Overall Extended Length (in) | 43.125 |
| Overall Extended Length (mm) | 1095.5 |
| Overall Extended Length (mm) | 1096 |
| Product line | AAR CV Axle Shaft |
| Fits | Dodge and Jeep · 7 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
Spline connection. Inboard and outboard shafts use spline engagement for secure power transfer.
Axle nut included. Comes with a self-locking nut for a complete installation.
Cross-references TrakMotive CH-86039 for the same application. See all 1.
Front Right CV Axle Shaft for OE AAR Applications
The TrakMotive AAR CV Axle Shaft CH-86039 is a premium driveline replacement for front right applications that require OE AAR design. It is built for 2023-2024 Dodge Durango, 2021 Dodge Durango, 2022 Jeep Grand Cherokee WK, and 2018-2020 Jeep Grand Cherokee front right positions with the specified Quadra-Trac option on Grand Cherokee models.
TrakMotive CH-86039 is engineered as a direct-fit CV axle shaft with spline-style shaft connections, thermoplastic boots, and a self-lock axle nut included for the listed applications. This part number is a practical choice when replacing a worn or noisy front axle on a Dodge Durango or Jeep Grand Cherokee platform.
- Part number: CH-86039
- Brand line: AAR CV Axle Shaft
- Fits 2023-2024 Dodge Durango, front right
- Fits 2021 Dodge Durango, front right
- Fits 2022 Jeep Grand Cherokee WK, front right
- Fits 2018-2020 Jeep Grand Cherokee, front right, Option DHB (Quadra-Trac)
- Premium-grade CV axle shaft for OE AAR design applications
- Inboard joint type: long+Male with 37 inboard splines
- Outboard joint type: conventional with 32 outboard splines
- Thermoplastic inboard and outboard joint boots
- Axle nut included, M22 x 1.5 thread, self-lock style
Detailed Product Overview
TrakMotive CH-86039 is a front right CV axle shaft built for specific Dodge and Jeep driveline configurations. The axle uses spline connections at both ends, a long+Male inboard joint, and a conventional outboard joint to match the OE AAR design called out in the fitment data. Overall compressed length is 40 3/4 inches, and overall extended length is 43 1/8 inches, helping confirm application-specific fitment for the listed vehicles.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn front right CV joint
- Vibration during acceleration from a damaged axle shaft
- Torn or deteriorated axle boots that expose the joint to contamination
- Excessive play or noise in the front driveline
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify the vehicle’s front right application, OE AAR design, and Grand Cherokee Quadra-Trac option before ordering. Confirm axle nut thread size M22 x 1.5 and socket size 32 mm during service planning. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle shaft.
Quality Assurance
TrakMotive lists this AAR CV Axle Shaft under a limited lifetime warranty. The manufacturer also states ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this replacement axle shaft.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Dodge | Durango | SRT Hellcat Premium | 6.2L | V8 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2023 | Dodge | Durango | SRT Hellcat Premium | 6.2L | V8 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2022 | Jeep | Grand Cherokee WK | Limited | 3.6L | V6 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Dodge | Durango | SRT Hellcat | 6.2L | V8 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Jeep | Grand Cherokee | Upland | — | — | Front Right | Option DHB (Quadra-Trac); AAR CV Axle Shaft |
| 2019 | Jeep | Grand Cherokee | Upland | — | — | Front Right | Option DHB (Quadra-Trac); AAR CV Axle Shaft |
| 2018 | Jeep | Grand Cherokee | Trailhawk | — | — | Front Right | Option DHB (Quadra-Trac); AAR CV Axle Shaft |
