TrakMotivePart #: CH-86040

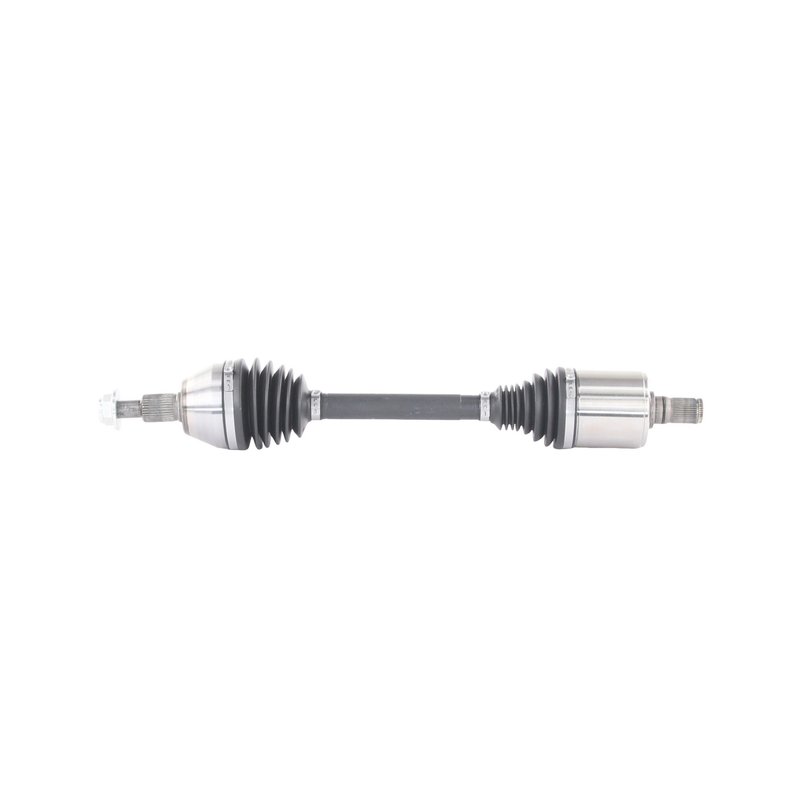

TrakMotive CH-86040 CV Axle Shaft - Front Left
⚙️ 2 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$168.37Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦AAR CV Axle Shaft, Front Left
🚗Fitment: Jeep, Grand Cherokee
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options
TrakMotive CH-86040 CV Axle Shaft - Front Left
| Brand | TrakMotive |
| Part Number | CH-86040 |
| Position | AAR CV Axle Shaft, Front Left |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 13/16 |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25 1/2 |
| Overall Compressed Length (mm) | 647.5 |
| Overall Extended Length (in) | 28 1/16 |
| Overall Extended Length (in) | 28.06 |
| Overall Extended Length (mm) | 713 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Jeep | Grand Cherokee | Front Left | Standard Suspension; AAR CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Front Left | Standard Suspension; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
CH-86040
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
