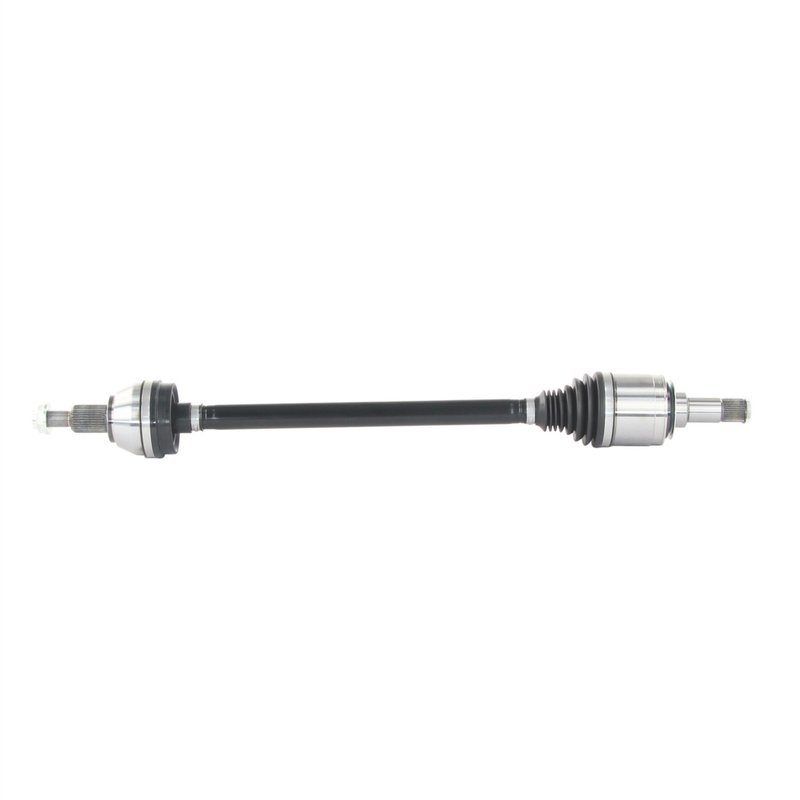

TrakMotive CH-86041 CV Axle Shaft - Rear Right
| Brand | TrakMotive CH-86041 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 33.75 |
| Overall Compressed Length (mm) | 857 |
| Overall Extended Length (in) | 35.56 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 4 vehicles |
OE-style replacement. Premium CV axle shaft with spline connections for straightforward installation.
ABS-ready design. Built for non-ABS applications and includes no tone ring.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Cross-references TrakMotive CH-86041 for the same application. See all 1.
Rear Right CV Axle Shaft for Jeep Grand Cherokee
TrakMotive CH-86041 is a premium CV axle shaft for the rear right position on select Jeep Grand Cherokee models. It is built with a conventional outboard joint, a male inboard joint, and thermoplastic boots for dependable driveline service on 2021-2024 applications.
Key Features
- Fits 2021 Jeep Grand Cherokee, rear right, VIN J and K, 6th Digit
- Fits 2022-2024 Jeep Grand Cherokee, rear right, VIN J and VIN K, 6th Digit
- Premium-grade CV axle shaft for driveline replacement
- Inboard spline count: 37; outboard spline count: 35
- Overall compressed length: 33.75 in. (857 mm); overall extended length: 35.56 in. (904 mm)
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
TrakMotive CV Axle Shaft CH-86041 is engineered for rear right driveline service on the Jeep Grand Cherokee. The axle uses a spline-style inboard shaft connection, a conventional outboard joint, and thermoplastic boot materials at both ends. It also includes the axle nut specified for the application, with a 32 mm socket size and hex head design. TrakMotive backs this CV axle line with ISO 9001:2008 and TS 16949:2009 certified manufacturing standards.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping from the rear axle area during acceleration or turning
- Vibration or shudder from worn CV joints
- Torn axle boots with grease leakage
- Excessive driveline play or noise at the rear right wheel end
- Replacement after axle shaft wear or joint damage
Installation Notes
Verify VIN digit and rear right position before ordering, since this axle is listed for specific 2021-2024 Jeep Grand Cherokee configurations. Confirm axle nut thread size, hex size, and compressed length against the original part before installation. ABS tone ring is not included, and this axle is listed for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. CH-86041 is covered by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Jeep | Grand Cherokee | Rear Right | VIN J and VIN K, 6th Digit; CV Axle Shaft |
| 2023 | Jeep | Grand Cherokee | Rear Right | VIN J and VIN K, 6th Digit; CV Axle Shaft |
| 2022 | Jeep | Grand Cherokee | Rear Right | VIN J and VIN K, 6th Digit; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Rear Right | VIN J and K, 6th Digit; CV Axle Shaft |
