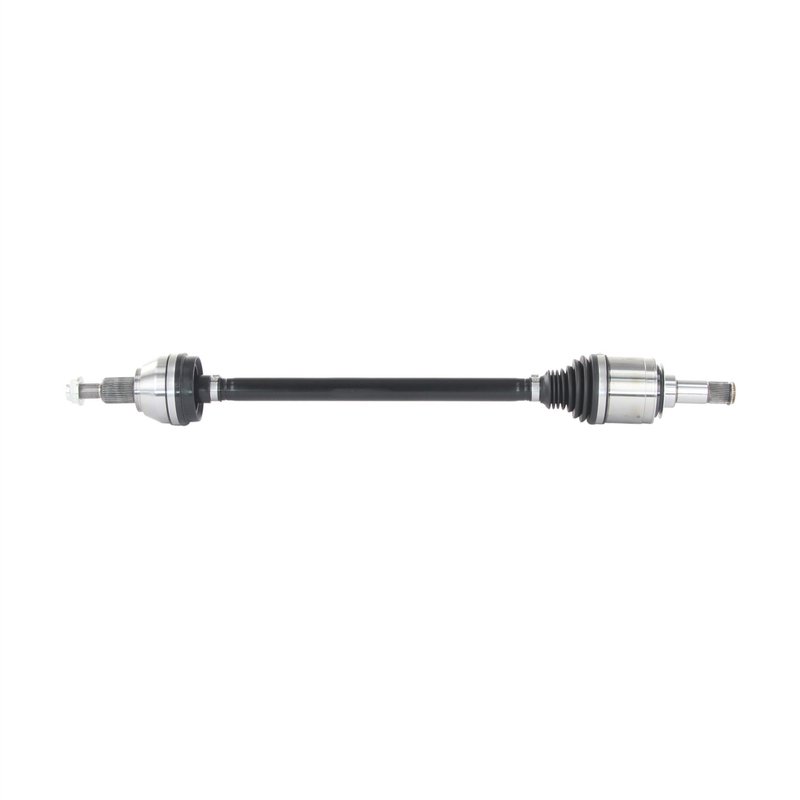

TrakMotive CH-86042 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86042 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34.19 |
| Overall Compressed Length (mm) | 869 |
| Overall Extended Length (in) | 36 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 4 vehicles |
OE-style replacement. Built as a CV axle shaft with a direct-fit, spline-connected design.
Thermoplastic boots. Durable boot material helps protect the joints from wear and contamination.
Includes axle nut. Self-locking nut is included for a more complete installation.
Cross-references TrakMotive CH-86042 for the same application. See all 1.
TrakMotive CH-86042 Rear Left CV Axle Shaft
TrakMotive CH-86042 is a premium CV axle shaft for the rear left position on select Jeep Grand Cherokee models. It is built for 2021-2024 Jeep Grand Cherokee applications with VIN J and VIN K, 6th digit, and is supplied with a self-lock axle nut for the listed fitment.
Key Features
- Direct-fit CV axle shaft for the rear left side
- Fits 2021-2024 Jeep Grand Cherokee, rear left
- Premium-grade driveline component
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- 37 inboard splines and 35 outboard splines
- Thermoplastic boot material on both joints
- Axle nut included: M22x1.5, 32 mm hex, self-lock design
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft, part number CH-86042, is engineered for rear left driveline service on the Jeep Grand Cherokee. The axle measures 34.19 inches compressed and 36 inches extended, with a male inboard joint and conventional outboard joint for the specified vehicle configuration. TrakMotive identifies this part line as a premium CV axle shaft, and the company states its products are backed by a limited lifetime warranty and manufactured under ISO 9001:2008 and TS 16949:2009 quality systems.
This part cross-references TrakMotive CH-86042 for the same application.
Common Repair Uses
- Replacing a worn or noisy rear left CV axle on a 2021-2024 Jeep Grand Cherokee
- Addressing clicking, vibration, or driveline shudder during acceleration
- Restoring proper axle shaft engagement after boot or joint wear
- Correcting axle-related noise from the rear driveline
- Replacing a damaged axle assembly on VIN J or VIN K 6th-digit vehicles
Installation Notes
Verify the vehicle’s VIN J or VIN K, 6th digit, before ordering. Confirm rear left position, spline count, axle nut thread size, and overall axle length against the original part. Use the included axle nut only when it matches the vehicle specification, and inspect surrounding seals, hubs, and suspension components during installation.
Quality Assurance
TrakMotive states this CV axle shaft is covered by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Jeep | Grand Cherokee | Rear Left | VIN J and VIN K, 6th Digit; CV Axle Shaft |
| 2023 | Jeep | Grand Cherokee | Rear Left | VIN J and VIN K, 6th Digit; CV Axle Shaft |
| 2022 | Jeep | Grand Cherokee | Rear Left | VIN J and VIN K, 6th Digit; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Rear Left | VIN J and VIN K, 6th Digit; CV Axle Shaft |
