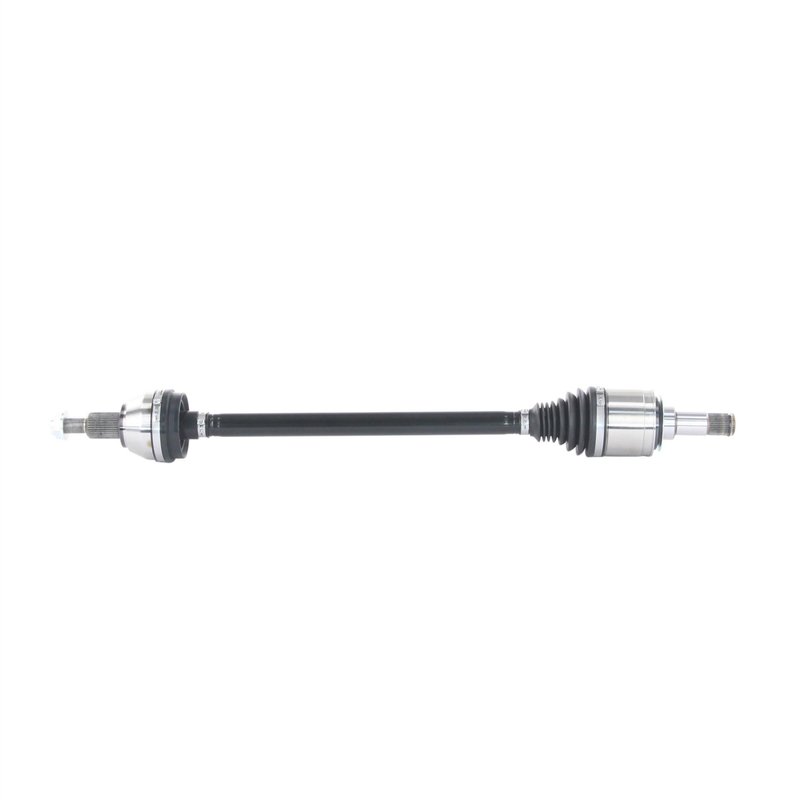

TrakMotive CH-86043 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86043 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34.19 |
| Overall Compressed Length (mm) | 869 |
| Overall Extended Length (in) | 36 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 4 vehicles |
OE-style replacement. Built as a CV axle shaft for straightforward service.
Thermoplastic boots. Durable boot material helps protect the joints.
Axle nut included. Self-locking nut with a 32 mm hex size.
Cross-references TrakMotive CH-86043 and NCV82082 for the same application. See all 2.
Rear Left CV Axle Shaft for Grand Cherokee
TrakMotive CH-86043 is a premium CV axle shaft for the rear left position on select Jeep Grand Cherokee models. It is built for 2021-2024 Jeep Grand Cherokee applications with a 2 speed transfer case and standard suspension, and it includes the axle nut for service replacement.
Key Features
- Fits 2021-2024 Jeep Grand Cherokee, rear left
- Premium-grade CV axle shaft for driveline service
- Overall compressed length: 34.19 in. (869 mm)
- Overall extended length: 36 in. (915 mm)
- Inboard splines: 37; outboard splines: 35
- Thermoplastic boot material on inboard and outboard joints
- Hex axle nut included, M22x1.5 thread, 32 mm socket size
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft, part number CH-86043, is engineered for rear left driveline replacement on the Jeep Grand Cherokee. The axle uses a male inboard joint with spline connection and a conventional outboard joint with spline connection, matching the listed vehicle configuration. TrakMotive positions the CV Axle Shaft line as a premium driveline solution, and the company notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing process.
This part cross-references Monroe Shocks & Struts (e.g., NCV82082) for the same application.
Common Repair Uses
- Restores drivetrain operation after a worn or noisy rear axle
- Addresses clicking, vibration, or binding from CV joint wear
- Replaces a damaged axle shaft on the rear left side
- Supports service work on 2021-2024 Jeep Grand Cherokee models with the listed transfer case and suspension setup
Installation Notes
Verify rear left fitment before installation by matching the vehicle year, transfer case type, suspension, spline counts, and axle nut specifications. The included axle nut uses a 32 mm hex size and M22x1.5 thread. Confirm that the vehicle does not require an ABS tone ring on this application, since this axle is listed without one.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certification for its manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Jeep | Grand Cherokee | Rear Left | 2 Speed Transfer Case, Standard Suspension; CV Axle Shaft |
| 2023 | Jeep | Grand Cherokee | Rear Left | 2 Speed Transfer Case, Standard Suspension; CV Axle Shaft |
| 2022 | Jeep | Grand Cherokee | Rear Left | 2 Speed Transfer Case, Standard Suspension; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Rear Left | 2 Speed Transfer Case, Standard Suspension; CV Axle Shaft |
