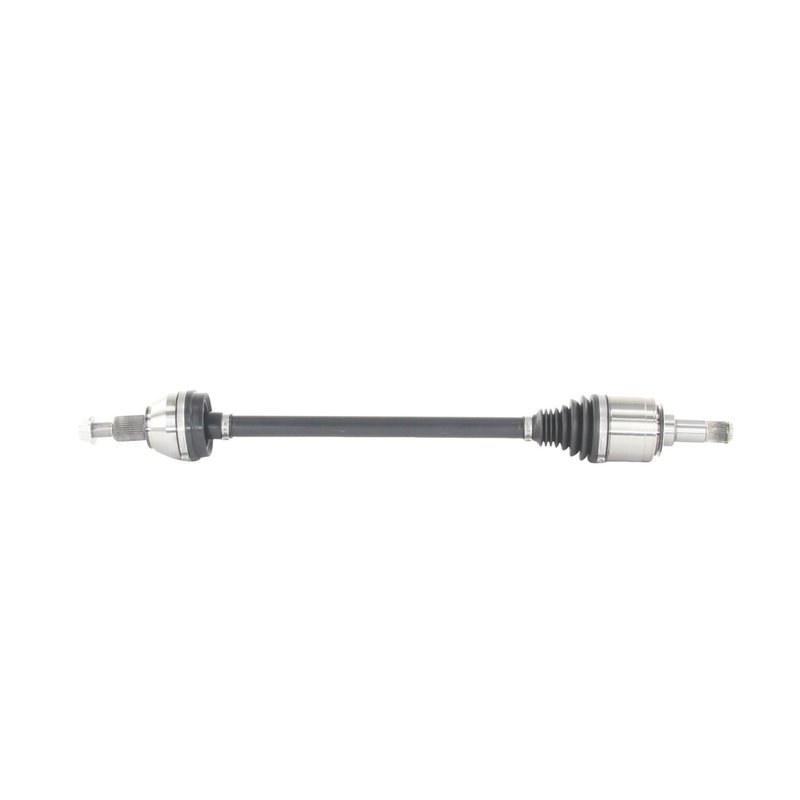

TrakMotive CH-86044 CV Axle Shaft - Rear Right
| Brand | TrakMotive CH-86044 |
|---|---|
| Position | Rear Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 33 11/16 |
| Overall Compressed Length (mm) | 855 |
| Overall Extended Length (in) | 35 1/2 |
| Overall Extended Length (in) | 35.5 |
| Overall Extended Length (mm) | 901.5 |
| Overall Extended Length (mm) | 902 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
OE-style replacement. Premium CV axle shaft with spline connections for a precise fit.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Axle nut included. Self-locking nut is included for a more complete install.
Cross-references TrakMotive CH-86044 for the same application. See all 1.
Rear Right CV Axle Shaft for Grand Cherokee
TrakMotive CH-86044 is a premium CV axle shaft for the rear right position on the 2021-2022 Jeep Grand Cherokee with air suspension. It is built with spline-style shaft connections, thermoplastic boots, and a supplied axle nut for a direct replacement on the specified application.
Key Features
- Fits 2021-2022 Jeep Grand Cherokee, rear right
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: male with 37 inboard splines
- Outboard joint type: conventional with 35 outboard splines
- Thermoplastic inboard and outboard joint boots
- Axle nut included with M22 x 1.5 thread size and self-lock design
- No ABS tone ring included
- Overall compressed length: 33 11/16 in; overall extended length: 35 1/2 in
Product Details
TrakMotive CV Axle Shaft CH-86044 is engineered for the rear right driveline position on the Jeep Grand Cherokee platform listed above. The axle uses spline connections at both ends, a male inboard joint, and a conventional outboard joint to match the specified vehicle configuration. TrakMotive identifies this part as a premium-grade replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping from the rear axle area during turns or acceleration
- Vibration or shudder from a worn CV joint
- Torn or deteriorated axle boots
- Excessive driveline play at the rear right wheel end
- Noise after CV axle wear on a 2021-2022 Jeep Grand Cherokee, rear right
Installation Notes
Verify rear right fitment, air suspension configuration, spline count, and axle length before installation. Confirm the axle nut thread size and socket size match the vehicle hardware, and inspect related seals, hubs, and suspension components during service. Because this axle is listed without an ABS tone ring, confirm the vehicle’s ABS setup before ordering.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that its production is supported by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Jeep | Grand Cherokee | Rear Right | Air Suspension; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Rear Right | Air Suspension; CV Axle Shaft |
