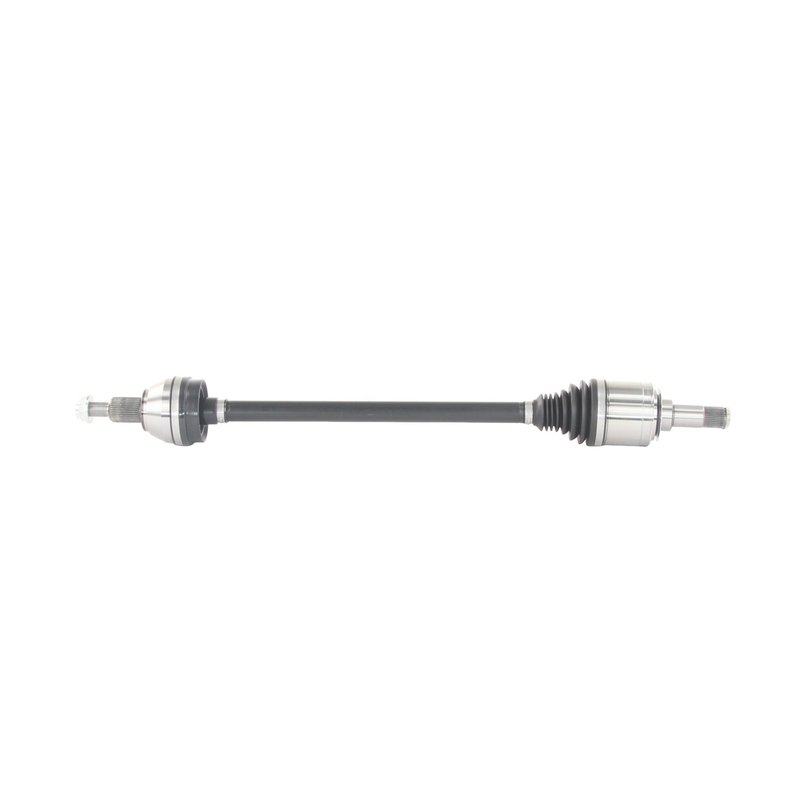

TrakMotive CH-86045 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86045 |
|---|---|
| Position | Rear Left |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34 1/8 |
| Overall Compressed Length (mm) | 866 |
| Overall Extended Length (in) | 35 15/16 |
| Overall Extended Length (in) | 35.94 |
| Overall Extended Length (mm) | 912.5 |
| Overall Extended Length (mm) | 913 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
OE-style replacement. Premium CV axle shaft with a direct-fit design for straightforward installation.
Thermoplastic boots. Durable boot material helps protect the joints from wear and contamination.
Self-locking axle nut. Includes a hex nut for secure fastening during service.
Cross-references TrakMotive CH-86045 and NCV82081 for the same application. See all 2.
Rear Left CV Axle Shaft for Grand Cherokee
TrakMotive CH-86045 is a premium CV axle shaft for the rear left position on the 2021-2022 Jeep Grand Cherokee with air suspension. It is built with spline-style shaft connections and thermoplastic boots to support smooth driveline operation in the specified application.
Key Features
- Fits 2021-2022 Jeep Grand Cherokee, rear left
- Premium-grade CV axle shaft for driveline and axle service
- Inboard joint type: male with 37 inboard splines
- Outboard joint type: conventional with 35 outboard splines
- Thermoplastic boot material on both inboard and outboard joints
- Includes axle nut with self-lock design, M22 x 1.5 thread
- Overall compressed length: 34 1/8 in (866 mm)
- Overall extended length: 35 15/16 in (913 mm)
- ABS tone ring not included
Product Details
TrakMotive CV Axle Shaft CH-86045 is engineered for the rear left side of the Jeep Grand Cherokee platform listed above. The axle uses a spline connection at both ends, a male inboard joint, and a conventional outboard joint to match the confirmed application. TrakMotive identifies this part as a premium-grade driveline component, and the axle nut is included with a hex head, self-locking design, and 32 mm socket size. This part cross-references NCV82081 for the same application.
Common Driveline Symptoms This Part Can Address
- Clicking or popping from the rear driveline during turns or load changes
- Vibration felt through the vehicle under acceleration
- Grease leakage from damaged CV boots
- Excessive play or wear in the axle assembly
- Noise from a worn rear left CV axle on a 2021-2022 Jeep Grand Cherokee
Installation Notes
Confirm rear left fitment before installation on the 2021-2022 Jeep Grand Cherokee, including air suspension configuration. Verify spline count, axle nut thread size, and overall axle length against the removed part before assembly. The axle nut is included; ABS tone ring is not included. Follow factory service procedures for torque values and final inspection after installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this driveline component.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Jeep | Grand Cherokee | Rear Left | Air Suspension; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Rear Left | Air Suspension; CV Axle Shaft |
