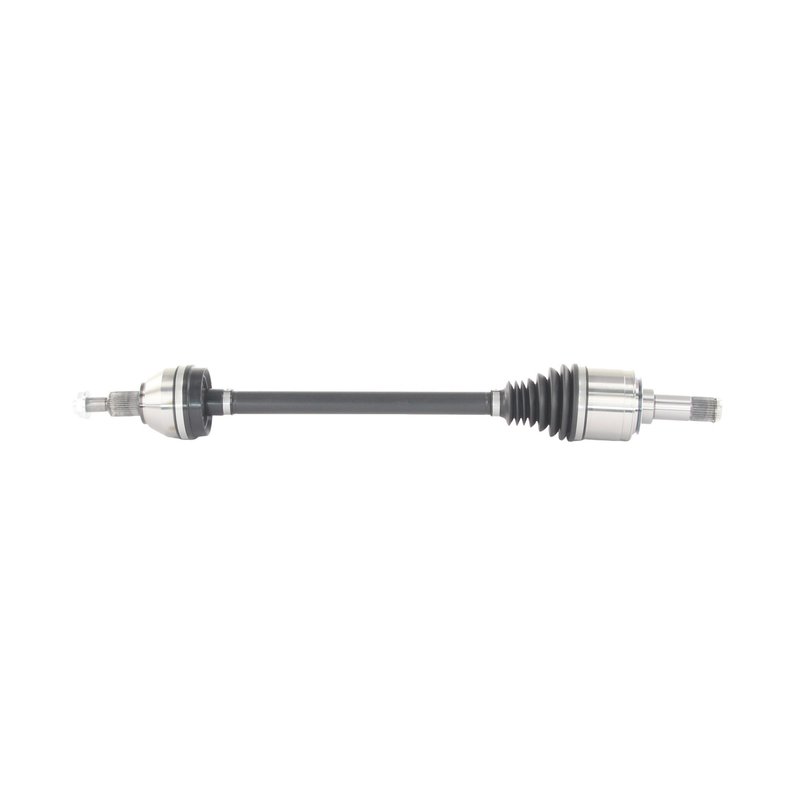

TrakMotive CH-86046 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86046 |
|---|---|
| Position | Rear Left |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34 3/16 |
| Overall Compressed Length (mm) | 868 |
| Overall Extended Length (in) | 36 |
| Overall Extended Length (mm) | 914 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
OE-style replacement. CV axle shaft with included axle nut for a straightforward install.
Thermoplastic boots. Help protect the joints while keeping the assembly flexible.
Premium grade. Built as a certified driveline component from TrakMotive.
Cross-references TrakMotive CH-86046 and NCV82083 for the same application. See all 2.
Rear Left CV Axle Shaft for Jeep Grand Cherokee
Restore driveline performance with this TrakMotive CV Axle Shaft, part number CH-86046, for the rear left position on the 2021-2022 Jeep Grand Cherokee. Built as a premium-grade replacement axle, it is engineered for non-locking applications and includes the axle nut for a more complete service replacement.
Key Features
- Fits 2021-2022 Jeep Grand Cherokee, rear left
- TrakMotive CV Axle Shaft, part number CH-86046
- Premium grade replacement for driveline service
- 32-spline inboard connection and 35-spline outboard connection
- Thermoplastic inboard and outboard joint boots
- Includes axle nut with M22 x 1.5 thread size
- No ABS tone ring included
- Overall compressed length: 34 3/16 in. (868 mm)
- Overall extended length: 36 in. (914 mm)
Product Details
The TrakMotive CH-86046 CV axle shaft is a direct-fit driveline component for the rear left side of the Jeep Grand Cherokee. It uses a male inboard joint with spline connection, a conventional outboard joint, and thermoplastic boot materials to support consistent operation in the axle assembly. This part is intended for non-locking applications and is backed by TrakMotive’s limited lifetime warranty. TrakMotive manufactures to ISO 9001:2008 and TS 16949:2009 certified quality systems, and this axle cross-references Monroe Shocks & Struts NCV82083 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises from the rear axle area during turns or load changes
- Vibration felt through the driveline during acceleration
- Worn or damaged CV joints affecting rear axle operation
- Torn axle boots that can lead to grease loss and joint wear
- Axle shaft replacement needs on a 2021-2022 Jeep Grand Cherokee, rear left
Installation Notes and Tips
Verify rear left fitment before installation and confirm the vehicle is a non-locking application. Inspect the axle seals, hub interface, and surrounding suspension components during service, and replace any worn hardware or damaged mating parts as needed. Confirm axle nut thread size and socket fitment before tightening to specification.
Quality Assurance
TrakMotive supports this CV axle shaft with a limited lifetime warranty. The brand states that its manufacturing is backed by ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Jeep | Grand Cherokee | Rear Left | Non-Locking; CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | Rear Left | Non-Locking; CV Axle Shaft |
