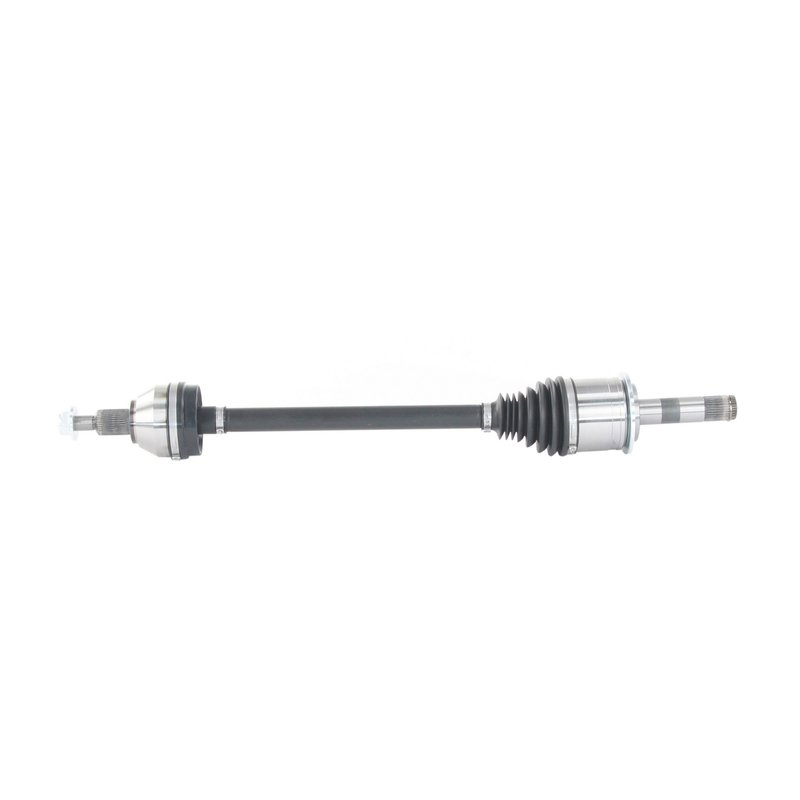

TrakMotive CH-86047 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86047 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .81 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34.875 |
| Overall Compressed Length (mm) | 887 |
| Overall Extended Length (in) | 36.69 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 2 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive CH-86047 and NCV82087 for the same application. See all 2.
Rear Left CV Axle Shaft for Jeep Cherokee
TrakMotive CH-86047 is a premium CV axle shaft for the rear left position on 2021-2022 Jeep Cherokee models with an electronic locking differential and limited slip note. This Jeep Cherokee rear left CV axle shaft is built with spline connections, thermoplastic boots, and a supplied axle nut for a direct driveline service replacement.
Key Features
- Fits 2021-2022 Jeep Cherokee, rear left
- Premium-grade CV axle shaft for driveline and axle service
- Inboard joint type: male with 32 inboard splines
- Outboard joint type: conventional with 35 outboard splines
- Thermoplastic boot material on both inboard and outboard joints
- Overall compressed length: 34.875 in. (887 mm)
- Overall extended length: 36.69 in. (933 mm)
- Axle nut included; M22x1.5 thread, 32 mm socket size, self-locking type
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive CH-86047 is a CV axle shaft for rear left driveline repair on the Jeep Cherokee. It uses spline-style shaft connections, a male inboard joint, and a conventional outboard joint to match the specified application. The axle nut is included and the assembly is built to the listed compressed and extended lengths for the 2021-2022 Jeep Cherokee rear left position. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Restores driveline transfer after a worn or damaged axle shaft
- Addresses clicking, vibration, or binding from CV joint wear
- Replaces a leaking or torn axle boot assembly
- Corrects noise or play from a failing rear left axle on Jeep Cherokee models
- Supports service after spline or joint damage in the rear driveline
Installation Notes
Verify rear left fitment before installation on 2021-2022 Jeep Cherokee vehicles with an electronic locking differential and limited slip note. Confirm axle nut thread size, socket size, and overall length against the original part before assembly. Inspect mating splines, seals, and hub surfaces during service, and follow factory torque specifications for the axle nut and related fasteners.
Quality Assurance
TrakMotive identifies this CV axle shaft as a premium part from an ISO 9001:2008 and TS 16949:2009 certified company. The manufacturer also states a limited lifetime warranty for this part.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Jeep | Cherokee | Rear Left | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
| 2021 | Jeep | Cherokee | Rear Left | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
