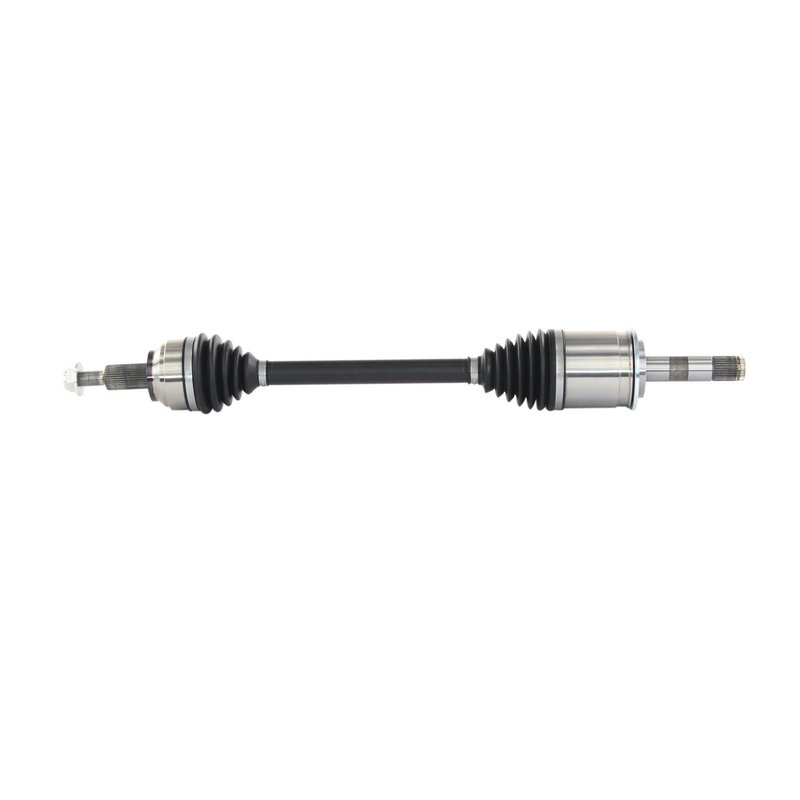

TrakMotive CH-86048 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86048 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.81 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34.5 |
| Overall Compressed Length (mm) | 877 |
| Overall Extended Length (mm) | 941 |
| Overall Extended Length(In) | 37.06 |
| Product line | CV Axle Shaft |
| Fits | Dodge and Jeep · 5 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Premium grade. Built to meet ISO 9001:2008 and TS 16949:2009 standards.
Cross-references TrakMotive CH-86048 for the same application. See all 1.
TrakMotive CV Axle Shaft CH-86048
TrakMotive CH-86048 is a premium CV axle shaft for rear left applications on select Jeep and Dodge vehicles. It is built for direct replacement service on 2021 Dodge Durango and 2018-2021 Jeep Grand Cherokee applications with the listed differential and VIN requirements.
Key Features
- Premium-grade CV axle shaft for driveline repair
- Rear left position
- 32 inboard splines and 35 outboard splines
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Thermoplastic boots on both inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- No ABS tone ring included; ABS ring tooth count is 0
Detailed Description
This TrakMotive CV axle shaft, part number CH-86048, is engineered for rear left driveline service on the 2021 Dodge Durango and 2018-2021 Jeep Grand Cherokee. It matches the listed fitment for Grand Cherokee models with Electronic Locking Differential (Limited Slip), and for the 2021 Grand Cherokee with VIN F and VIN E, 6th digit. The axle uses a spline-style shaft connection, a male inboard joint, and a conventional outboard joint for direct replacement use in the specified applications. TrakMotive’s CV Axle Shaft line focuses on replacement driveline components built to OE-style dimensions and specifications, and this unit is backed by the brand’s limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification.
Common Repair Uses
- Restores driveline function after CV joint wear or axle shaft damage
- Addresses clicking, vibration, or binding from a worn rear axle assembly
- Replaces a damaged axle on rear left Dodge Durango or Jeep Grand Cherokee applications
- Helps correct noise or play caused by failed splines or joint wear
Installation Notes and Tips
Verify rear left fitment before ordering, especially on 2021 Jeep Grand Cherokee models that require VIN F or VIN E, 6th digit, and on 2018-2020 Grand Cherokee models with Electronic Locking Differential (Limited Slip). Confirm axle nut thread size, hex size, and overall length against the original part before installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified processes. Part number CH-86048 includes TrakMotive’s limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Dodge | Durango | AWD | 6.2L | V8 | Rear Left | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
| 2021 | Jeep | Grand Cherokee | AWD | 6.2L | V8 | Rear Left | VIN F and VIN E, 6th Digit; CV Axle Shaft |
| 2020 | Jeep | Grand Cherokee | — | 6.2L | V8 | Rear Left | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
| 2019 | Jeep | Grand Cherokee | — | 6.2L | V8 | Rear Left | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
| 2018 | Jeep | Grand Cherokee | — | 6.2L | V8 | Rear Left | Electronic Locking Differential (Limited Slip); CV Axle Shaft |
