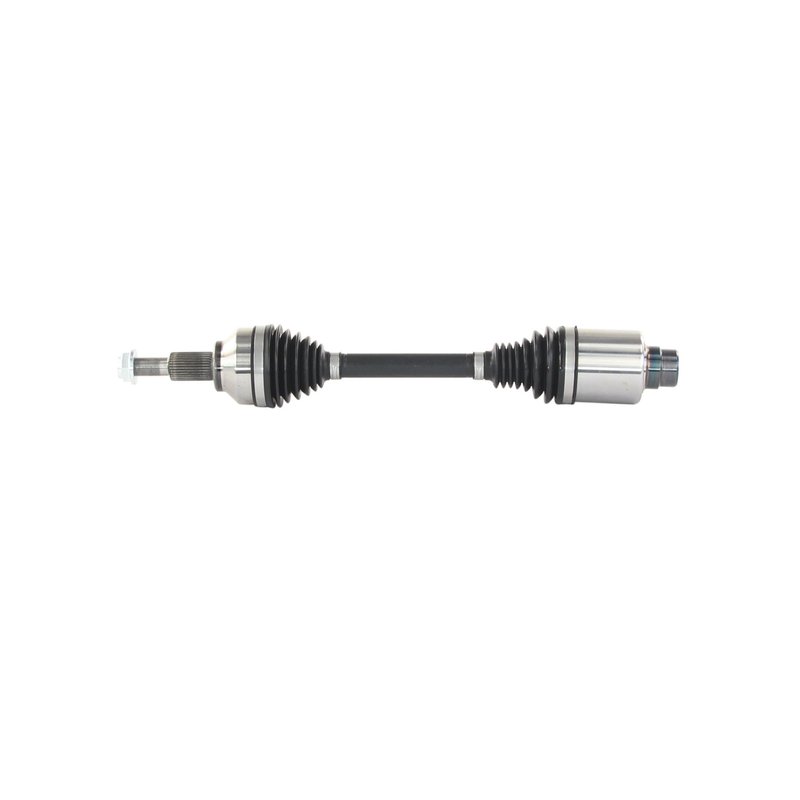

TrakMotive CH-86049 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86049 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.94 |
| Overall Compressed Length (mm) | 583 |
| Overall Extended Length (in) | 25.19 |
| Product line | AAR CV Axle Shaft |
| Fits | Dodge · 12 vehicles |
Premium grade. Built as a CV axle shaft with a self-locking axle nut included.
Thermoplastic boots. Help protect the joints from dirt and moisture.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive CH-86049 for the same application. See all 1.
TrakMotive CH-86049 CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-86049 is a front right driveline replacement for the Dodge Journey. It is built as a premium CV axle shaft with the correct spline counts, axle nut, and compressed/extended length specifications for the listed application.
Key Features
- Fits 2009-2020 Dodge Journey, front right
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: female with 28 splines
- Outboard joint type: conventional with 32 splines
- Thermoplastic boots on both inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-lock design
- Overall compressed length: 22.94 in (583 mm); extended length: 25.19 in (640 mm)
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive CH-86049 is an AAR CV axle shaft engineered for the front right position on the Dodge Journey from 2009 through 2020. The axle uses a female inboard connection with 28 splines and a conventional outboard joint with 32 splines, helping ensure the correct interface for the vehicle’s driveline layout. The included axle nut features a hex head, 32 mm socket size, M22x1.5 thread, and self-locking design. TrakMotive identifies this part as a premium-grade replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores a worn or noisy front right CV axle on a Dodge Journey
- Addresses clicking or popping during turns caused by CV joint wear
- Replaces an axle with damaged splines, boots, or joint movement
- Helps correct vibration or driveline shudder related to axle wear
- Supports repair after inspection of the intermediate shaft on Dodge Journey applications
Installation Notes and Tips
Compatible with 2009-2020 Dodge Journey front right applications. When replacing a CV axle, inspect the intermediate shaft for damage and replace it if necessary. Verify spline count, axle nut thread size, and overall axle length before installation to confirm proper application match. ABS tone ring is not included on this axle.
Quality Assurance
TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2018 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2017 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2016 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2015 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2014 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2013 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2012 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2011 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2010 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2009 | Dodge | Journey | FWD | 2.4L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
