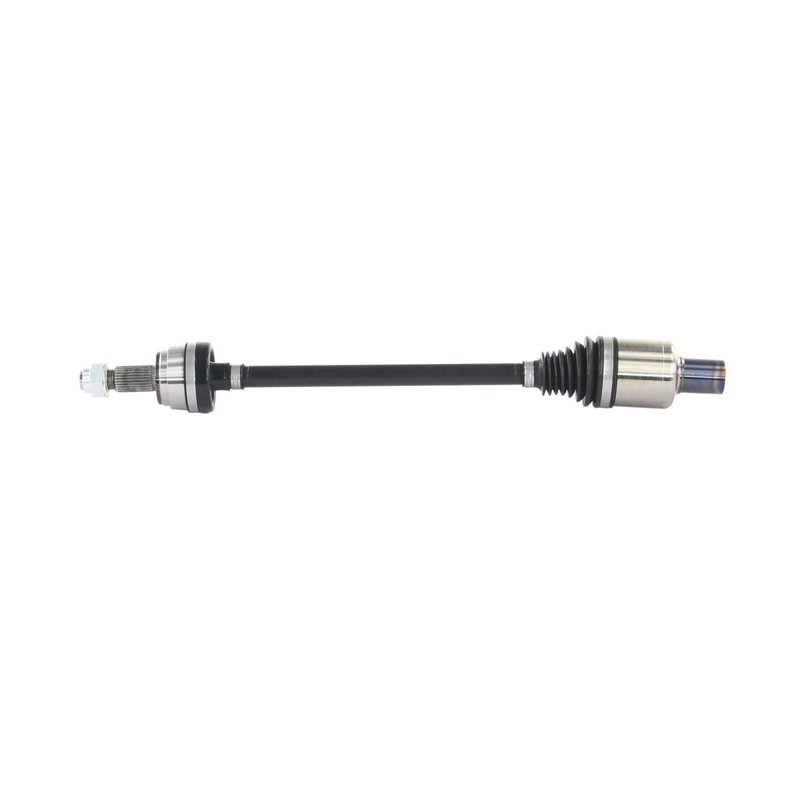

TrakMotive CH-86050 CV Axle Shaft - Rear
| Brand | TrakMotive CH-86050 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.06 |
| Axle Nut Height (mm) | 27 |
| Axle Nut Hex Size (in) | 1.44 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.75 |
| Overall Compressed Length (mm) | 679 |
| Overall Extended Length (in) | 28.875 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
OE-style replacement. CV axle shaft with a premium-grade build for dependable driveline service.
Thermoplastic boots. Help protect the joints from wear while keeping the assembly sealed.
Includes axle nut. Stake-locking nut with a 36 mm hex size for straightforward installation.
Cross-references TrakMotive CH-86050 and NCV82073 for the same application. See all 2.
Rear CV Axle Shaft for Jeep Compass
TrakMotive CH-86050 is a rear CV axle shaft for select Jeep Compass applications. It is built as a premium-grade driveline replacement with thermoplastic boots, spline-style shaft connections, and the axle nut included for the listed applications.
Key Features
- Fits 2018-2022 Jeep Compass, rear
- Fits 2017 Jeep Compass, rear, with horizontal rear door handle
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: female with 22 inboard splines
- Outboard joint type: conventional with 27 outboard splines
- Thermoplastic inboard and outboard joint boots
- Axle nut included; M24x1.5 thread, 36 mm hex size, stake locking type
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft, part number CH-86050, is engineered for rear axle replacement on Jeep Compass models listed above. The shaft measures 26.75 inches compressed and 28.875 inches extended, with spline connections at both ends for proper driveline engagement. TrakMotive positions the CV Axle Shaft line as a premium replacement option, and the manufacturer notes ISO 9001:2008 and TS 16949:2009 certified production processes.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping from a worn rear CV joint
- Vibration during acceleration from axle wear
- Grease leakage from damaged CV boots
- Excessive play in the rear driveline
- Noise caused by a failing rear axle shaft assembly
Installation Notes
Verify rear fitment by year and configuration before installation. This axle uses a hex-head axle nut with a 36 mm socket size and stake-style locking. Confirm spline counts, compressed length, and nut thread size match the original part before assembly. For 2017 Jeep Compass, use the rear application with horizontal rear door handle; for 2018-2022 Jeep Compass, use the standard-duty rear application.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that ABS axles fit non-ABS applications unless otherwise noted.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Jeep | Compass | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Jeep | Compass | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Jeep | Compass | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Jeep | Compass | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Jeep | Compass | AWD | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Jeep | Compass | AWD | Rear | With Horizontal Rear Door Handle; CV Axle Shaft |
