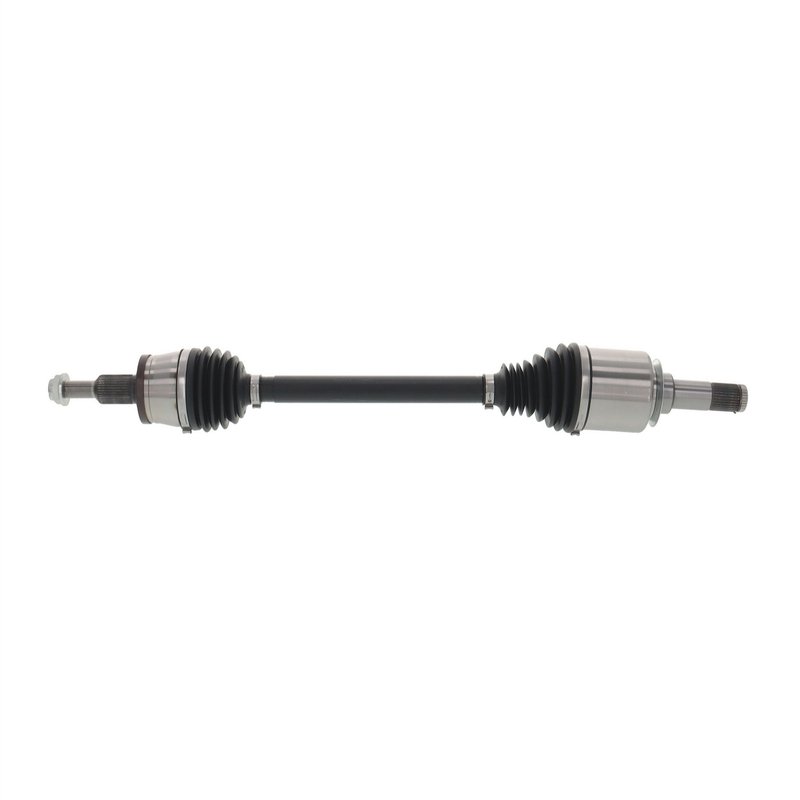

TrakMotive CH-86052 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-86052 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 32 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.06 |
| Overall Compressed Length (mm) | 815 |
| Overall Extended Length (mm) | 871 |
| Product line | CV Axle Shaft |
| Fits | Dodge · 8 vehicles |
Premium grade. Built with thermoplastic boots and a magnetic ABS tone ring.
Complete axle nut included. Self-locking hardware is ready for installation.
Spline connections. Male inboard and conventional outboard joints for dependable power transfer.
Cross-references TrakMotive CH-86052 for the same application. See all 1.
CV Axle Shaft for Rear Left Challenger
TrakMotive CH-86052 is a premium CV axle shaft for the rear left position on select 2015-2022 Dodge Challenger models. It is built for standard duty replacement service and includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2015-2022 Dodge Challenger, rear left
- Premium-grade CV axle shaft for driveline repair
- 32-spline inboard connection and 35-spline outboard connection
- Magnetic ABS ring with 48 teeth and included ABS tone ring
- Thermoplastic boots on both inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-lock design
- Overall compressed length: 32.06 in; overall extended length: 34.25 in
Product Details
This TrakMotive CV axle shaft, part number CH-86052, is specified for the rear left side of the Dodge Challenger from 2015 through 2022. It uses a male inboard joint with spline connection, a conventional outboard joint, and a magnetic ABS ring setup with 48 teeth. The axle is built to match the listed dimensions and spline counts for direct replacement service on the confirmed application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with this application-specific axle configured for the rear left Challenger platform. Part number CH-86052 is also referenced by TrakMotive under the same number for ordering and catalog matching.
What This Axle Shaft Helps Address
- Clicking or popping noises from a worn CV joint
- Vibration during acceleration from a damaged axle assembly
- ABS warning concerns related to a failed tone ring or sensor signal path
- Grease leakage from deteriorated thermoplastic boot material
- Driveline looseness caused by spline or joint wear
Installation Notes
Verify rear left fitment against the vehicle’s build details before installation. Confirm axle nut thread size, hex size, and overall axle length against the original part. Inspect the hub, seals, and mating splines for wear before installing the new axle shaft. Because this application includes ABS ring specifications, confirm the sensor and tone ring arrangement matches the vehicle configuration.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this replacement part.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Dodge | Challenger | RWD | 5.7L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
