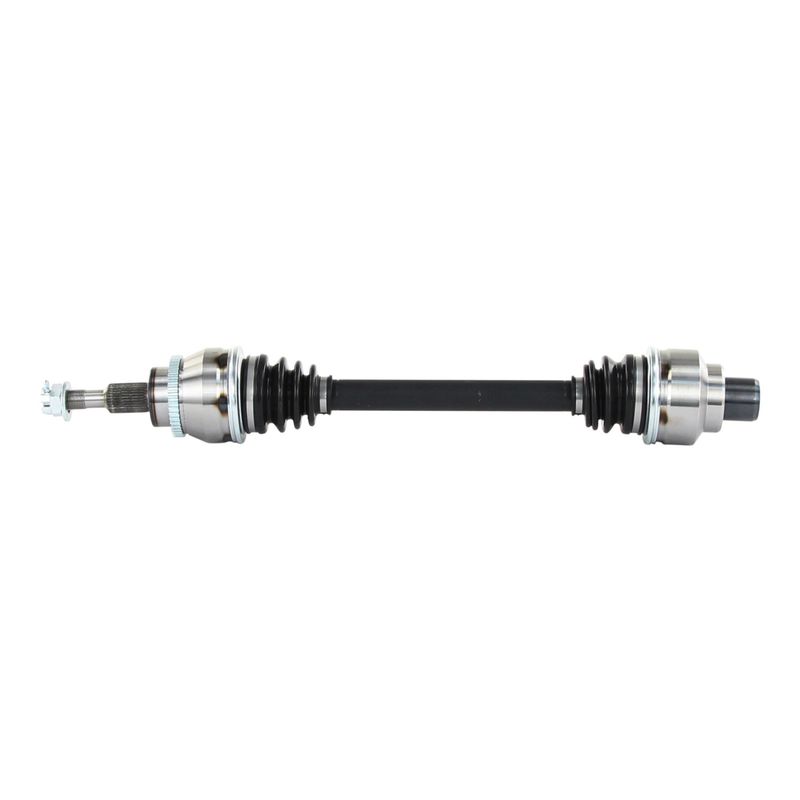

TrakMotive CH-86053 CV Axle Shaft - Rear
| Brand | TrakMotive CH-86053 |
|---|---|
| Position | Rear |
| ABS Ring Tooth Count | 45 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 7/8 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28 1/16 |
| Overall Compressed Length (mm) | 712 |
| Overall Extended Length (mm) | 795 |
| Overall Extended Length(In) | 31 5/16 |
| Product line | CV Axle Shaft |
| Fits | Dodge · 7 vehicles |
OE-style replacement. Rear CV axle shaft for listed driveline service applications.
ABS tone ring included. Toothed 45-tooth ring supports ABS-equipped setups.
Neoprene boot construction. Helps protect the joint assemblies from contamination.
Cross-references TrakMotive CH-86053 for the same application. See all 1.
Overview
TrakMotive CH-86053 is a rear CV axle shaft built for standard-duty replacement applications. It is engineered with a toothed ABS ring, neoprene boots, and spline connections for a direct driveline service part.
Key Features
- Fits rear CV axle shaft applications for Dodge Viper models listed below.
- Includes a toothed ABS ring with 45 teeth and an ABS tone ring.
- Neoprene inboard and outboard boots help protect the joint assemblies.
- Uses a 30-spline inboard connection and 31-spline outboard connection.
- Axle nut is included with M22 x 1.5 thread size and cotter pin locking type.
- Overall compressed length is 28 1/16 in. and overall extended length is 31 5/16 in.
Detailed Description
This TrakMotive CV axle shaft, part number CH-86053, is a rear replacement for 2003-2006 Dodge Viper and 2008-2010 Dodge Viper applications. The assembly uses a conventional outboard joint, a female inboard joint, and spline-style shaft connections to match the listed driveline configuration. The included axle nut and ABS tone ring support a complete service-style replacement for the specified fitment. TrakMotive CH-86053 is also identified by the same part number in interchange listings.
Common Uses
- Replacing a worn or noisy rear CV axle shaft
- Addressing torn boot damage that can expose the joint to contamination
- Restoring ABS tone ring function when the original axle is damaged
- Correcting driveline vibration or clicking associated with axle wear
Installation Notes
Fits 2003-2006 Dodge Viper, rear, and fits 2008-2010 Dodge Viper, rear. Verify spline count, axle nut thread size, and ABS configuration before installation. This part cross-references TrakMotive (e.g., CH-86053) for the same application.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this axle shaft. The company is ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Dodge | Viper | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2009 | Dodge | Viper | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Dodge | Viper | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2006 | Dodge | Viper | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2005 | Dodge | Viper | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2004 | Dodge | Viper | Rear | Standard Duty Replacement; CV Axle Shaft |
| 2003 | Dodge | Viper | Rear | Standard Duty Replacement; CV Axle Shaft |
