OE Quality
60-Day Returns
TrakMotive

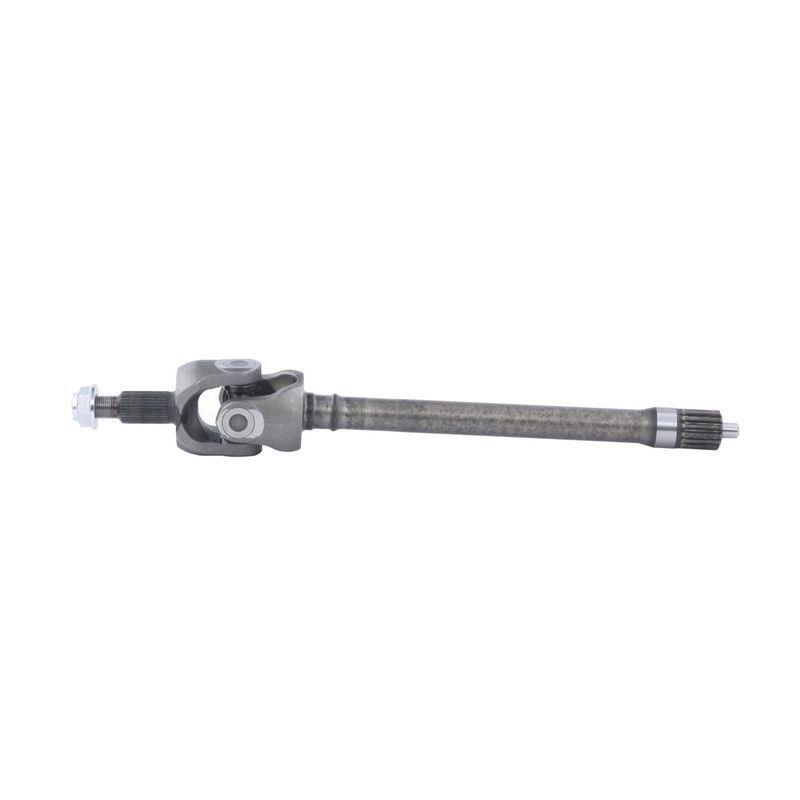

CV Axle ShaftTrakMotive CH-86058 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86058 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x2 |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 15 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Cross joint |
| Overall Compressed Length (in) | 25.875 |
| Overall Compressed Length (mm) | 657 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Cross-references TrakMotive CH-86058 for the same application. See all 1.
$313.75Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
TrakMotive CH-86058 CV Axle Shaft - Front Right
This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Jeep | Wrangler | 4WD | Front Right | opt DHN (command-trac, NV241, part time system); CV Axle Shaft |
| 2022 | Jeep | Wrangler | 4WD | Front Right | opt DHN (command-trac, NV241, part time system); CV Axle Shaft |
| 2021 | Jeep | Wrangler | 4WD | Front Right | opt DHN (command-trac, NV241, part time system); CV Axle Shaft |
| 2020 | Jeep | Wrangler | 4WD | Front Right | LHD; CV Axle Shaft |
| 2019 | Jeep | Wrangler | 4WD | Front Right | LHD; CV Axle Shaft |
| 2018 | Jeep | Wrangler | 4WD | Front Right | opt DHN (command-trac, NV241, part time system); CV Axle Shaft |
| No rows match your filter. | |||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — CH-86058
