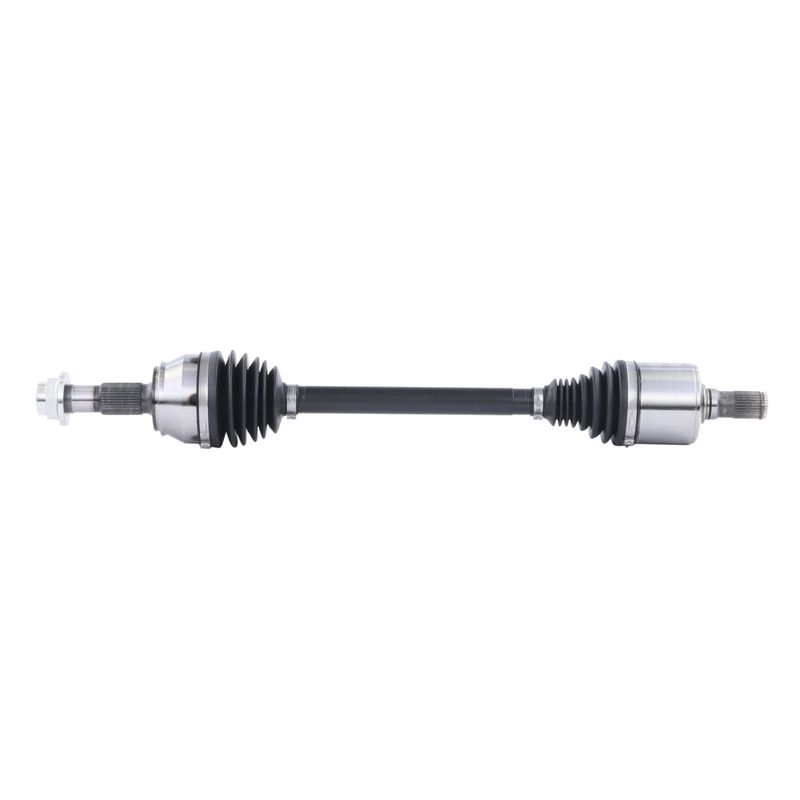

TrakMotive CH-86060 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-86060 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.25 |
| Axle Nut Height (mm) | 31 |
| Axle Nut Hex Size (in) | 1.81 |
| Axle Nut Hex Size (mm) | 46 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 2.06 |
| Axle Nut Length (mm) | 53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M33x1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30.125 |
| Overall Compressed Length (mm) | 765 |
| Overall Extended Length (in) | 32.19 |
| Overall Extended Length (mm) | 818 |
| Product line | AAR CV Axle Shaft |
| Fits | Ram · 15 vehicles |
OE-style replacement. AAR CV axle shaft for direct-fit service on listed applications.
Included axle nut. Stake-locking nut with M33x1.5 thread and 46 mm hex size.
Certified manufacturing. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive CH-86060 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The TrakMotive CH-86060 is an AAR CV axle shaft built for direct replacement in select Ram ProMaster applications. It is specified for front left fitment and uses a spline-style connection with a conventional outboard joint for the listed vehicles.
This CH-86060 axle shaft is a fitment-based replacement for Ram ProMaster 1500, Ram ProMaster 2500, and Ram ProMaster 3500 applications. It is engineered around the OE AAR design noted in the fitment data.
Key Features
- AAR CV axle shaft for select front left applications
- Spline inboard and outboard shaft connections
- Conventional outboard joint design
- Includes axle nut with stake locking type
- ABS tone ring not included
- ISO 9001:2008 and TS 16949:2009 certified manufacturing
Detailed Description
TrakMotive CH-86060 is a CV axle shaft for 2022-2026 Ram ProMaster 1500, 2022-2026 Ram ProMaster 2500, and 2022-2026 Ram ProMaster 3500 front left applications. The axle uses 30 inboard splines and 35 outboard splines, with an overall compressed length of 30.125 inches and an extended length of 32.19 inches. The included axle nut uses an M33x1.5 thread, a 46 mm hex size, and a stake locking design.
The AAR CV Axle Shaft line is positioned as a direct-fit replacement solution for applications that require the OE-style axle configuration noted in the fitment data. CH-86060 is identified by part number CH-86060 and cross-references TrakMotive CH-86060 for the same application.
What It Is Used For
- Replacing a worn or damaged front left CV axle shaft
- Restoring spline engagement at the inboard and outboard connections
- Addressing driveline vibration or clicking caused by axle wear
- Correcting fitment issues on OE AAR-design applications
- Replacing a unit with missing or damaged axle nut hardware
Installation Notes and Tips
Verify front left fitment before installation and confirm the axle matches the listed Ram ProMaster 1500, ProMaster 2500, or ProMaster 3500 application. This axle is specified for non-ABS applications unless otherwise noted, and the ABS tone ring is not included. Confirm spline count, compressed length, and axle nut thread size against the original part before installation.
Quality Assurance
TrakMotive lists this axle under its AAR CV Axle Shaft line and states that the product is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company. A limited lifetime warranty is provided by the manufacturer.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2026 | Ram | ProMaster 1500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2026 | Ram | ProMaster 2500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2026 | Ram | ProMaster 3500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2025 | Ram | ProMaster 1500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2025 | Ram | ProMaster 2500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2025 | Ram | ProMaster 3500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2024 | Ram | ProMaster 1500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2024 | Ram | ProMaster 2500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2024 | Ram | ProMaster 3500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Ram | ProMaster 1500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Ram | ProMaster 2500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Ram | ProMaster 3500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Ram | ProMaster 1500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Ram | ProMaster 2500 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Ram | ProMaster 3500 | Front Left | OE AAR design; AAR CV Axle Shaft |
