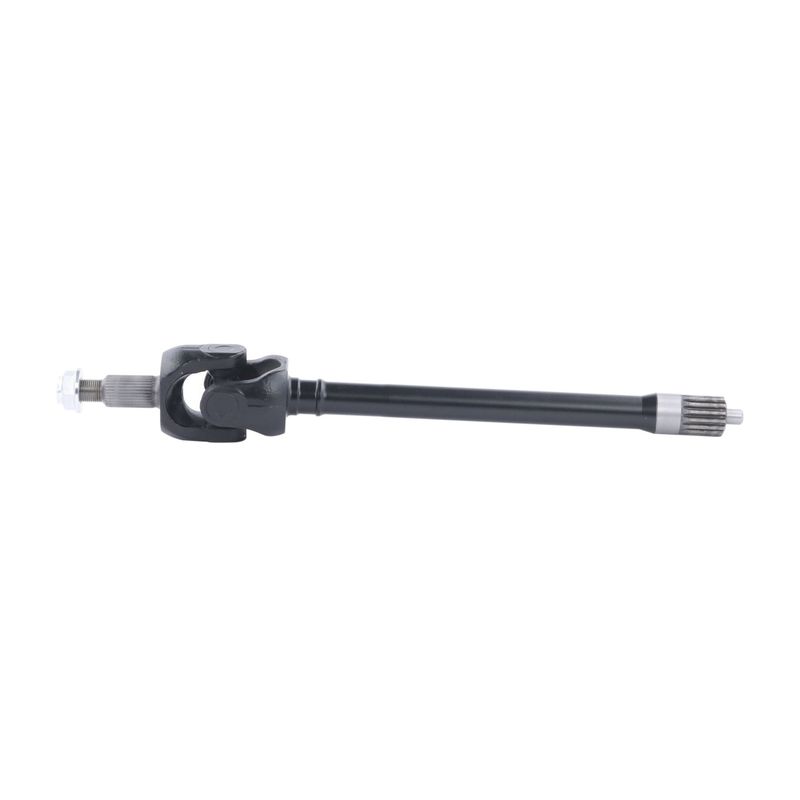

CV Axle ShaftTrakMotive CH-86061 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-86061 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x2 |
| Number Of Inboard Splines | 15 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Cross joint |
| Overall Compressed Length (in) | 26.56 |
| Overall Compressed Length (mm) | 675 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 9 vehicles |
Cross-references TrakMotive CH-86061 for the same application. See all 1.
$231.87Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options
TrakMotive CH-86061 CV Axle Shaft - Front Right
This part fits 9 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Jeep | Gladiator | Front Right | With Locking Differential; CV Axle Shaft |
| 2023 | Jeep | Gladiator | Front Right | With Locking Differential; CV Axle Shaft |
| 2023 | Jeep | Wrangler | Front Right | With 210 mm (8.27" Axle, Opt DJF, Wide Front); CV Axle Shaft |
| 2022 | Jeep | Gladiator | Front Right | With Locking Differential; CV Axle Shaft |
| 2022 | Jeep | Wrangler | Front Right | With 210 mm (8.27" Axle, Opt DJF, Wide Front); CV Axle Shaft |
| 2021 | Jeep | Gladiator | Front Right | With Locking Differential; CV Axle Shaft |
| 2021 | Jeep | Wrangler | Front Right | With 210 mm (8.27" Axle, Opt DJF, Wide Front); CV Axle Shaft |
| 2020 | Jeep | Gladiator | Front Right | With Locking Differential; CV Axle Shaft |
| 2020 | Jeep | Wrangler | Front Right | With LHD; CV Axle Shaft |
| No rows match your filter. | ||||
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — CH-86061
