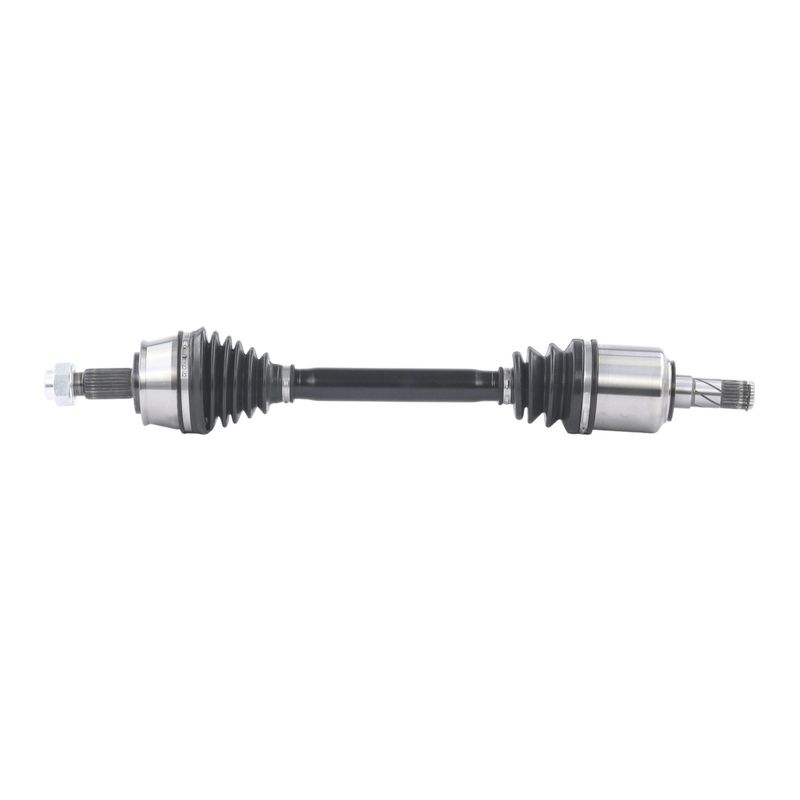

TrakMotive CH-86065 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-86065 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.06 |
| Axle Nut Height (mm) | 26 |
| Axle Nut Hex Size (in) | 1.44 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 42 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.94 |
| Overall Compressed Length (mm) | 634 |
| Overall Extended Length (in) | 27 |
| Overall Extended Length (mm) | 686 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep · 4 vehicles |
OE-style replacement. Application-specific CV axle shaft for driveline service.
Neoprene boot design. Helps protect the joints with durable inboard and outboard boot material.
Included axle nut. Uses an M24 x 1.5 thread with stake locking for proper hub service.
Cross-references TrakMotive CH-86065 for the same application. See all 1.
Overview
TrakMotive CH-86065 is a premium CV axle shaft for select Jeep Renegade applications. It is built as an AAR CV axle shaft with a neoprene boot design, included axle nut, and non-ABS configuration details that matter when matching the correct driveline part.
Fits 2015-2018 Jeep Renegade, front left. This part number is CH-86065.
Key Features
- Premium-grade CV axle shaft for driveline replacement
- Neoprene inboard and outboard boots for joint protection
- 25 inboard splines and 27 outboard splines for application-specific fitment
- Hex axle nut included with M24 x 1.5 thread size and stake locking type
- Non-ABS configuration with no ABS tone ring included
Product Details
The CH-86065 CV axle shaft is engineered for the front left position on 2015-2018 Jeep Renegade models. Its AAR CV axle shaft design uses a conventional outboard joint, a male inboard joint, and spline-based shaft connections to match the specified driveline layout. The axle measures 24.94 inches compressed and 27 inches extended, helping confirm correct replacement length before installation. This part number is CH-86065.
TrakMotive’s AAR CV axle shaft line focuses on application-specific driveline replacement parts. For this Jeep Renegade fitment, CH-86065 is listed for non-ABS applications unless otherwise noted, and the included axle nut details support proper hardware matching during service.
Common Replacement Uses
- Worn or noisy CV axle shaft assembly
- Clicking or vibration during acceleration or turning
- Boot damage that has led to joint contamination
- Axle spline or joint wear affecting driveline operation
Installation Notes
Verify the front left fitment, spline count, axle nut thread size, and overall length before installation. Confirm whether the vehicle uses a non-ABS configuration, since this axle does not include an ABS tone ring. Use the specified axle nut style and thread size when servicing the hub connection.
Quality Assurance
TrakMotive lists this part under its AAR CV Axle Shaft line and identifies the product as a premium-grade replacement. The manufacturer states a limited lifetime warranty and notes ISO 9001:2008 and TS 16949:2009 certified company standards.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Jeep | Renegade | AWD | 1.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Jeep | Renegade | AWD | 1.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2016 | Jeep | Renegade | AWD | 1.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2015 | Jeep | Renegade | AWD | 1.4L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
