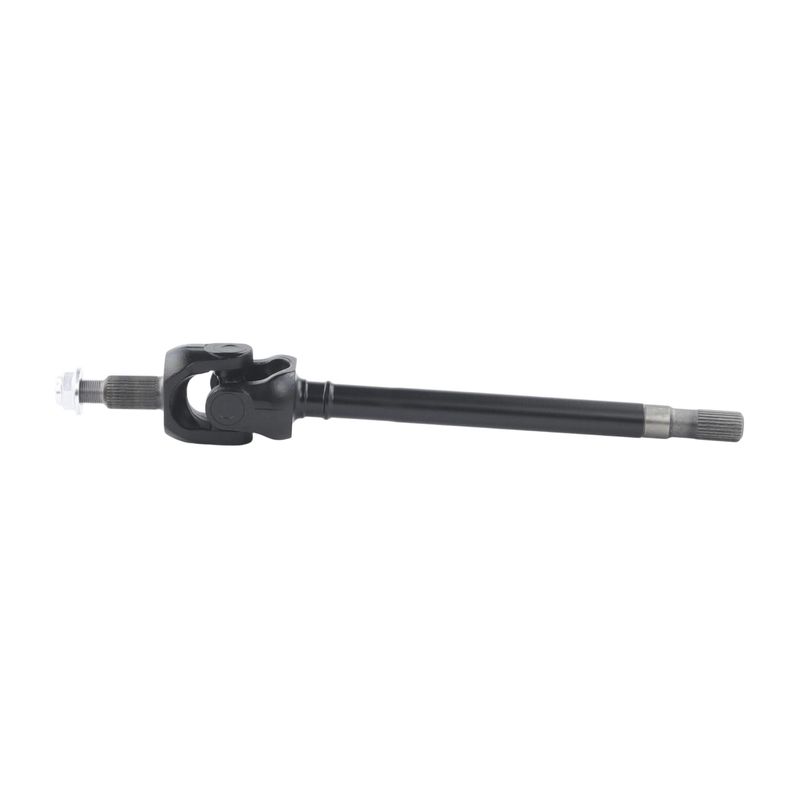

TrakMotive CH-86066 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-86066 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 41 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.63 |
| Overall Compressed Length (mm) | 651 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Premium-grade design. Built as a CV axle shaft for driveline service and replacement.
Non-ABS configuration. Specified without an ABS tone ring for matching the correct application.
Included axle nut. Supplied with a self-locking nut and M24x2 thread size.
Cross-references TrakMotive CH-86066 for the same application. See all 1.
Overview
TrakMotive CH-86066 is a premium CV axle shaft for Jeep Wrangler front left applications. It is built for non-ABS use and includes a self-locking axle nut for a direct replacement setup.
This CH-86066 axle shaft is specified for Jeep Wrangler fitments from 2018 through 2023, with application notes that vary by model year and drivetrain configuration. The design uses conventional outboard joint and shaft connections for a straightforward driveline service part.
Key Features
- Premium CV axle shaft for driveline repair
- ABS tone ring not included for non-ABS applications
- Includes axle nut with M24x2 thread size and 36 mm hex
- 27 inboard splines and 32 outboard splines
- Overall compressed length: 25.63 in (651 mm)
- Conventional outboard joint and shaft connection style
Detailed Description
TrakMotive CH-86066 is a CV axle shaft engineered for Jeep Wrangler front left service where the original axle has worn splines, joint noise, or driveline vibration. The axle is configured with a hex-head, self-locking axle nut and is supplied with the nut already specified in the product data. Its non-ABS design makes it appropriate for applications that do not use an ABS tone ring.
Fitment includes 2018 Jeep Wrangler JL body, 2019-2020 Jeep Wrangler with specific drivetrain notes, and 2021-2023 Jeep Wrangler standard duty replacement applications. This part cross-references TrakMotive CH-86066 for the same application.
Use CH-86066 when servicing a Jeep Wrangler CV axle shaft that needs the correct spline count, compressed length, and non-ABS configuration. The part number CH-86066 is also useful when matching the axle nut thread and socket size during replacement planning.
What It Is Used For
- Replacing a worn or noisy CV axle shaft
- Restoring driveline engagement after spline wear
- Addressing vibration caused by a damaged axle assembly
- Matching a non-ABS axle configuration
- Servicing a Jeep Wrangler front left driveline application
Installation Notes and Tips
Verify year, body style, and drivetrain notes before ordering, especially for 2019-2020 Jeep Wrangler applications with optional system codes. Confirm the axle nut thread size, hex size, and spline counts against the original part before installation. The product data specifies a non-ABS axle shaft, so it should be matched to applications without an ABS tone ring requirement.
Quality Assurance
TrakMotive identifies this axle shaft as a premium-grade component and states that the product line is backed by a limited lifetime warranty. The company also notes ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Jeep | Wrangler | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Jeep | Wrangler | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Jeep | Wrangler | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Jeep | Wrangler | Front Left | 186mm (7.32" axle, opt DJD), opt DHN (command-trac, NV241, part time system); CV Axle Shaft |
| 2019 | Jeep | Wrangler | Front Left | 186mm (7.32" axle, opt DJD), opt DHN (command-trac, NV241, part time system); CV Axle Shaft |
| 2018 | Jeep | Wrangler | Front Left | JL body; CV Axle Shaft |
